DESCRIPTION

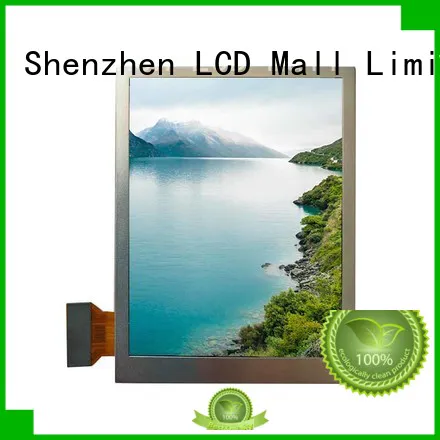

LM035GV09NS is a 3.5 inch IPS with BLANVIEW tech.The model is featured with SPI+18BIT RGB interface;The module is sunlight readable with low consumption.It can be used in embedded systems, POS,industrial device, security and hand-held equipment which require display in high quality and colorful image.
DRAWING
LCM Mechanical Diagram
| Pin No. | Symbol | Description |
| 1 | DE | Data input enable |
| 2~4 | GND | Power Ground |
| 5 | NC | No connect |
| 6~11 | R0~R5 | Red data |
| 12~17 | G0~G5 | Green data |
| 18~23 | B0~B5 | Blue data |
| 24 | SCL | Serial clock input |
| 25 | SDA | Data output pin in serial interface |
| 26 | /CS | Chip select pin |
| 27 | DOTCLK | Dot-clock signal and oscillator source |
| 28 | /RESET | System reset pin |
| 29 | HSYNC | Horizontal sync signal |
| 3 | VSYNC | Vertical sync signal |
| 31~32 | VCC | Power supply |
| 33 | GND | Power Ground |
| 34 | LED_A | Anode of LED backlight |
| 35 | LED_K | Cathode of LED backlight |
| 36 | GND | Power Ground |
| 37~40 | NC | No connect |
Item | Dimension | Unit | ||||||
| Size | 3.5inch | inch | ||||||
| Dot Matrix | 480*RGB*640(TFT) | dots | ||||||
| Module dimension | 64*85*3 | mm | ||||||
| Active area | 53.28*71.04 | mm | ||||||
| Dot pitch | 0.037*0.111 | mm | ||||||
| LCD type | TFT/BLANVIEW NORMALLY BLACK | |||||||
| View Direction | All | |||||||
| Gray Scale Inversion Direction | ||||||||
| Backlight Type | LED, Normally White | |||||||
| LCD Controller IC | ILI9806E-2 | |||||||
| Pcap Controller IC | ||||||||
| LCD Interface | SPI+18BIT RGB | |||||||
| Pcap Interface | ||||||||
| Touch Panel | ||||||||
| Surface | ANTI-GLARE | |||||||
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VCC | 2.5 | 2.8 | 3.3 | V | |
| Supply current (One LED) | ILED | 20 | mA |
