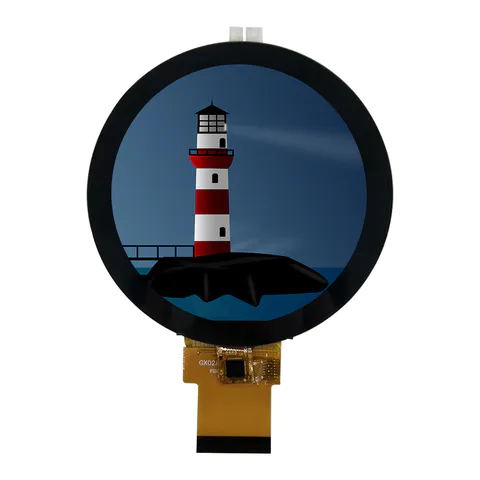

2.8 Inch Round IPS TFT LCD LED Display 480x480 Capacitive Touch SPI RGB Interface Module 255cd/m2 Brightness

2.8 Inch Round IPS TFT LCD LED Display 480x480 Capacitive Touch SPI RGB Interface Module 255cd/m2 Brightness

Storage Temp
-20℃~+70℃
Operating Temp
-20℃~+70℃
Size (inch)
2.8 inch
LCM OD sizes
85x85x3.5mm
LCM Interface
SPI + RGB
LCD Driver IC
ST7701SN
LCD Mall Model No
LMT028HV005C-FC029
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Mounting Type
Connector
Screen Size
2.8 inch
Communication Interface
SPI + RGB
Driver Ic
ST7701SN
LCD Type
TFT
Direction
All
Interface
SPI + RGB
Driver IC
ST7701SN
Outline Dimension
85x85x3.5mm
Active Area
70.13x70.13mm
Operating Temperature
-20~+70℃
Luminance
255cd/m2
Touch panel
Capacitive touch
Resolution
480x480
