      1.14 Inch Screen Panel 135x240 LCD Display 400cd/m2 TFT LCD Module for Smart Watch

      1.14 Inch Screen Panel 135x240 LCD Display 400cd/m2 TFT LCD Module for Smart Watch

      Storage Temp
      -30°C~+80°C
      Backlight
      3 chip white LED,3PVF=3.0-3.1V.IF=60mA
      Surface Luminance
      400cd/m2 (TYP)
      Driver IC
      ST7789V3
      Operating Temp
      -20°C~+70°C
      Resolution
      135*240
      LCD TYPE
      1.14 inch TFT/Transmissive
      Viewing Direction
      ALL
      LCM Interface
      4-Lane SPl
      LCD Mall Model No
      LMT011QV002C
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

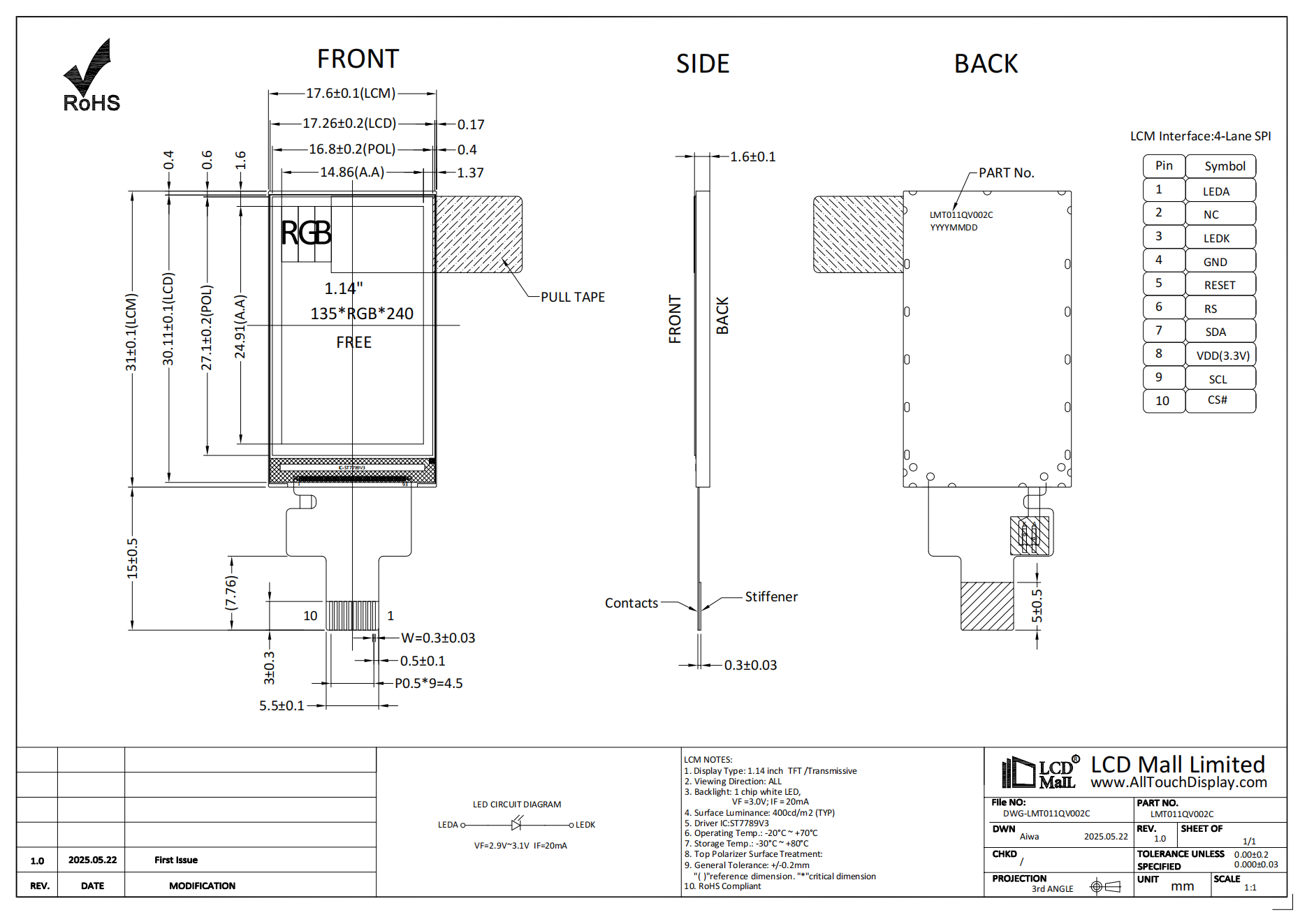

      LCM (W x H x D)(mm)
      17.6(H) x31(V) x1.6(T)
      Active Area(mm)
      14.86(H)x 24.91(V)
      Product name
      1.14 Inch Screen Panel 135x240 LCD Display 400cd/m2 TFT LCD Module for Smart Watch
      Size
      1.14inch
      Resolution
      135×240
      Interface
      4-Line SPI
      Brightness
      400cd/m2
      Viewing Angle
      ALL
