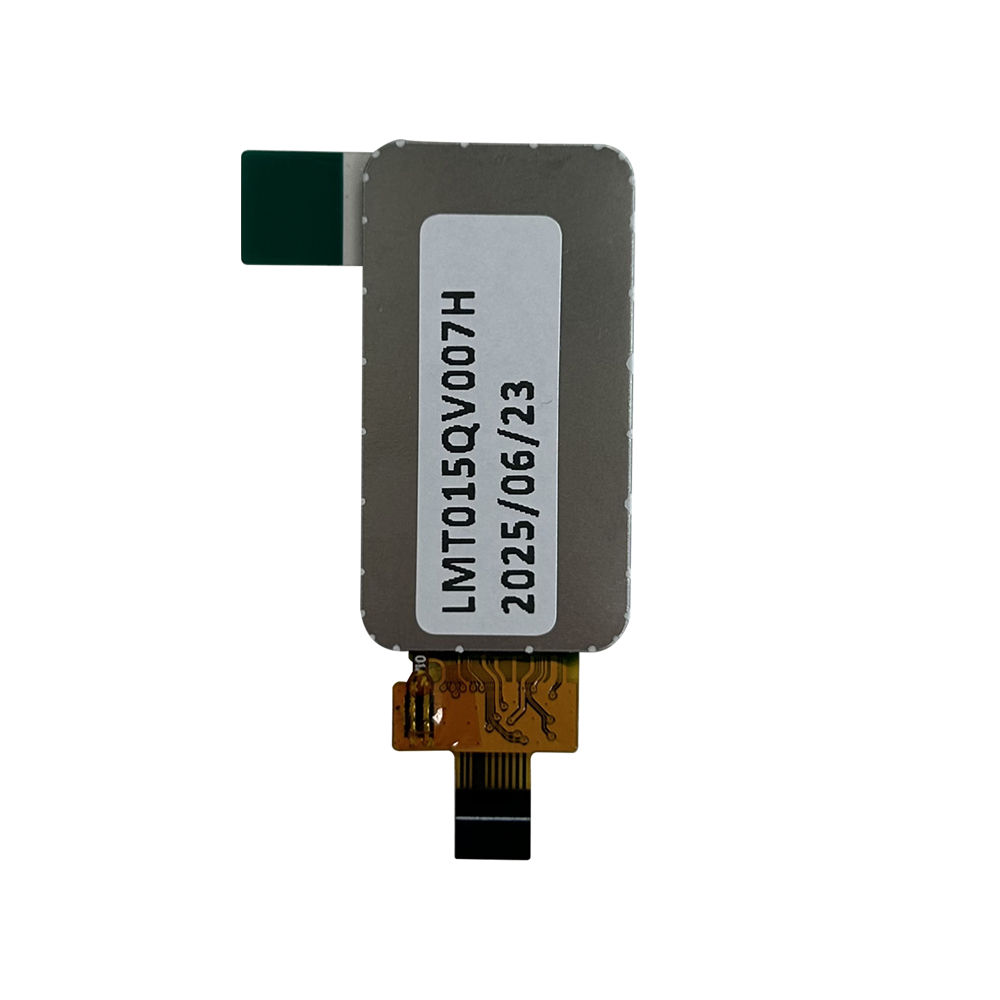

      1.45 Inch 172(RGB)x320 Color Display Screen 262K Colors 4-Line SPI Interface TFT LCD Screen LCD Module for Smart Watch

      1.45 Inch 172(RGB)x320 Color Display Screen 262K Colors 4-Line SPI Interface TFT LCD Screen LCD Module for Smart Watch

      Storage Temp
      -30°C~+80°C
      Backlight
      3 chip white LED,3PVF=3.0-3.1V.IF=60mA
      Surface Luminance
      500cd/m2 (TYP)
      Driver IC
      ST7789T3
      Operating Temp
      -20°C~+70°C
      Resolution
      172*360
      LCD TYPE
      1.45 inch TFT/Transmissive
      Viewing Direction
      Full Viewing
      LCM Interface
      4-Lane SPl
      LCD Mall Model No
      LMT011QV002C
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

      Product name
      1.45 Inch 172(RGB)x320 Color Display Screen 262K Colors 4-Line SPI Interface TFT LCD Screen LCD Module for Smart Watch
      Size
      1.45 inch
      Resolution
      172*320
      Interface
      4-Line SPI
      Brightness
      500cd/m2
      Viewing Angle
      Full Viewing

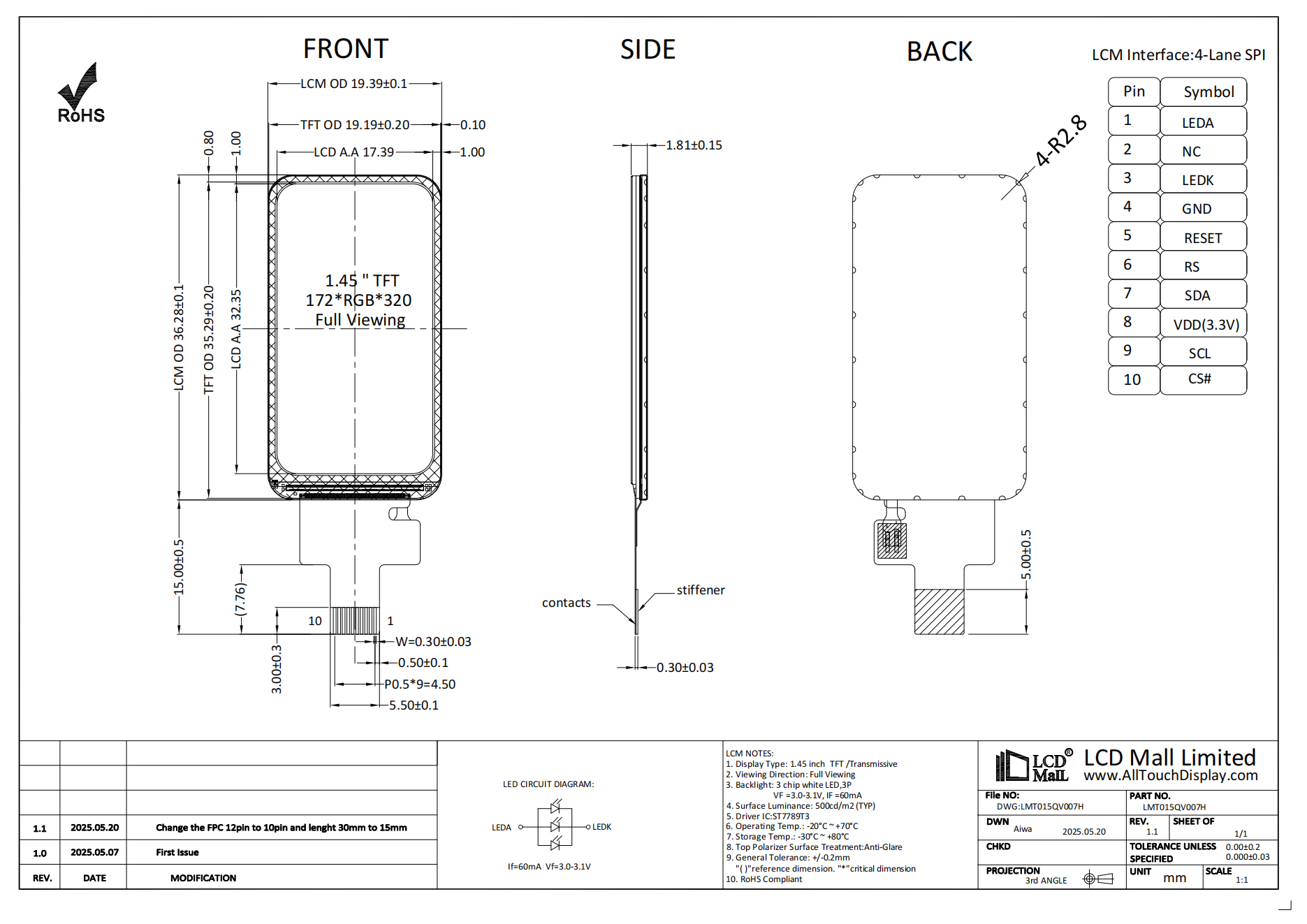

      LMT015QV007H V1.1_01.png
