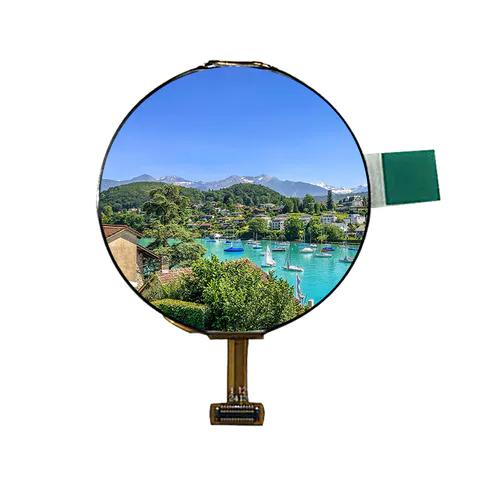

1.508" AMOLED Display 466*466 Resolution 1.5 Inch AMOLED Panel Screen 24PIN QSPI Interface Oncell Touch AMOLED Module

Storage Temp: -30 °C~+80°C

Surface Luminance: 400 cd/㎡

Driver IC: CO5300

Operating Temp: -20 °C~+70°C

Resolution: 466x466

Size (inch): 1.508 Inch

LCM OD sizes: 40.71(H)x40.94(V)x 0.78(T)MM

LCM Interface: QSPI

LCD Mall Model No: LMA015VG001C-SN

Price: Get Latest Price

Get the latest price

Quantity Needed：

Pieces

E-mail：

Inquire Online

Mounting Type

Panel Mounting

Screen Size

40.71(H)x40.94(V)x 0.78(T)MM

Communication Interface

QSPI

Model Number

LMA015VG001C-SN

Size

1.508 inch

Resolution

466x466

Interface

QSPI

Brightness

400 cd/㎡

Touch

Oncell

Driver IC

CO5300

Application

Smart Watch

Operating Temperature

-20 °C~+70°C

Warranty

1 Year

2. Target Applications

This module is engineered for space-constrained, style-conscious, and power-sensitive devices:

Wearable Technology: Smartwatches, fitness/health trackers, smart rings.
Portable Medical Devices: Compact health monitors, wearable diagnostics.
Smart Home IoT: High-end thermostat interfaces, smart lock panels, sensor displays.
Consumer Electronics: Advanced remote controls, premium accessory displays.
Industrial HMI: Compact status panels for handheld instruments.

3. Design Support & Customization

We provide support to integrate this advanced display into your product seamlessly.

Technical Documentation: Complete datasheet, initialization sequence, and QSPI protocol guide.
Interface Adapters: Available evaluation/breakout boards for rapid prototyping.
Customization Options (MOQ applies): Flex cable length/adapter, connector type, cover glass customization (2.5D, anti-glare, anti-fingerprint coating), and bonding options.
Firmware Reference: Basic driver code for popular MCU platforms.

4. Frequently Asked Questions (FAQ)

Q1: What is the advantage of On-Cell touch?
A: On-Cell integrates the touch sensor into the display panel itself, leading to a thinner overall module, better optical performance (less parallax), and often a simpler supply chain.

Q2: Is this module suitable for an "Always-On Display" feature?
A: Yes, absolutely. AMOLED is ideal for AOD because only a few pixels need to be lit, consuming minimal power while showing time or notifications on a black background.

Q3: Can you provide a driver for [MCU Platform, e.g., ESP32, STM32, Nordic nRF52]?
A: We provide basic initialization code and communication examples. Full graphics libraries (LVGL, etc.) are typically managed at the system level, but we can offer integration guidance.

Q4: What is the minimum order quantity (MOQ)?
A: MOQ for standard modules is low. Contact us for specific quantities and pricing for custom options.

Q5: What is included in the module?
A: The module includes the AMOLED panel with integrated On-Cell touch, connected via a 24-pin FPC. A default cover glass is attached (can be customized).
