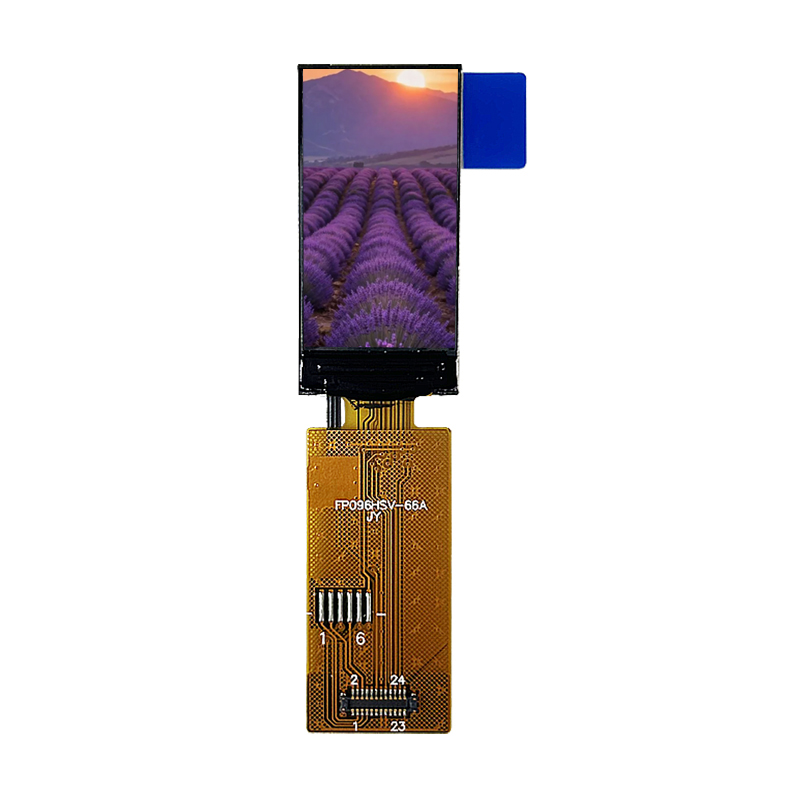

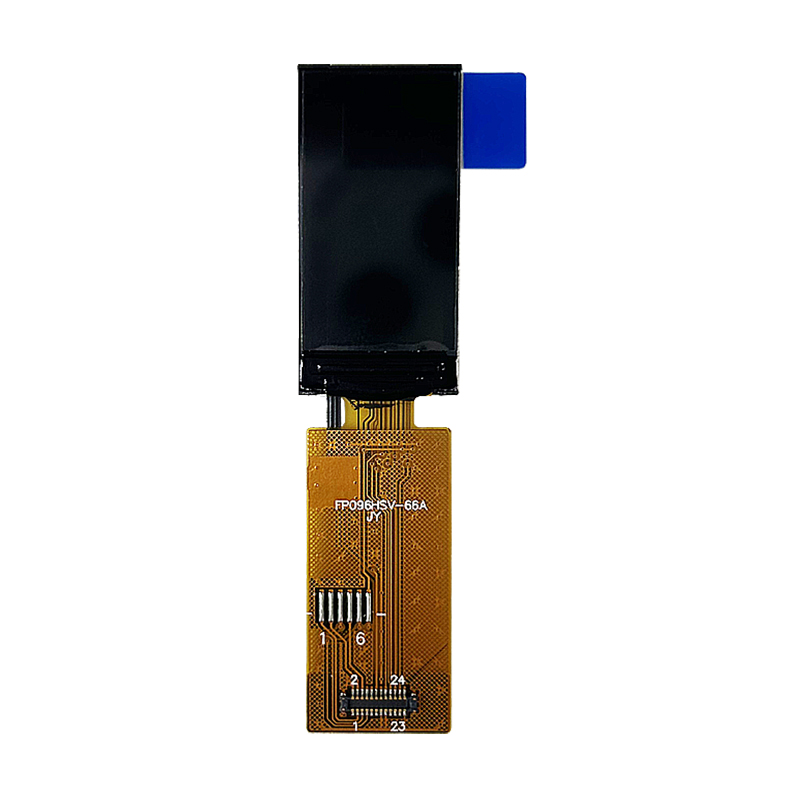

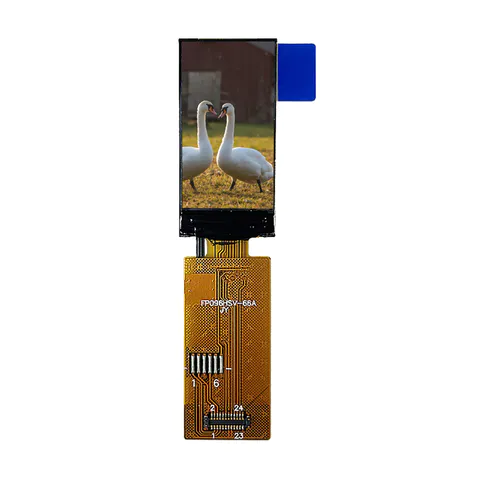

The LMT010QL005C is an ultra-compact 0.96-inch TFT LCD module engineered for space-constrained embedded applications requiring vivid color display and flexible interfacing. Featuring an 80×160 pixel resolution and supporting both 3-wire and 4-wire SPI serial interfaces, this mini display delivers efficient data transfer while conserving GPIO pins on your host controller. Driven by the ST7735S controller IC, it achieves a bright 400 cd/m² luminance for clear visibility in various lighting conditions. Its wide operating temperature range and ultra-slim profile make it ideal for portable and wearable devices.

Key Specifications

Product Details

High-Brightness TFT Display

Despite its miniature size, the 0.96-inch TFT panel delivers crisp, colorful visuals with 80×160 resolution. The 400 cd/m² brightness ensures screen content remains readable even in moderately bright environments, suitable for portable and handheld applications.

Flexible SPI Interface

The module supports both 3-wire and 4-wire SPI serial interfaces, offering exceptional flexibility for system integration. The 4-wire mode provides separate data/command selection (DC pin), while the 3-wire mode reduces pin count further for ultra-compact designs. This serial interface consumes minimal I/O resources compared to parallel alternatives, making it compatible with a wide range of microcontrollers including 8051, PIC, AVR, Arduino, ARM, and ESP series.

Wide Viewing Angle

The display features an all-direction viewing capability with typical angles of 80° top/bottom/left/right, ensuring consistent image quality from various perspectives. This makes it suitable for wearable devices and handheld instruments where the screen orientation may vary.

Robust Environmental Performance

Engineered for reliability, the module operates across a broad temperature range of -20°C to +70°C and can be stored between -30°C and +80°C. This industrial-grade temperature tolerance ensures stable performance in diverse environments.

Ultra-Compact Mechanical Design

With outline dimensions of just 13.5 × 27.95 × 1.5 mm and an active area of 10.8 × 21.65 mm, this module is one of the most space-efficient TFT displays available. Its slim 1.5mm profile enables integration into the thinnest portable devices. The 1:2 aspect ratio in portrait mode is ideal for wearable and medical applications.

ST7735S Controller Integration

The built-in ST7735S driver IC supports 16-bit (RGB565) color depth and simplifies development by handling all display timing and control functions. The IC is widely supported across development platforms with extensive community resources available.

Touch Panel & ODM Support

Customization options are available including touch panel integration (resistive or capacitive), FPC cable length and interface definition, and mechanical modifications. ODM support enables tailored solutions for specific product requirements.

Applications

• Wearable Devices – Smartwatches, fitness trackers, smart bands

• Medical Equipment – Portable patient monitors, oximeter displays

• Handheld Instruments – Multimeters, testing and measurement devices

• Industrial Control – Compact HMI panels and equipment interfaces

• IoT Devices – Smart home controllers, sensor display terminals

• Consumer Electronics – Portable audio players, mini game consoles
