      Wide Temperature Touch Screen 7 Inch LCD Display 800x480 TFT LCD Screen 50-Pins RGB Interface LCD Module with CTP

      Wide Temperature Touch Screen 7 Inch LCD Display 800x480 TFT LCD Screen 50-Pins RGB Interface LCD Module with CTP

      Backlight
      LED Display Screen
      Resolution
      800 x 480
      Size (inch)
      7 inch
      LCD TYPE
      7-inch a-Si TFT LCD
      LCM OD sizes
      164.9 x 100 x 7.45 mm
      Viewing Direction
      12 o'clock Viewing Direction
      LCM Interface
      RGB-24bit
      LCD Mall Model No
      LMT070WV013C-DC034
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：


      7" TFT LCD Display with Capacitive Touch Screen

      About our product
      This 7-inch TFT LCD display integrates a high-brightness a-Si TFT panel with a durable capacitive touch screen, delivering full-color performance (16.7M colors) at 800x480 resolution. Designed for industrial and interactive applications, the module uses a standard 24-bit RGB interface and a reliable connector-type connection, ensuring easy integration with most mainboards and system-on-chip platforms.


      • High-Resolution WVGA Display – 800(H) x 480(V) pixels, 16.7M true colors, 24-bit RGB interface.

      • Integrated Capacitive Touch Screen – Built-in CTP with FT5426-003 driver IC, supports multi-touch, fast response, and 6H surface hardness for scratch resistance.

      • Industrial-Grade Mechanical Design – Compact outline: 164.9 x 100 x 7.45 mm; active area: 154.08 x 85.92 mm.

      • Optimized Optical Performance – Normally white display mode, 12 o'clock viewing direction, vertical stripe pixel configuration.


      • ParameterValue
        Display Type7-inch a-Si TFT LCD
        Resolution800 x 480 pixels
        InterfaceRGB-24bit (Connector)
        Display Colors16.7 million
        Pixel Pitch0.192 (H) x 0.1805 (V) mm
        Pixel ConfigurationRGB Vertical Stripe
        Display ModeNormally White
        Viewing Direction12 o'clock
        LCD Driver ICEK9713CA / EK73002ACGB
        Capacitive Touch ICFT5426-003
        Surface Hardness6H
        Module Dimension (WxHxD)164.9 x 100 x 7.45 mm
        Active Area (WxH)154.08 x 85.92 mm
        With/Without TouchWith CTP
        Weight202.5 ± 5 g
        LED Quantity21 LEDs

      Mechanical Drawing Reference


      • Outline Dimensions: 164.9 mm (H) × 100 mm (V) × 7.45 mm (T)

      • Active Area: 154.08 mm (H) × 85.92 mm (V)

      • Connector Type: Board-to-board connector for reliable industrial assembly.

      • Applications

      • Industrial Human-Machine Interfaces (HMI)

      • Smart home control panels

      • Medical monitoring devices

      • Portable test instruments

      • Retail POS terminals

      • Car infotainment / rear-seat displays

      • Why Choose This Module?

      • This TFT LCD display with capacitive touch screen offers a ready-to-use, mechanically compact solution. The combination of RGB-24bit interface, known driver ICs (EK9713CA, FT5426), and vertical stripe pixel layout ensures consistent color reproduction and stable touch performance across different operating environments.

      Please

      PRODUCT MESSAGE

      社媒暂无评论
      More

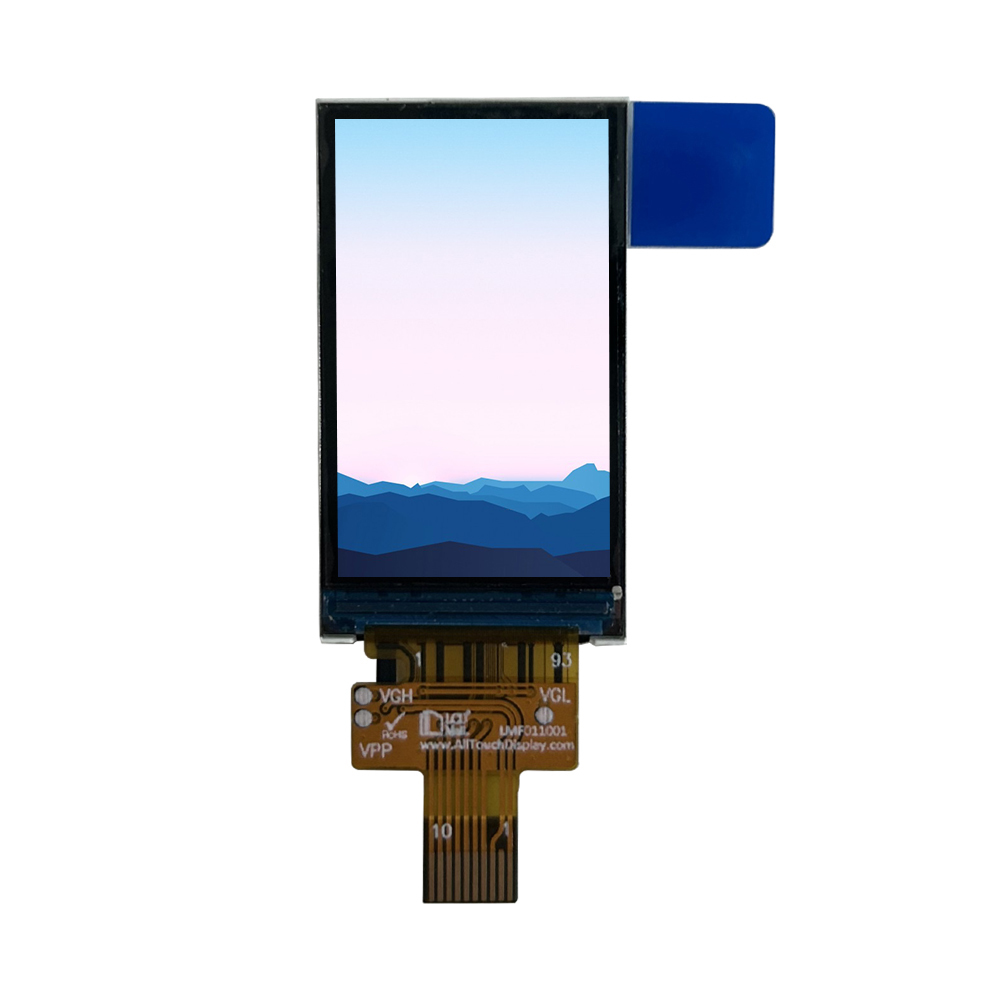

      HOT Sale 1.14 Inch TFT LCD Display 135x240 Resolution TFT Panel Screen 4-Line SPI Interface LCD Module for Smart Wearable
      HOT Sale 1.14 Inch TFT LCD Display 135x240 Resolution TFT Panel Screen 4-Line SPI Interface LCD Module for Smart Wearable
      This 1.14-inch TFT LCD display module features a sharp 135x240 pixel resolution, delivering clear visuals for compact smart devices. Designed with a 4-line SPI interface, it ensures efficient data transfer and low pin count, making it ideal for space-constrained applications. The model LMT011QV002C is specifically suited for smart wearables such as fitness bands, smartwatches, and other portable IoT devices. With its small form factor, low power consumption, and high-contrast color display, this TFT panel balances performance and energy efficiency, supporting vibrant GUI and simple graphics in battery-powered products. Available for hot sale, it offers a reliable, ready-to-integrate solution for developers and manufacturers.

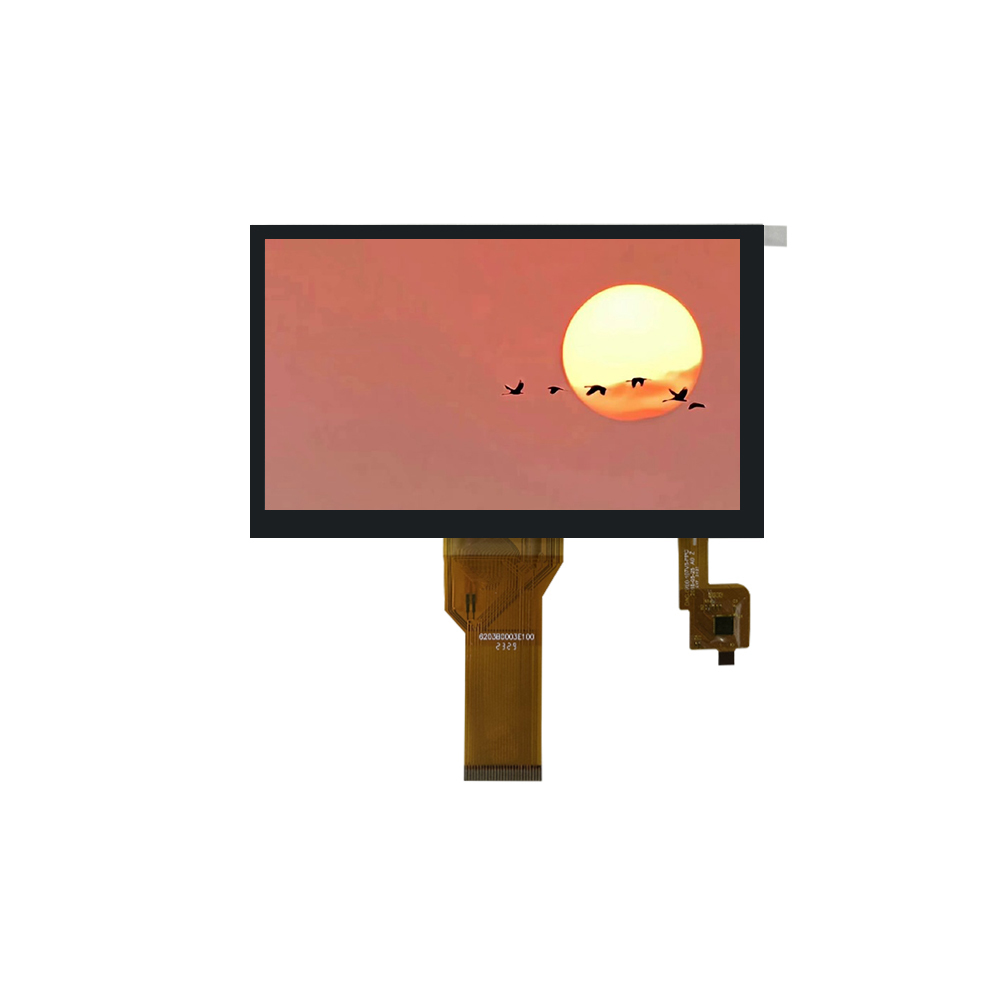

      High brightness Display 1500cd/m² 7 inch TFT LCD Display 800*480 Resolution RGB Interface LCD Module
