Product Overview

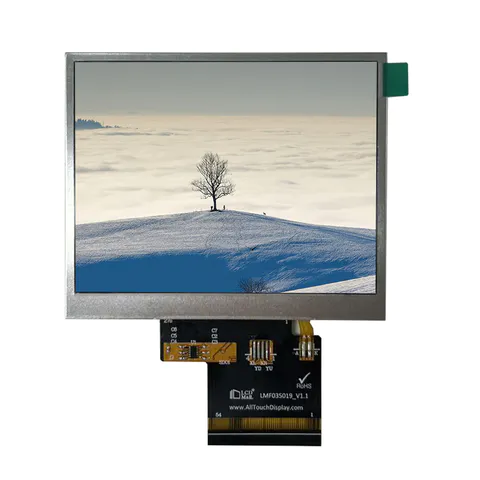

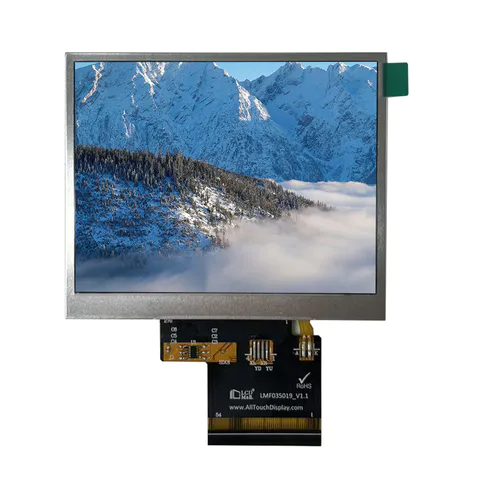

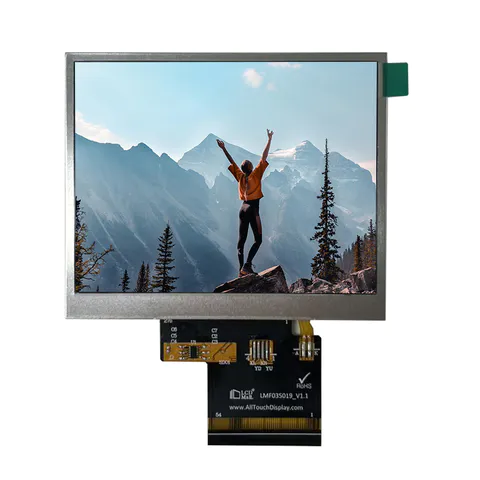

This 3.5-inch High Brightness TFT LCD Display Module is a versatile, high-quality screen solution designed for industrial, embedded, and multimedia applications. With a resolution of 640×480 pixels (VGA) and a 54-pin interface, it supports both RGB and SPI communication protocols, offering flexibility for different system requirements. The display delivers excellent visual performance, characterized by high brightness, vivid colors, and wide viewing angles, making it suitable for both indoor and outdoor environments.

Key Features

• High Brightness Backlight
  Equipped with a powerful LED backlight, the display ensures clear visibility even under strong ambient light conditions, making it ideal for outdoor devices, industrial controls, and portable equipment.

• Dual Interface: RGB + SPI

  • RGB Interface: Provides high-speed data transmission for full-color, high-refresh-rate display, suitable for dynamic graphics, video, or GUI applications.

  • SPI Interface: Offers a simpler, lower-pin-count alternative for basic display tasks or MCU-based systems with limited I/O resources.

• 54-Pin Connector
  The comprehensive pinout supports display data, touch control (if integrated), backlight control, and power supply, ensuring easy integration with common driver boards or custom circuits.

• Compact and Robust Design
  The 3.5-inch form factor balances size and readability, while the module is built with durable components suitable for long-term operation in demanding environments.

Technical Specifications

• Screen Size: 3.5 inches (diagonal)

• Resolution: 640 × 480 (VGA)

• Interface: 54-pin, supporting RGB parallel and SPI serial modes

• Backlight: High-intensity LED, typically adjustable via PWM

• Viewing Angles: Wide (typically 70/70/50/70 degrees for L/R/U/D)

• Power Supply: Usually 3.3V or 5V (depending on configuration)

• Optional Touch Panel: Resistive or capacitive touch available in some models

Typical Applications

• Industrial HMI (Human-Machine Interface) panels

• Portable medical devices and test instruments

• Automotive dashboards or auxiliary displays

• Smart home control panels

• Consumer electronics, gaming devices, and embedded systems

• Educational and prototyping projects (e.g., Raspberry Pi, Arduino with adapter boards)

Advantages

• Flexibility: Dual interface allows compatibility with a wide range of controllers, from high-performance processors to simple microcontrollers.

• High Readability: Bright backlight and sharp VGA resolution ensure crisp text and graphics.

• Easy Integration: Standard pinout and widely available drivers simplify development.

• Cost-Effective: Offers a balance of performance and affordability for volume projects.

•
