TFT Display Panel

TFT LCM is TFT LCD module, TFT means Thin Film Transistor, colorful display, it is the most popular and widely application display technology. TFT LCM structure is TFT LCD glass with polarizer, FOG assembly with LED backlight, bezel frame together.

Techopedia explains Thin-Film Transistor Liquid Crystal Display (TFT LCD)

Thin-film transistor liquid crystal display technology uses "field-effect" transistors, which are built by layering thin films (color filter) on a glass substrate, hence the name. This technique is commonly used for creating microprocessors. The TFT in the LCD controls individual pixels in the display by setting the level of the electric field across the three liquid crystal capacitors (one for each sub-pixel of red, green and blue) in the pixel in order to control the polarization of the crystal material. The amount of polarization in the crystal determines the amount of light that reaches the color filter from the backlight. Because of this ability to directly and quickly control each pixel, TFT is also called active-matrix LCD technology.

TFT: is a type of LCD with a thin film transistor attached to each pixel. All computer LCD screens are TFT since early 2000s; older ones had slower response times and poorer colour. Cost is now very good; power consumption is fairly good but dominated by the backlight. Has to be manufactured out of glass.

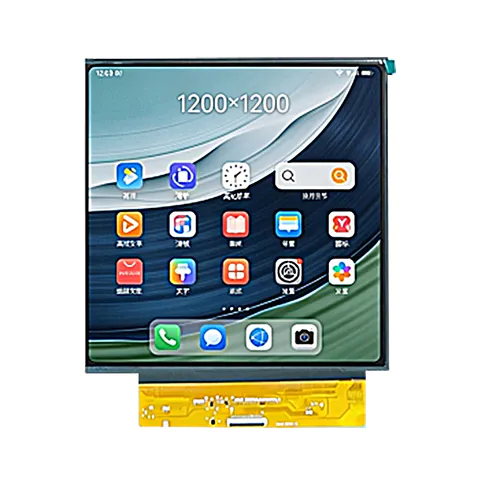

TFT LCD glass can be TN (normally white), IPS (normally black), LPTS, a-si technology. LCD Mall has many special TFT LCD like transflective TFT LCD, round TFT LCD, square TFT LCD, bar TFT LCD, Super wide Operation temperature -30C~+85C. We can do customer design to tooling TFT LCD glass, tooling TFT lcd mask as per project needing.
