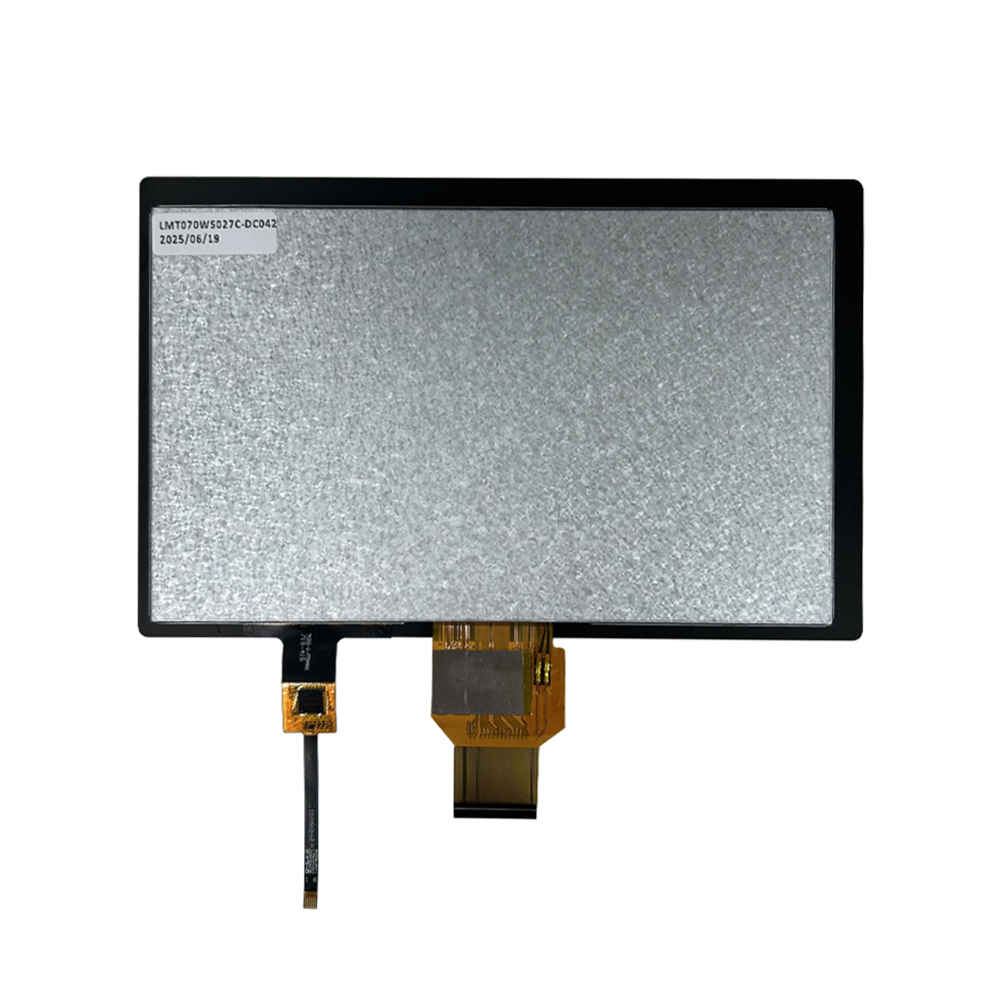

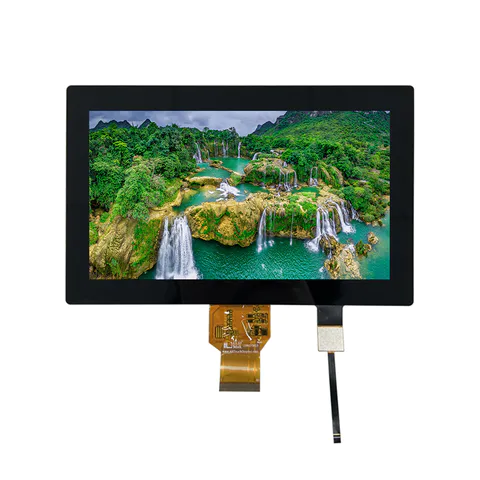

      7 Inch Capacitive Touch Screen Panel 1024*600 LCD Display Screen 40pinRGB TFT LCD Module with CTP FT5446U

      7 Inch Capacitive Touch Screen Panel 1024*600 LCD Display Screen 40pinRGB TFT LCD Module with CTP FT5446U

      Storage Temp
      -30°C~+80°C
      Backlight
      21 chip white LED,7S3P VF =20.3-23.8V:IF=60mA
      Surface Luminance
      300cd/m2 (TYP)
      Driver IC
      HIX8282-A & HX8696-A
      Operating Temp
      -20°C~+70°C
      Resolution
      1024*600
      LCD TYPE
      7inch WSVGA TFT/Transmissive
      Viewing Direction
      ALL/IPS
      LCM Interface
      RGB Interface
      LCD Mall Model No
      LMT070WS027C-DC042
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

      LCM (W x H x D)(mm)
      178.2(H)x 112.6(V)x5.55(T)
      Active Area(mm)
      154.21(H)x85.92(V)
      Product name
      7 Inch Capacitive Touch Screen Panel 1024*600 LCD Display Screen 40pinRGB TFT LCD Module with CTP FT5446U
      Size
      7 inch
      Resolution
      1024×600
      Interface
      RGB interface
      Brightness
      300cd/m2
      Viewing Angle
      ALL/IPS

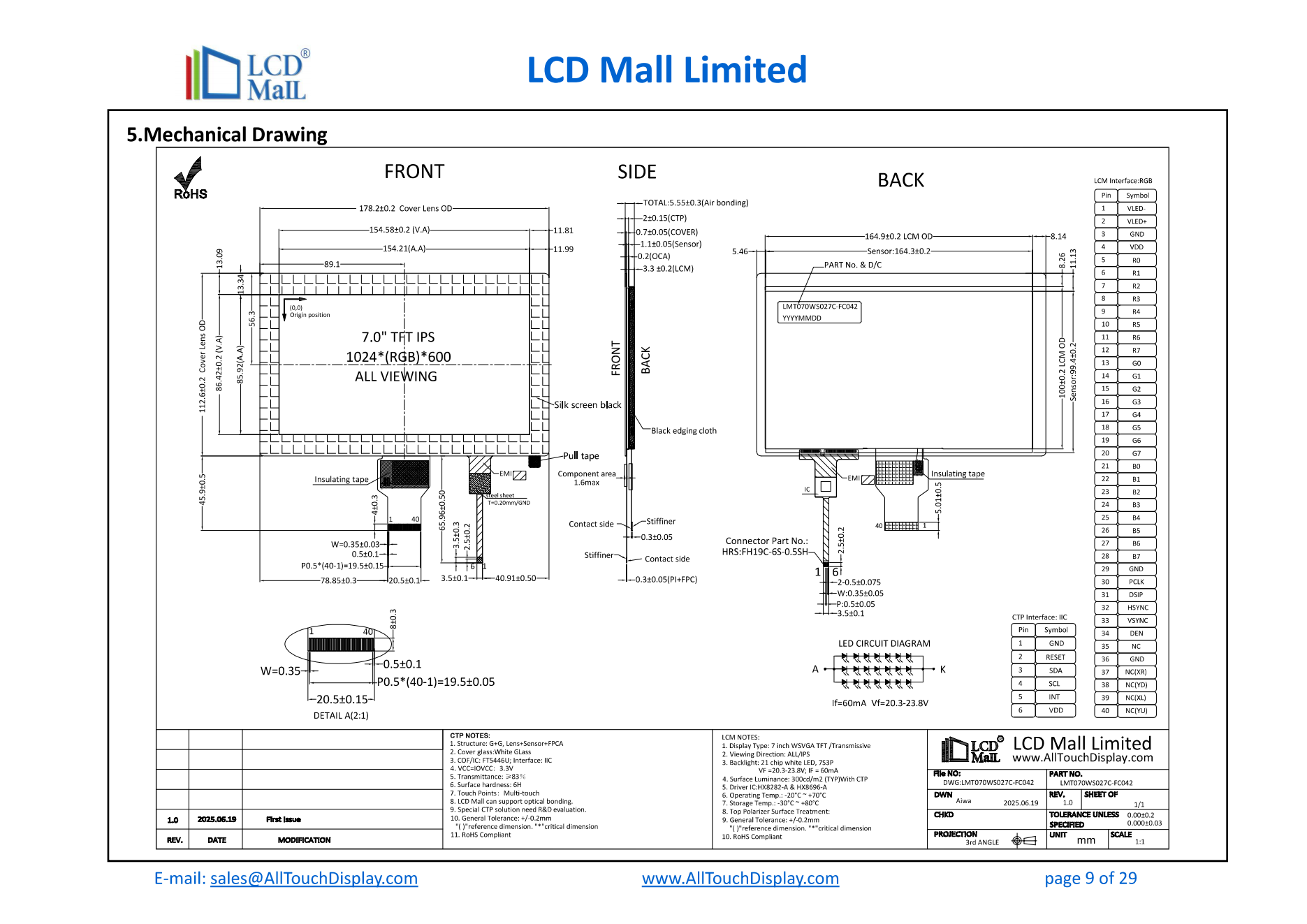

      LMT070WS027C-DC042 DRAWING_01.png
