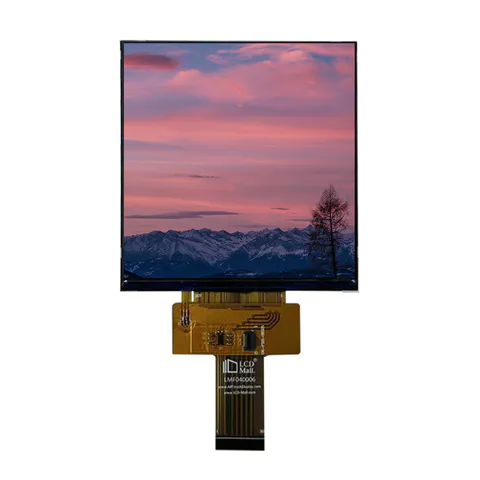

4.0 Inch IPS TFT LCD Display Module Square 720x720 MIPI Interface LED Backlight 350 Nits Brightness Customized Touch LCD Screen

4.0 Inch IPS TFT LCD Display Module Square 720x720 MIPI Interface LED Backlight 350 Nits Brightness Customized Touch LCD Screen

Surface Luminance
300cd/m2
Resolution
720x720
Size (inch)
4 inch
LCM OD sizes
74.83x78.98x2.13mm
LCM Interface
4-Line MIPI
LCD Driver IC
FL7703N
LCD Mall Model No
LMT040XG014C
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Mounting Type
Connector
Screen Size
4.0 inch
Communication Interface
4-Line MIPI
Driver Ic
FL7703N
LCD Type
TFT
Direction
All
Interface
4-Line MIPI
Driver IC
FL7703N

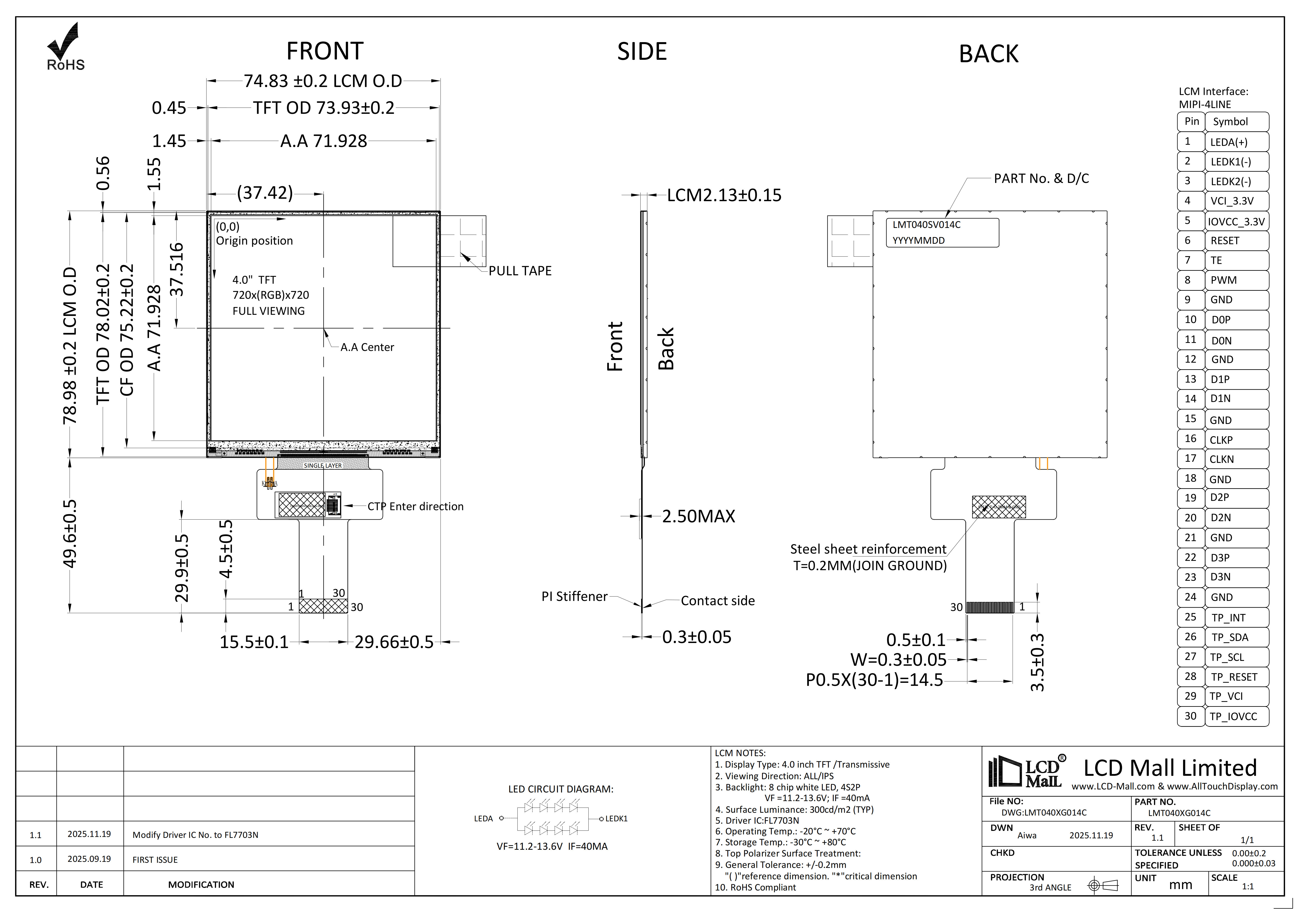

Outline Dimension
74.83x78.98x2.13mm
Active Area
71.928x71.928mm
Operating Temperature
-20~+70℃
Luminance
300cd/m2
Touch panel
Can be customized
Resolution
720x720
