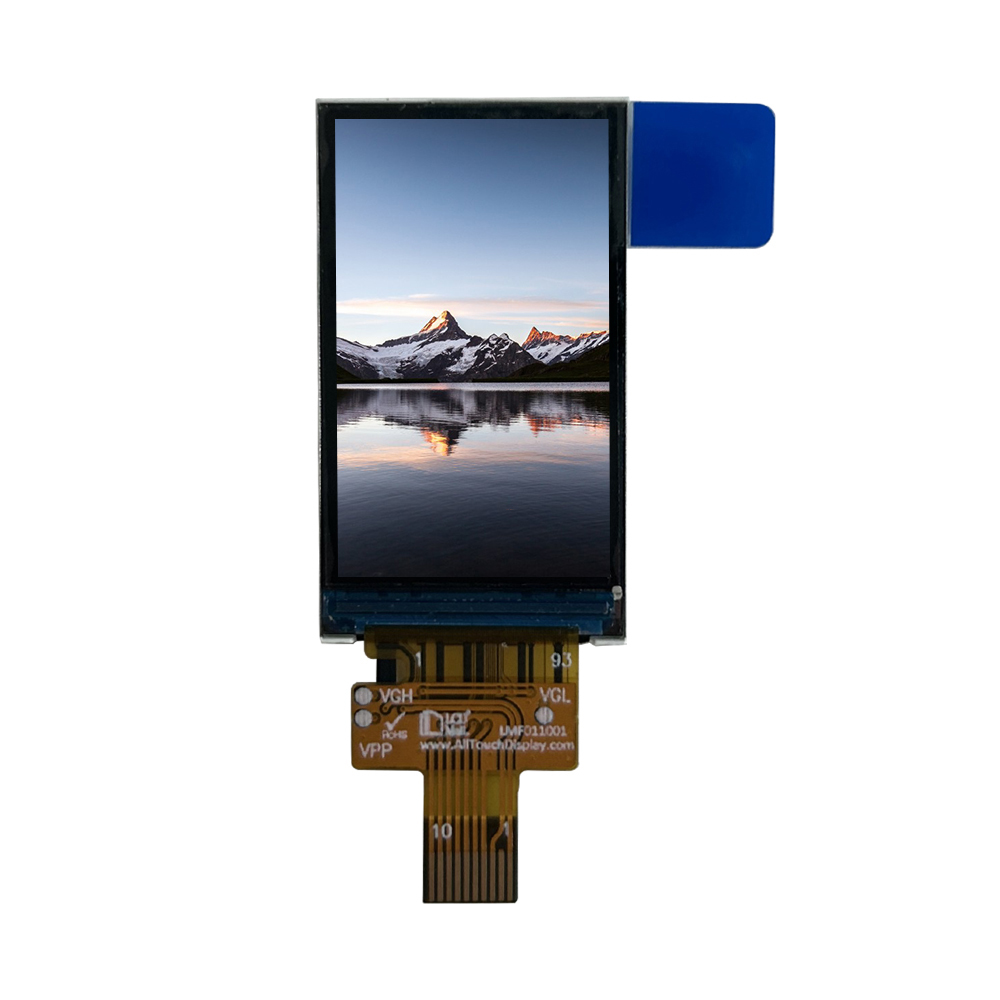

      HOT Sale 1.14 Inch TFT LCD Display 135x240 Resolution TFT Panel Screen 4-Line SPI Interface LCD Module for Smart Wearable

      HOT Sale 1.14 Inch TFT LCD Display 135x240 Resolution TFT Panel Screen 4-Line SPI Interface LCD Module for Smart Wearable

      Storage Temp
      -30°C~+80°C
      Surface Luminance
      400cd/m2 (TYP)
      Operating Temp
      -20°C~+70°C
      Resolution
      135*240
      Size (inch)
      1.14 inch
      LCD TYPE
      a-Si TFT-LCD, LCD Module
      LCM OD sizes
      17.6(H) x31(V) x1.6(T)
      Viewing Direction
      IPS Viewing Direction
      LCM Interface
      4-Lane SPl
      LCD Driver IC
      ST7789V3
      LCD Mall Model No
      LMT011QV002C
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

      LMT011QV002C – 1.14" TFT LCD Display

      Product Overview

      The LMT011QV002C is a compact, high-performance 1.14-inch TFT LCD Display designed for next-generation smart wearables and portable devices. With a sharp 135x240 resolution, 262K full-color support, and a 4-line SPI interface, this display module delivers crisp visuals and smooth data transmission in an ultra-compact form factor. While the standard model comes without touch, it is fully compatible with an optional capacitive touch screen upgrade for interactive applications.

      Key Specifications

      ParameterValue
      Display Size1.14 inch
      Resolution135 (H) x 240 (V) pixels
      Interface4-line SPI
      Connection TypeZIF connector
      Display Colors262,144 (262K)
      Technology Typea-Si TFT
      Pixel Pitch0.1101 (H) x 0.1038 (V) mm
      Pixel ConfigurationR.G.B. Vertical Stripe
      Display ModeNormally Black
      LCD Driver ICST7789V3
      Touch Driver ICWithout (optional capacitive touch available)
      Surface TreatmentHC (Hard Coating)
      Module Size (W x H x D)17.6 x 31.0 x 1.6 mm
      Active Area14.86 x 24.91 mm
      Weight1.8 ± 0.3 g
      LED Numbers1 LED

      Key Features

      Vivid Color & High Resolution

      • 135x240 resolution ensures clear text and sharp icons

      • 262K full-color support delivers rich, lifelike images

      • R.G.B. vertical stripe pixel arrangement for accurate color reproduction

      Optimized Display Performance

      • Normally Black mode – excellent contrast and deep blacks when idle

      • ST7789V3 driver IC – reliable, widely supported, and power-efficient

      • Hard coating (HC) surface treatment for scratch resistance

      Easy Integration

      • 4-line SPI interface minimizes GPIO usage while maintaining high speed

      • ZIF connector simplifies assembly in mass production

      • Ultra-thin: only 1.6mm thick, ideal for compact enclosures

      Applications

      ✅ Smart watches & fitness bands
      ✅ Interactive wearables
      ✅ Portable medical devices
      ✅ Handheld IoT terminals
      ✅ Small GUI displays for control panels
