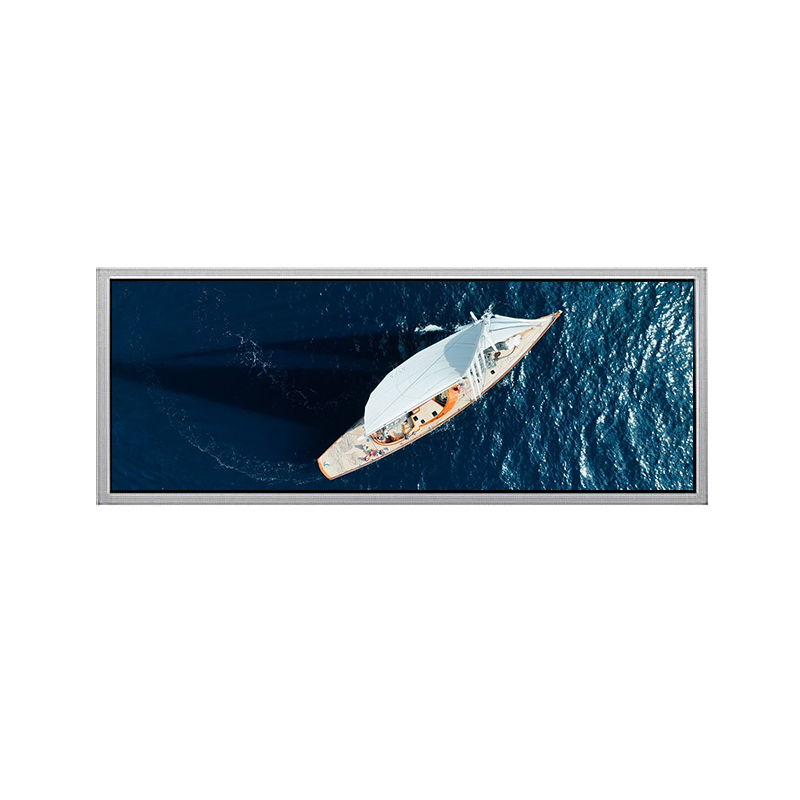

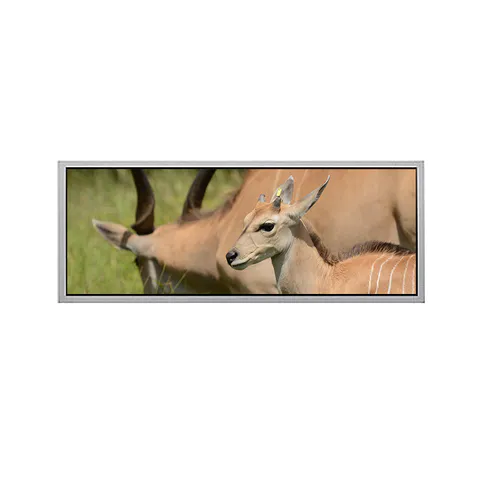

      High Definition 39.6 Inch LCD Display Panel 1920XRGBX720 Pixels LVDS Interface Display Screen 500cd/m2 TFT LCD Module

      High Definition 39.6 Inch LCD Display Panel 1920XRGBX720 Pixels LVDS Interface Display Screen 500cd/m2 TFT LCD Module

      Surface Luminance
      500cd/m2
      Resolution
      1920*720
      Size (inch)
      39.6 Inch
      LCD TYPE
      Bar Display Pane/ Strip Screen Module
      LCD Mall Model No
      LMT396FH001H
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

      Display Type
      TFT
      Mounting Type
      Panel Mounting
      LCD Type
      Bar Display Pane/ Strip Screen Module
      Backlight Type
      LED
      Viewing Area
      941.18(H)*3 5 2 . 9 4 (V)
      OEM/ODM
      Support
      Resolution
      1920*720
      Application
      Home Alone Multimedia TFT-LCD, Display Terminals for Control System
      Pixel pitch
      0.49005(H)*RGB*0.49005(V)
      Pixel arrangement
      Pixels RGB Vertical stripe
      Display colors
      16.7M(8bits-true) colors
      Brightness
      500cd type cd/m²


      1.1 Introduction

      LMT396FHO01H is a color active matrix TFT LCD open cell using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This open cell has a39.6 inchdiagonally measured active area with FHD resolutions(1920 horizontal by720 verticalpixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged invertical stripe and this open cell can display16.7M colors. The TFT-LCD panel used forthis open cell is adapted for a low reflection and higher color type.


      1.2 Features
      LVDS interface with 2 pixel / clock
      High-speed response Low color shift image quality 8-bit color depth, display16.7M colors
      High luminance and contrast ratio, low reflection and wide viewing angle
      DE(Data Enable) only mode ADSDS technology is applied for high display quality
      RoHS compliant

      1.3 Application

      Home Alone Multimedia TFT-LCD

      Display Terminals for Control System
