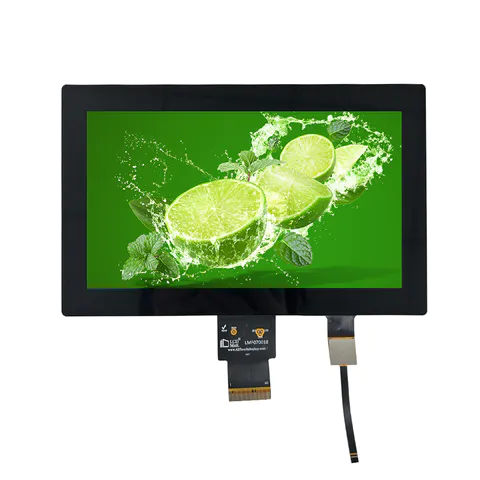

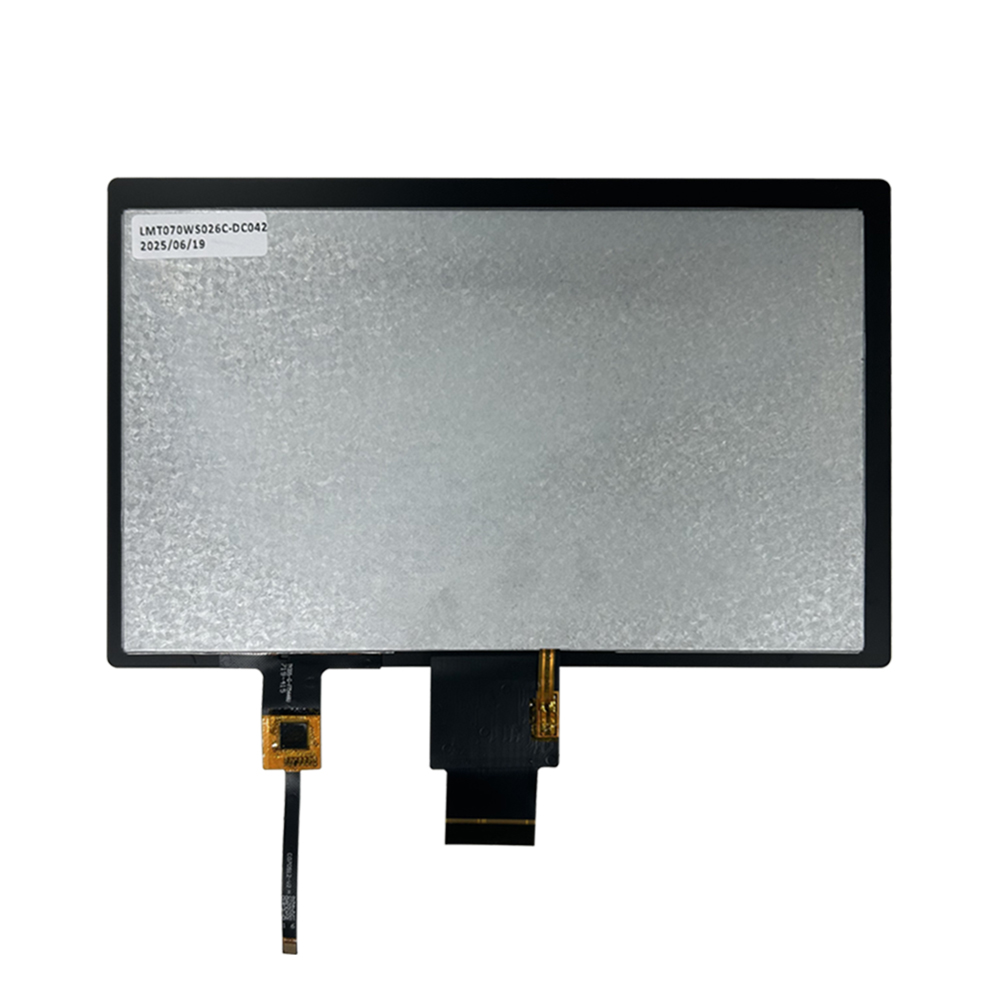

      7 Inch Capacitive Touch LCD Screen 1024*600 Display Panel 40pin LVDS TFT LCD Module With CTP FT5446U

      7 Inch Capacitive Touch LCD Screen 1024*600 Display Panel 40pin LVDS TFT LCD Module With CTP FT5446U

      Storage Temp
      -30°C~+80°C
      Backlight
      27 chip white LED, 9P3sVF=9.6±1.0V:IF= 180mA
      Surface Luminance
      300cd/m2 (TP)With CTP
      Driver IC
      Hx8282-A &HX8696-A
      Operating Temp
      -20°C~+70°C
      LCD TYPE
      7 inch WSVGATFT /Transmissive
      Viewing Direction
      ALL/IPS
      LCM Interface
      LVDS
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：

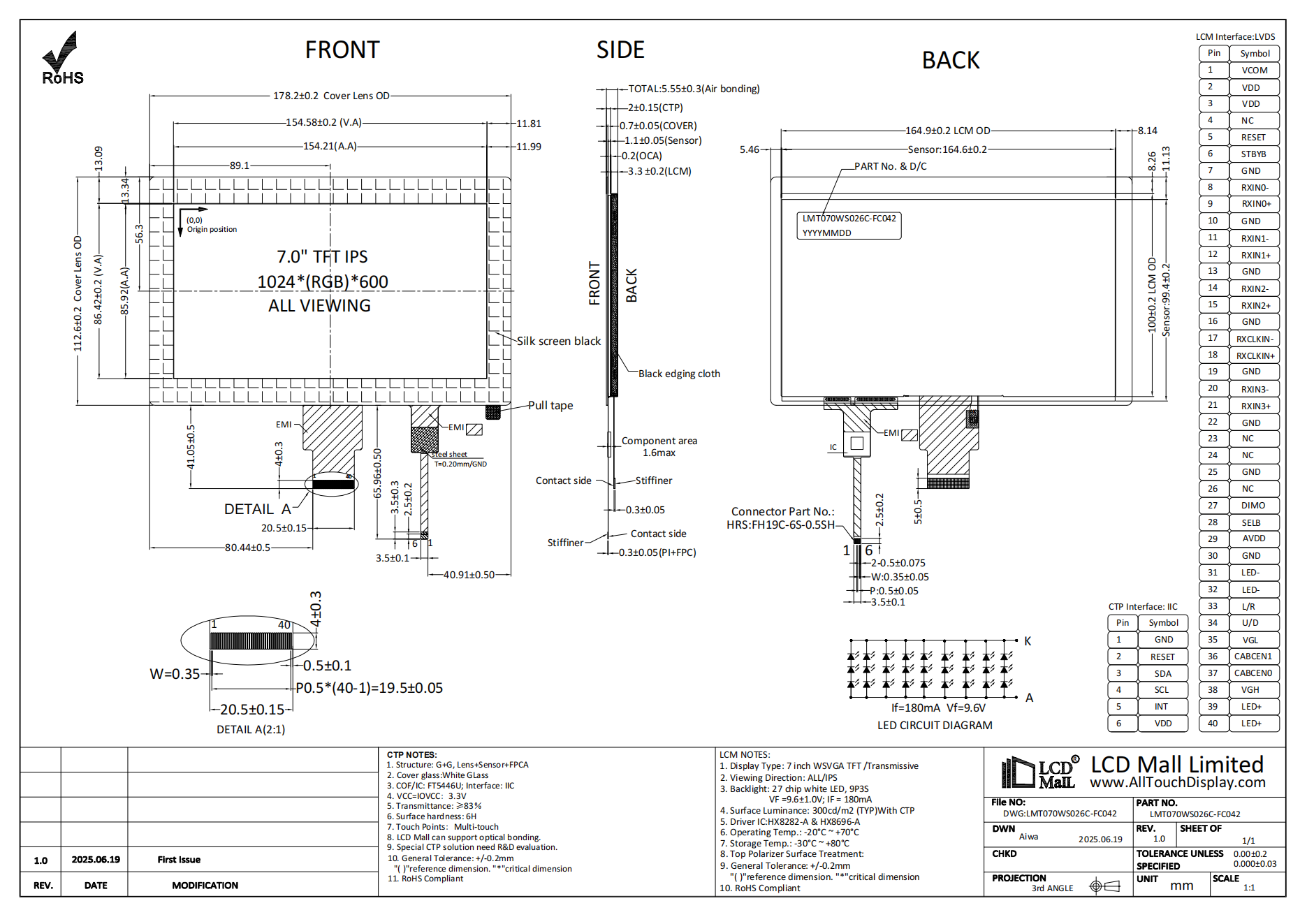

      LCM (W x H x D)(mm)
      178.0(H)x 112.6(V)x5.55(T)
      Active Area(mm)
      154.21(H)x85.92(V)
      Product name
      7 Inch Capacitive Touch LCD Screen 1024*600 Display Panel 40pin LVDS TFT LCD Module With CTP FT5446U
      Size
      7 inch
      Resolution
      1024×600
      Interface
      RGB
      Brightness
      300cd/m2
      Viewing Angle
      ALL/IPS
