24.5″ Model

Specifications

Units/N

umber

Notes

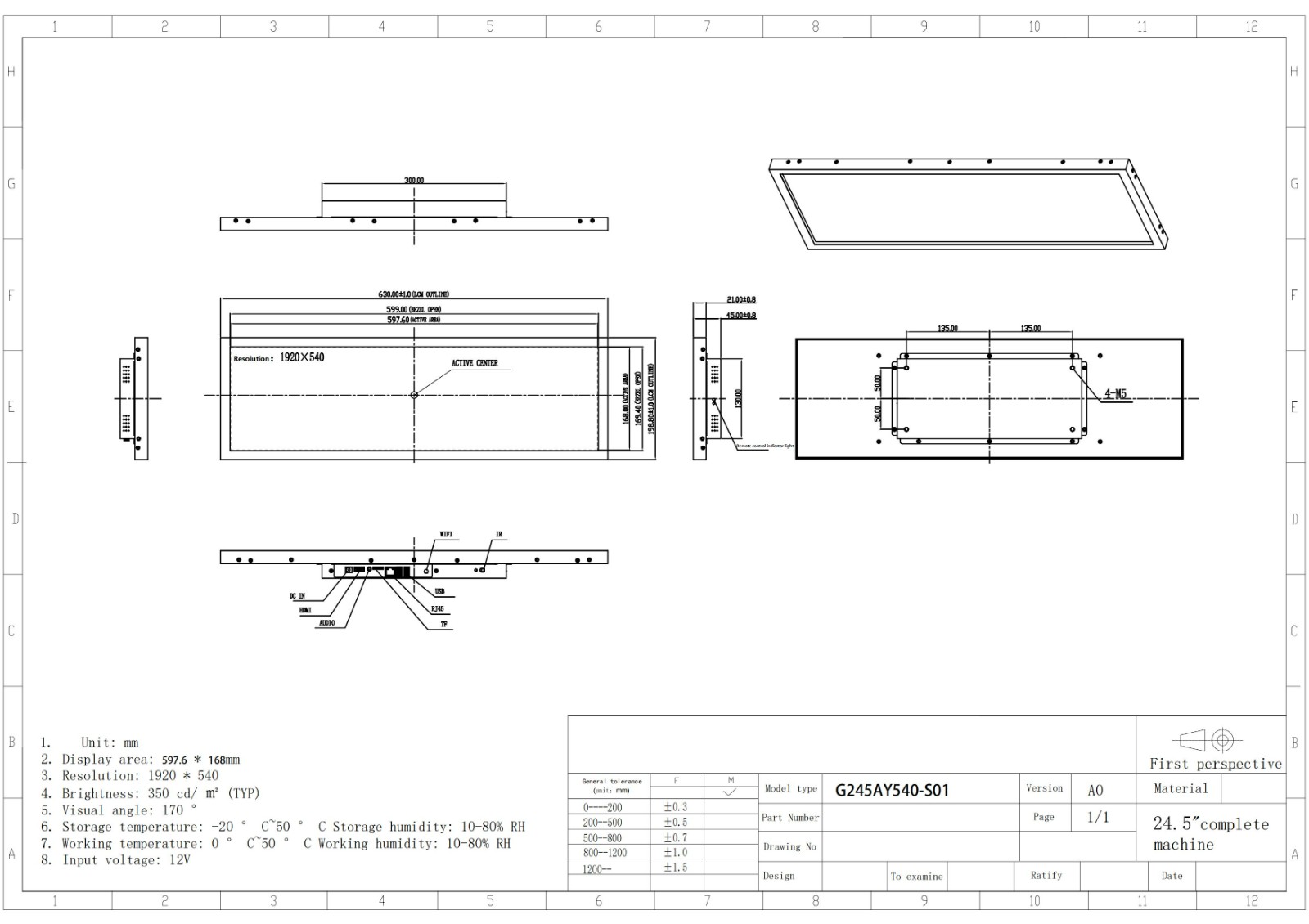

Dimension

630(L)*198.8(V)*66(W)

MM

Shell material

Black fine sand pattern

-

Gross Weight

3

Kg/gros

s

Display Size

597.6(L)*168(V)

MM

Display- resolution

1920*540

Pixel

Brightness

350

Cd/m²

Contrast ratio

3000:1

-

Display scale

16:4.5

-

Viewing angle

89/89/89/89

-

Pixel pitch

0.31125*0.31125

MM

Display color

16.7

M

Maximum power

≤35

W

Standby power

≤1

W

Supply Voltage

5V

V

Horn

/

-

Operating

temperature

0-50

℃

Working- humidity

10％～80%

%hr

Storage

temperature

-20-50

℃

Storage Humidity

10％～80%

%hr

Power interface

DC 12V 5A

Functiona l configuration

CPU

TA40i, quad-core, the highest main frequency is

1.2GHz

Operating System

Android 7.1

Memory Storage

EMMC is standard with 8G (16/32G optional)

built-inROM

2KB EEPROM

HDMI Out

1, supports 1080P output

HDMI import

/

Support Video- Formats

Supports wmv, avi, flv, rm, rmvb,mpeg, ts,mp4, etc

Support Image- Formats

Supports BMP, JPEG, PNG, GIF

Audio

Input/Output

Supports left and right channel output, with built- in dual 4R/20W and 8R/10W power amplifiers

Headphone

Output

/

USB Interface

2 USB HOST, 3 USB ports

Serial Port

2 serial TTL sockets, 2 serial RS232 sockets

Network Support

4G, Ethernet, support WiFi/ Bluetooth 4.0, wireless

peripheral expansion

Memory Card

Supports SD cards

RTC

Support multi-time timing on and off

System Upgrade

Support local SD, USB upgrade
