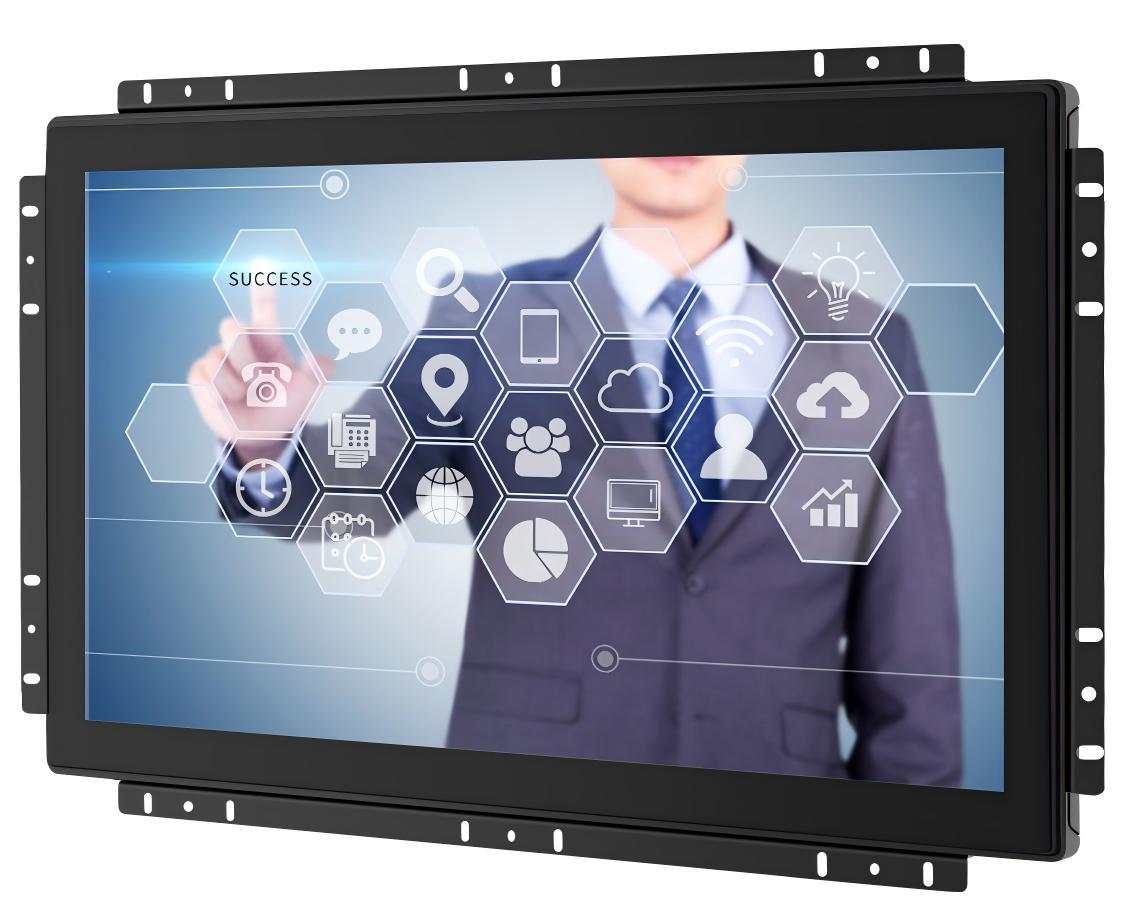

LMM185004 18.5 Inch Industrial LCD Monitor | 1366x768 HD IPS Display | 300 cd/m² Brightness | HDMI & VGA Input

The LMM185004 is a rugged 18.5-inch industrial-grade LCD monitor featuring a 1366x768 HD resolution IPS panel that delivers sharp text, accurate colors, and consistent image quality from virtually any viewing angle. With a high-brightness 300 cd/m² backlight, this display ensures clear visibility in well-lit factory floors, control rooms, and commercial environments. Equipped with both HDMI and VGA interfaces, it offers seamless connectivity with legacy and modern industrial systems, including PLCs, embedded PCs, DVRs, and digital signage players. Built for 24/7 continuous operation, the LMM185004 combines a durable metal chassis, anti-glare surface, and VESA mounting support, making it a dependable choice for industrial automation, medical carts, security monitoring, kiosk terminals, and retail point-of-sale applications where stability and long service life are paramount.

Key Specifications:

• Model: LMM185004

• Screen Size: 18.5 inch diagonal

• Resolution: 1366 x 768 (HD)

• Panel Type: IPS (In-Plane Switching)

• Brightness: 300 cd/m²

• Contrast Ratio: 1000:1 (typical)

• Viewing Angle: 178° horizontal / 178° vertical

• Input Interfaces: HDMI x1, VGA x1

• Mounting: VESA 100x100mm compatible

• Construction: Rugged metal housing for industrial environments

• Operating Temperature: 0°C to 50°C (extended options available)



• Parameter	Model A	Model B
  Panel Size	18.5 inches	18.5 inches
  Resolution	1920x1080, FHD	1366x768, WXGA
  Pixel Pitch	0.071×0.213 mm	0.100×0.300 mm
  Display Brightness	300 cd/m²	250 cd/m²
  Viewing Angle	89/89/89/89	85/85/80/80
  Color Quantity	16.7M, 72% NTSC	16.7M, 72% NTSC
  Refresh Rate	60 Hz	75 Hz
  Contrast Ratio	1000:1	1000:1
  Screen Ratio	16:9	16:9
  Response Time	14 ms	1.5/3.5 ms
  Panel Type	IPS	TN
  Operating Temperature	0~50°C	0~50°C
  Storage Temperature	-20~60°C	-20~60°C
  Power Consumption	<32W	<32W
  Installation Method	Wall mounted, embedded, ear mounted	Wall mounted, embedded, ear mounted
  HDMI Interface	1	1
  VGA Interface	1	1
  Audio Interface	1	1
  Power Socket	1 DC 5.5×2.1	1 DC 5.5×2.1

Typical Applications:

• Factory automation and HMI terminals

• Medical diagnostic and patient monitoring displays

• Video surveillance and security control rooms

• Digital signage and public information kiosks

• Retail POS and self-service terminals

Why Choose the LMM185004?
This monitor strikes an optimal balance between cost-effectiveness and performance, offering the wide-viewing benefits of IPS technology at an HD resolution that reduces GPU load while maintaining excellent visual clarity. Its dual-interface design ensures compatibility across a broad range of industrial equipment, while the 300 cd/m² brightness guarantees readable content even under ambient lighting conditions.
