7 inch TFT HDMI Display 1920*1080 Resolution LCD Display Panel EDP Interface LCD Module

Surface Luminance: 500cd/m²

Resolution: 1920 (W) × 1080 (H)

Size (inch): 7 inch

LCD TYPE: 7 inch TFT HDMI display

LCM OD sizes: 165.04 × 106.26 × 2.21mm

Viewing Direction: All Direction

LCM Interface: EDP

LCD Driver IC: VTDR6130

LCD Mall Model No: LMH0700FHNNV00

Price: Get Latest Price

Get the latest price

Quantity Needed：

Pieces

E-mail：

Inquire Online

LMH0700FHNNV00 – 7.0" TFT LCD Display Module Product Detail Page

Overview

The LMH0700FHNNV00 is a 7.0-inch TFT LCD display module built on LTPS (Low-Temperature Polycrystalline Silicon) SFT technology. It delivers Full HD performance with a native resolution of 1920×1080 pixels, 16.7 million colors (8-bit), and an ultra-slim mechanical profile. Designed for high-performance industrial, automotive, and consumer applications, this module features an eDP 1.4b interface supporting up to 120Hz refresh rate, a built-in capacitive touch panel (TSP), and wide all-direction viewing angles. The module comes with a pre-assembled driver board to simplify system integration and accelerate time-to-market.

Key Features

7.0" TFT LCD Panel – LTPS SFT technology with Normal Black mode
FHD Resolution (1920×1080) – Crisp, detailed full-HD imagery
16.7M Colors (8-bit) – Accurate and vibrant color reproduction
eDP 1.4b Interface – High-speed embedded DisplayPort with low latency
120Hz Refresh Rate Support – Smooth motion rendering for gaming and video
Integrated Capacitive Touch Panel – With TSP, ready for touch interaction
All-Direction Viewing – Consistent image quality from any angle
Hard-Coated Surface – Scratch resistance and durability
Wide Operating Temperature – Suitable for demanding environments
Pre-integrated Driver Board – Reduces design complexity and speeds development

Mechanical Specifications

Parameter	Specification	Unit
Screen Size (Diagonal)	7.0	inch
Resolution	1920 (W) × 1080 (H)	pixels
Active Area	154.944 (W) × 87.156 (H)	mm
Module Outline Dimension (W×H×D)	165.04 × 106.26 × 2.21	mm
Module Border (L/R/U/D)	5.05 / 5.05 / 9.55 / 9.55	mm
Pixel Pitch	0.0807 × 0.0807	mm
Pixel Configuration	R.G.B Vertical Stripe	–
Technology Type	LTPS SFT	–
Surface Treatment	HC (Hard Coating)	–
Display Mode	SFT with Normal Black	–
Viewing Direction	All Direction	–
Touch Panel	With TSP (capacitive)	–
Connection Type	20682-040E-02	–
LED Backlight	40 LEDs (8P5S configuration)	–
Weight	65	g

Optical Specifications

Parameter	Specification
Display Mode	SFT (Super Fine TFT) with Normal Black
Color Depth	16.7M colors (8-bit)
Viewing Direction	All Direction (wide viewing angle)
Surface Treatment	Hard Coating (anti-scratch)

Electrical Specifications

Parameter	Specification	Unit
Interface Type	eDP 1.4b (Embedded DisplayPort)	–
Differential Termination Resistance	85 ± 10	Ω
Color Depth	16.7M (8-bit per color)	colors
TCON IC	NT56810	–
Refresh Rate	Up to 120 Hz	Hz
LED Backlight Configuration	40 LEDs (8 parallel × 5 series)	–

Interface & Connector Details

eDP 1.4b Interface – Supports high-speed video transmission with low EMI and reduced cable count.
Connector Type: 20682-040E-02 (40-pin).
Differential Pair Impedance: 85Ω ± 10% for reliable signal integrity.
Backlight: 40 LEDs arranged in 8P5S configuration, providing uniform illumination.

Environmental & Reliability

Parameter	Specification	Unit
Operating Temperature	-20 ~ +70 (typical, refer to datasheet for full range)	°C
Storage Temperature	-30 ~ +80 (typical, refer to datasheet for full range)	°C

Note: Full environmental and reliability test data available in the official product datasheet.

Applications

Industrial Human-Machine Interfaces (HMI)
Automotive infotainment and instrument clusters
Gaming monitors and esports displays
Portable monitors and secondary screens
Medical imaging and diagnostic equipment
High-end consumer electronics and kiosk systems
Digital signage and control panels

Ordering & Support

Samples: Available upon request.

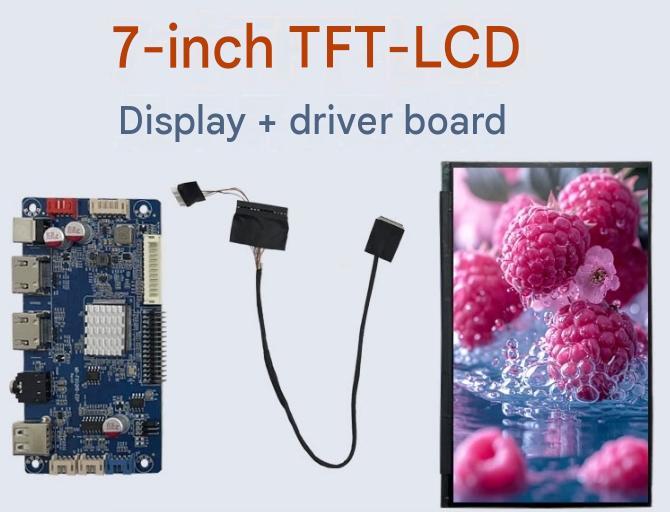

Driver Board: Included with the module for rapid prototyping.
Touch Panel: Integrated TSP (touch function ready).
Datasheets & Technical Support: Contact our engineering team for detailed register settings, initialization codes, layout guidelines, and backlight driver recommendations.
