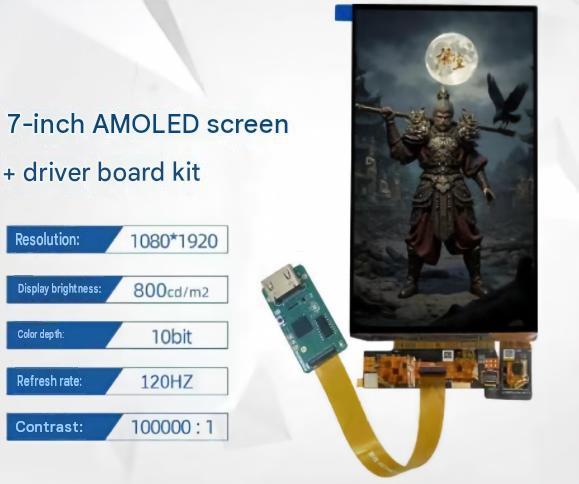

7 inch AMOLED HDMI Display 1080*1920 Resolution High brightness Display MIPI Interface LCD Module

Storage Temp: -30 ~ +80 °C

Surface Luminance: 800cd/m²

Operating Temp: -30 ~ +80 °C

Resolution: 1080 (W) × 1920 (H)

Size (inch): 7 inch

LCD TYPE: 7 inch AMOLED HDMI display

LCM OD sizes: 89.1344 × 160.9056 × 0.8mm

Viewing Direction: All O'Clock

LCM Interface: MIPI 4-Lane (DSI)

LCD Driver IC: VTDR6130

LCD Mall Model No: LMH0700FHNNV10

Price: Get Latest Price

Get the latest price

Quantity Needed：

Pieces

E-mail：

Inquire Online

LMH0700FHNNV10 – 7.0" AMOLED Display Module Product Detail Page

Overview

The LMH0700FHNNV10 is a 7.0-inch AMOLED display module built on LTPS (Low-Temperature Polycrystalline Silicon) active matrix TFT technology. It delivers full HD visual performance with a native resolution of 1080×1920 pixels, 315 PPI pixel density, and 68.7 billion colors (12-bit color depth). Designed for demanding industrial, automotive, and consumer applications, this module offers wide temperature tolerance, a high-speed MIPI 4-Lane interface, and an integrated capacitive touch panel (without touch FPC). The module comes with a pre-assembled driver board for rapid prototyping and system integration.

Key Features

7.0" AMOLED Panel – Vivid colors, deep blacks, and high contrast ratio
FHD Resolution (1080×1920) – Crisp, detailed imagery
315 PPI – Sharp text and graphics
12-bit Color Depth (68.7B colors) – Smooth gradients and accurate color reproduction
MIPI 4-Lane Interface – High-speed data transmission with low EMI
Integrated Touch Panel – Capacitive touch (without separate FPC)
Wide Operating Temperature – -30°C to +80°C
Ultra-Slim Profile – 0.8 mm panel thickness

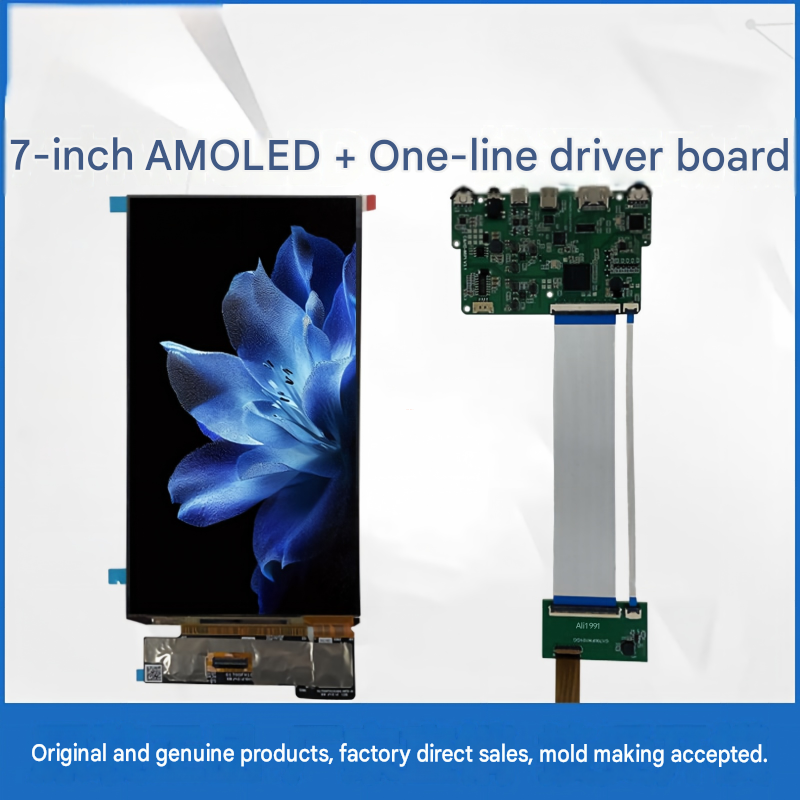

Pre-integrated Driver Board – Simplifies design-in and accelerates time-to-market

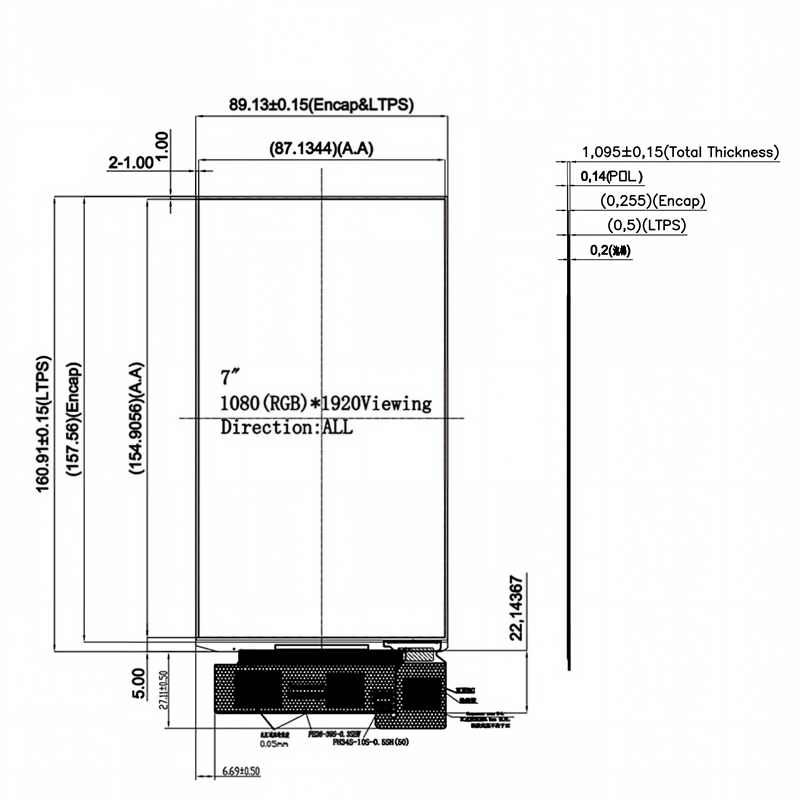

Mechanical Specifications

Parameter	Specification	Unit
Screen Size (Diagonal)	7.0	inch
Resolution	1080 (W) × 1920 (H)	pixels
Active Area	87.1344 (W) × 154.9056 (H)	mm
Module Outline Dimension (W×H×D)	89.1344 × 160.9056 × 0.8	mm
Pixel Density	315	PPI
Pixel Configuration	V-style4	–
Technology Type	LTPS (Low-Temperature Poly-Si)	–
Touch Panel	With TP (without TP-FPC)	–

Optical Specifications

Parameter	Specification
Display Mode	AMOLED
Display Method	Active Matrix TFT
Color Depth	68.7B colors (12-bit)
Recommended Viewing Direction	All O'Clock

Electrical Specifications

Parameter	Specification	Unit
AMOLED Driver IC	VTDR6130	–
Interface Type	MIPI 4-Lane (DSI)	–
Main Connector	FH26-39S-0.3SHW	–
Input Voltage (AVDD)	3.8 ~ 4.5	V
Input Voltage (I/O)	1.8 / 3.3	V

Environmental Specifications

Parameter	Specification	Unit
Operating Temperature	-30 ~ +80	°C
Storage Temperature	-30 ~ +80	°C

Interface & Connector Details

MIPI DSI 4-Lane supports high-speed video transmission.
Connector Type: FH26-39S-0.3SHW (39-pin, 0.3mm pitch).
Power supply requires three voltage rails: 3.8V~4.5V (panel), 3.3V (I/O), and 1.8V (logic).

Applications

Industrial Human-Machine Interfaces (HMI)
Automotive instrument clusters and infotainment
Portable monitors and handheld devices
Smart home control panels
Medical equipment displays
High-end consumer electronics requiring superior image quality

Ordering & Support

Samples: Available upon request.

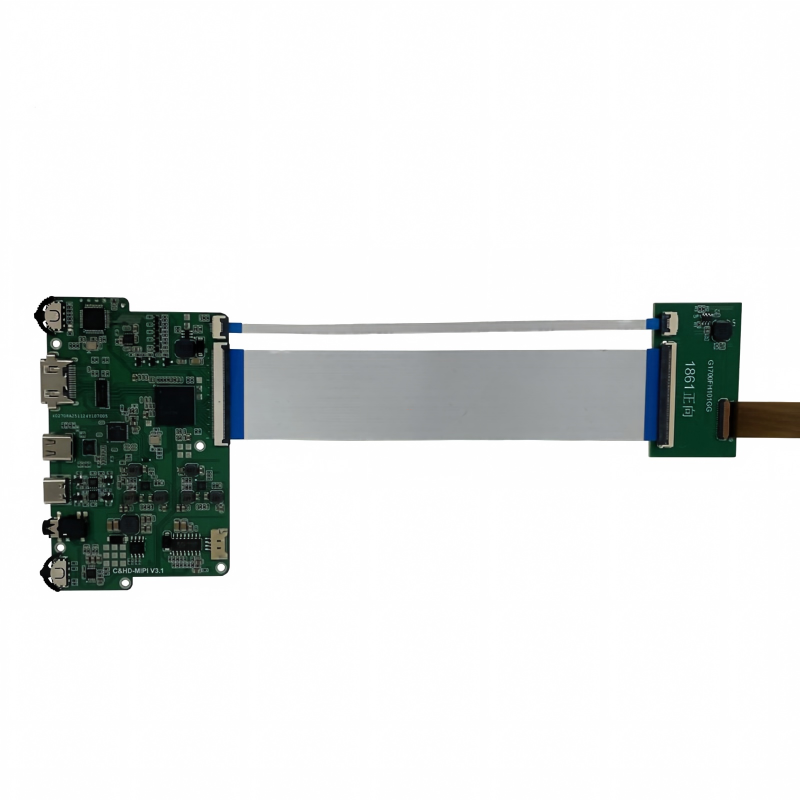

Driver Board: Included with the module.
Datasheets & Technical Support: Contact our engineering team for detailed register settings, initialization codes, and layout guidelines.
