1.1 OVERVIEW

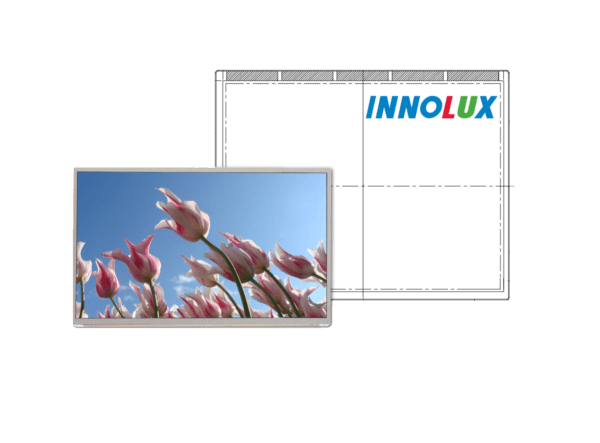

G170ECE-LE1 is a 17.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 30 pins LVDS interface. This module supports 1280 X 1024 SXGA mode and can display 16.7M colors.
The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 17.0” SXGA LCD panel and the LED driving device for Backlight is not built in PCBA.
1.2 FEATURE
SXGA (1280 x 1024 pixels) resolution
DE (Data Enable) only mode
LVDS Interface with 2pixel/clock
PSWG (Panel Standardization Working Group)
RoHS compliance
1.3 APPLICATION
TFT LCD Monitor
Factory Application
1.4 GENERAL SPECIFICATIONS
| Item | Specification | Unit | Note |
|---|---|---|---|
| Active Area | 337.92(H) x 270.336(V) (17.0” diagonal) | mm | (1) |
| Driver Element | a-Si TFT active matrix | - | - |
| Pixel Number | 1280 x R.G.B x 1024 | pixel | - |
| Pixel Pitch | 0.264(H) x 0.264(W) | mm | - |
| Pixel Arrangement | RGB vertical Stripe | - | - |
| Display Colors | 16.7M | color | - |
| Display Mode | Normally Black | - | - |
| Surface Treatment | Hard Coating (3H), Anti-Glare | - | - |
| Module Power Consumption | Total 7.2 W (Typ.) @ Cell: 1.7 W (Typ.) + BLU:5.5 (Typ.) | W | Typ. |
