Product Overview

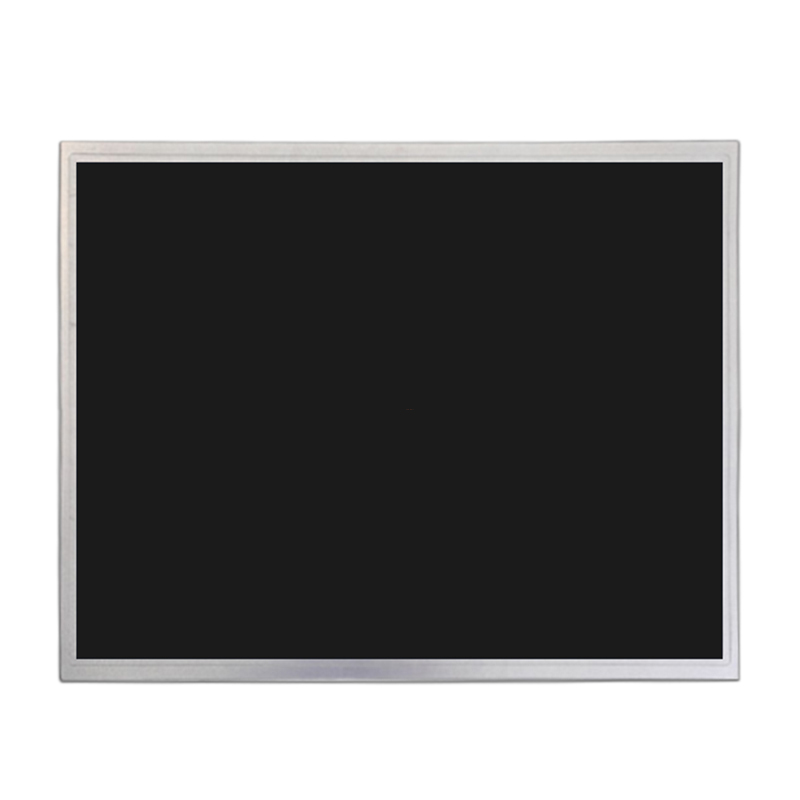

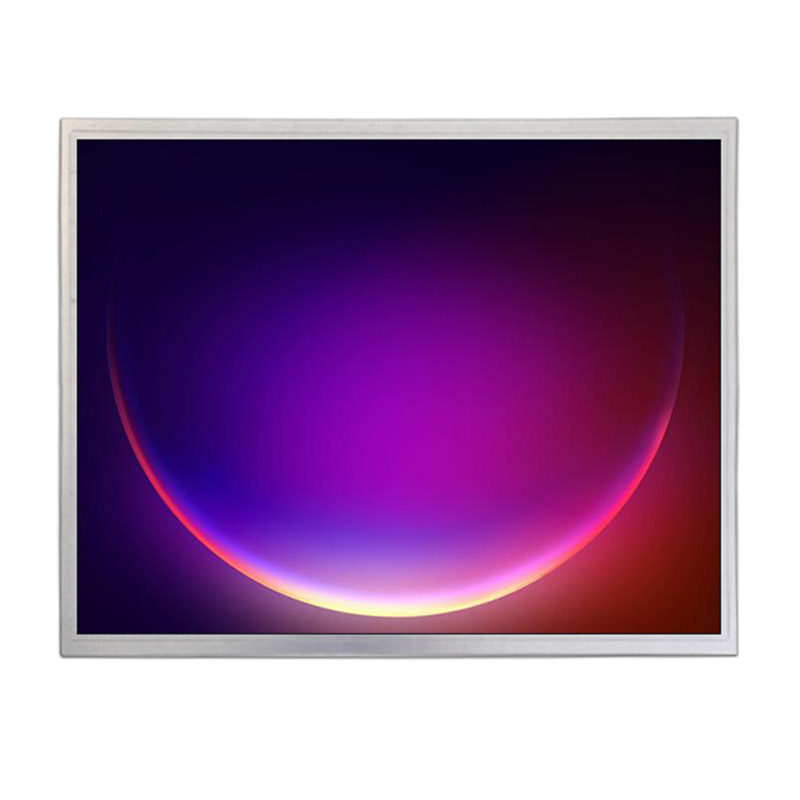

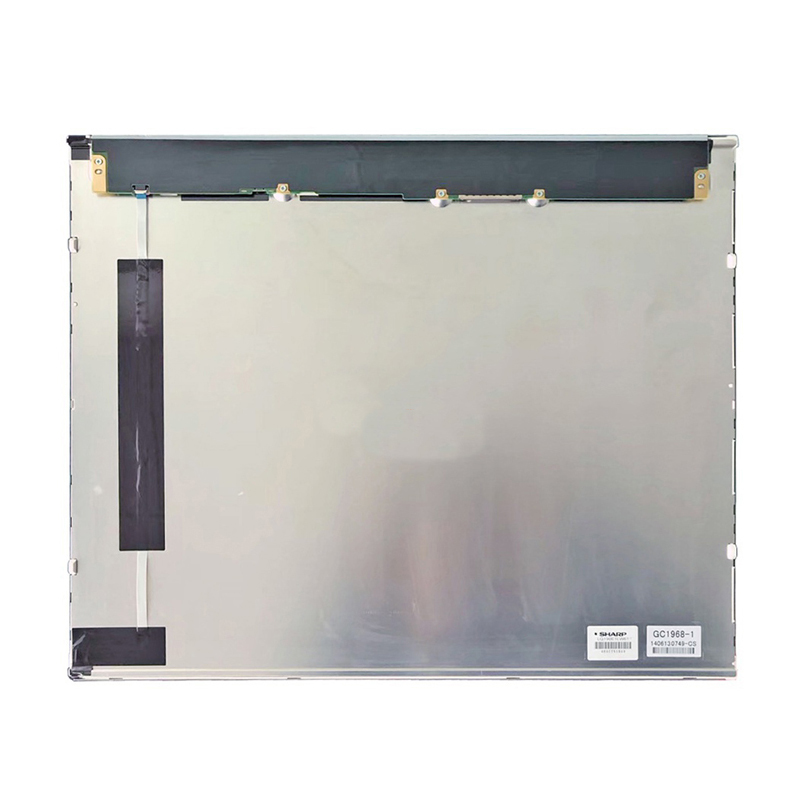

The LQ190E1LW61 is a 19-inch high-brightness, high-resolution industrial-grade TFT LCD display module. It utilizes advanced a-Si TFT LCD technology, delivering excellent visual performance and reliable operation under demanding conditions. Ideal for industrial control systems, automation equipment, medical devices, HMI interfaces, and other rigorous applications.

Key Features

• ✅ 19-inch TFT LCD with 1280×1024 (SXGA) resolution

• ✅ High brightness: 470 cd/m² (Typ.) for clear visibility even in bright environments

• ✅ Wide viewing angles: 85/85/85/85 (Typ., CR≥10)

• ✅ High contrast ratio: 1500:1 (Typ.) for sharp and vivid images

• ✅ Rich color reproduction: 16.7 million colors, covering 90% NTSC color gamut

• ✅ Fast response time: 35 ms (Typ., Tr+Td) reduces motion blur

• ✅ Industrial-grade durability: Operating temperature range of -15 °C to 65 °C

• ✅ 30-pin LVDS interface for stable signal transmission

• ✅ Panel-mount design for easy and secure installation

• ✅ Low power consumption: 5.0V typical operating voltage

Detailed Specifications

Applications

• Industrial control panels and automation systems

• Medical monitoring and diagnostic equipment

• Human-Machine Interface (HMI) devices

• Test and measurement instruments

• Transportation and aviation displays

• Kiosks and information terminals

Package Includes

• 1 × LQ190E1LW61 TFT LCD Module

• Datasheet and pinout diagram (upon request)

Ordering Information

For pricing, bulk orders, or customization options, please contact our sales team.
Model: LQ190E1LW61
