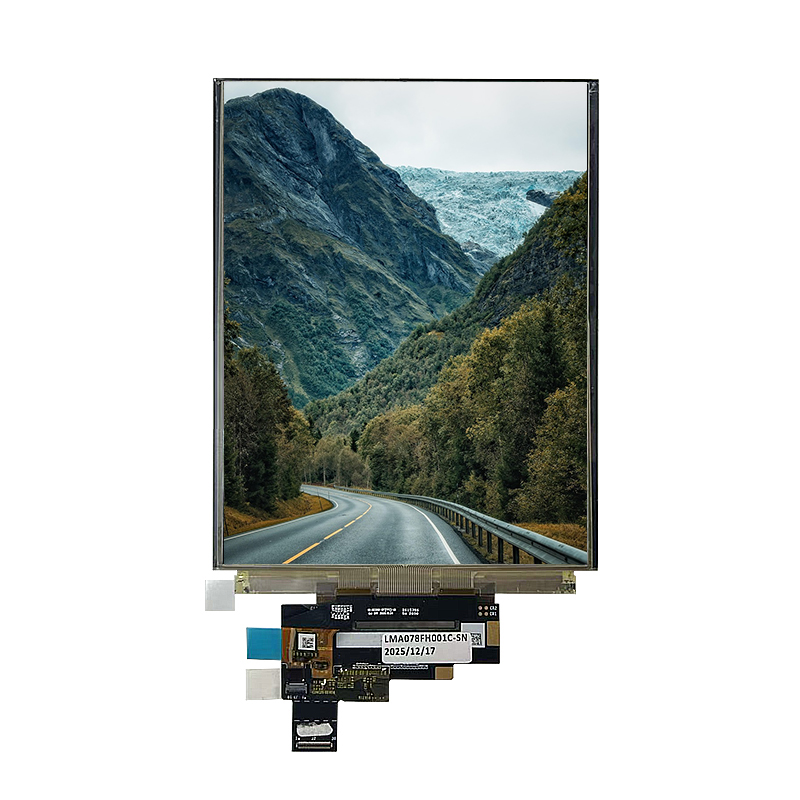

7.8-Inch Full HD AMOLED Capacitive Touch Display Module | LMA078FH001C-SN
Sleek, Vibrant, Touch-Perfected — A Visual and Interactive Solution Designed for Premium Devices

Key Features

• Stunning Visuals: 7.8-inch 1440x1920 (QXGA) high-resolution flexible AMOLED display with self-emissive pixels, delivering infinite contrast, true blacks, and breathtaking colors.

• Smooth Interaction: Integrated multi-touch capacitive touch panel (CTP) for fast response and seamless operation, enabling an immersive user experience.

• High-Efficiency Integration: Utilizes an 8-lane MIPI high-speed interface and a unified 62-pin FPC connector, simplifying design and enhancing transmission stability.

• Professional & Reliable: Wide operating temperature range (-20°C ~ +70°C), industrial-grade durability, supports optical bonding to meet demanding application environments.

Detailed Specifications

1. Display Core

• Model: LMA078FH001C-SN

• Display Type: 7.8-inch flexible AMOLED with On-Cell touch technology

• Resolution: 1440 (H) × 1920 (V) pixels

• Pixel Density: Approx. 308 PPI, sharp and clear detail

• Refresh Rate: 60Hz

• Viewing Angle: All angles (ALL), no color shift from any side

• Brightness: Typical 300 nits (full white screen), supports higher brightness customization

• Driver IC: RM69350

• Surface Treatment: Custom polarizer surface treatment, optional AG (anti-glare), AR (anti-reflection), etc.

2. Touch Function (CTP)

• Touch Type: Capacitive, On-Cell integrated

• Touch Structure: Without additional lens cover (can be customized by customer)

• Touch Controller IC: FT3558

• Touch Points: Supports multi-touch

• Transmittance: Excellent (specific value can be optimized based on bonding process)

• Surface Hardness: Optional (depends on final customer cover solution)

• Special Solution: Supports optical bonding, significantly improving visibility under bright light and overall strength

3. Interface & Electrical

• Display Interface: 8-lane MIPI DSI for high-speed data transmission

• Overall Interface: 62-pin Flexible Printed Circuit (FPC) connector, integrating display, touch, power, and backlight control

• Power Consumption: Typical approx. 2.7W @ 300 nits (full white screen)

• Environmental Standard: RoHS compliant

4. Physical & Environmental Characteristics

• Operating Temperature: -20°C ~ +70°C

• Storage Temperature: -30°C ~ +70°C

• Tolerance: General dimensional tolerance ±0.2mm

• Module Structure: Flexible AMOLED, enabling ultra-thin device design possibilities

Product Advantages

• Exceptional Image Quality: AMOLED technology ensures outstanding color performance, high contrast, and fast response for vivid and lifelike visuals.

• Compact Structure: The combination of flexible panel and On-Cell touch technology results in a thinner module, helping end products achieve an ultra-slim design.

• Excellent Outdoor Visibility: Supports optional optical bonding, which significantly reduces screen reflection and improves readability in outdoor or bright environments.

• High Reliability: Designed for a wide temperature range, suitable for various applications such as consumer electronics, industrial equipment, and medical instruments—stable and durable.

• Easy Integration: Standard MIPI interface and consolidated FPC greatly reduce driver and mechanical design complexity for engineers, accelerating time-to-market.

Typical Application Fields

• High-End Portable Devices: Professional tablets, advanced drawing tablets, portable gaming consoles

• Industrial & Medical: Industrial HMI, medical diagnostic device displays, portable monitoring instruments

• Smart Home: Premium smart home control panels, smart kitchen appliance interactive screens

• Commercial & Innovative Applications: Retail POS systems, interactive digital signage, specialized equipment displays

Ordering & Support

• This product is the standard model LMA078FH001C-SN, samples are welcome.

• We offer value-added services such as cover glass customization (2.5D/3D), optical bonding, FPC length adjustment, and connector location modification based on customer requirements.

• Complete technical documentation is provided, including datasheets, pinout definitions, driver guidelines, and mechanical drawings.
