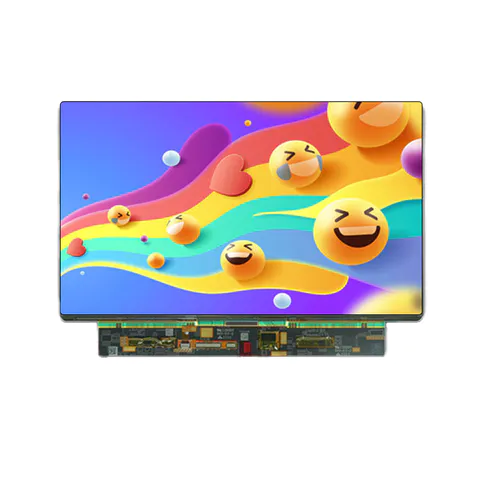

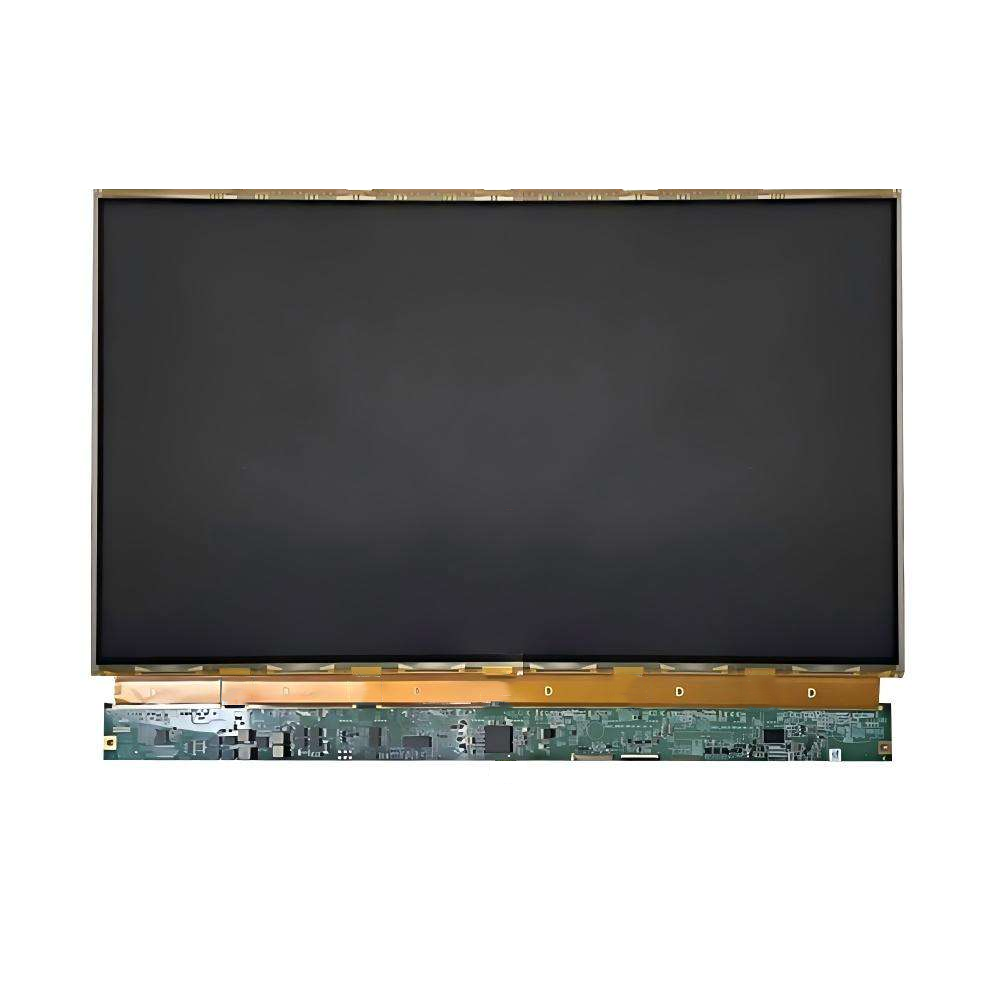

The LMA216SK002C is a 21.6‑inch AMOLED display module designed by EverDisplay Optronics (EDO). Featuring UHD 4K resolution (3840×2160), Real RGB pixel arrangement, and eDP 1.4b interface, it delivers exceptional image quality, wide color gamut, and high brightness — ideal for IFE systems, medical monitors, and industrial control panels.
| Parameter | Specification |
|---|---|
| Display Color | RGB 10 bits / 8 bits |
| Resolution | 3840 × 2160 (UHD) |
| Aspect Ratio | 16:9 |
| Pixel Arrangement | Real RGB (4Bin1 Type) |
| Active Area | 478.08 (H) × 268.92 (V) mm |
| Diagonal Size | 21.6 inch |
| Pixel Pitch | 0.1245 × 0.1245 mm |
| Brightness | 700 cd/m² (typical) |
| Interface | eDP 1.4b |
| Driver Element | LTPS TFT active matrix |
| Display Mode | OLED |
| Surface Treatment | Glare |
| Module Type | FOG (Film on Glass) |
| Item | Specification | Unit |
|---|---|---|
| Outline Dimensions (Panel Area, without edge sealing) | 488.08 × 278.92 | mm |
| Thickness (Panel) | 1.206 | mm |
| Weight (Panel + TCON) | 427 (reference) | g |
| Glass thickness | 0.5 mm (LTPS / Real RGB) | mm |
eDP 1.4b interface supports high‑speed transmission for 4K@60Hz and beyond.
LTPS TFT backplane enables high pixel density and low power consumption.
TCON integrated (weight includes TCON board).
No touch (touch technology not implemented on this model).
Real RGB pixel arrangement eliminates colour fringing typical of PenTile or diamond layouts — critical for text and fine graphics.
10‑bit colour depth (also compatible with 8‑bit) delivers smooth gradients and professional colour accuracy.
700 cd/m² brightness ensures clear visibility in bright cabin or operating room environments.
Glare surface provides high contrast and vivid colour saturation.
| Item | Description |
|---|---|
| Manufacturer | EverDisplay Optronics (EDO) |
| Scope | Full AMOLED module specification by EDO |
| Unspecified Items | To be agreed between EDO and customer |
| RoHS / REACH | Available upon request |
| Market | Use Case |
|---|---|
| In‑Flight Entertainment (IFE) | Seat‑back screens, cabin crew displays |
| Medical | Surgical monitors, diagnostic displays |
| Industrial | Control rooms, high‑end HMI |
| Professional AV | Reference monitors, broadcast |
| Benefit | Explanation |
|---|---|
| True 4K OLED | Real RGB structure avoids text fringing |
| Bright & durable | 700 cd/m², LTPS backplane, low power |
| IFE‑ready | eDP 1.4b interface, glare finish for high contrast |
| Thin & light | 1.206 mm thickness, 427 g (including TCON) |
| Proven EDO quality | Manufactured by EverDisplay Optronics |
Datasheet – Full electrical, timing, and optical specifications available under NDA.
Samples – Contact EDO or authorised distributor.
Compliance – RoHS, REACH, and reliability test reports provided upon request.
