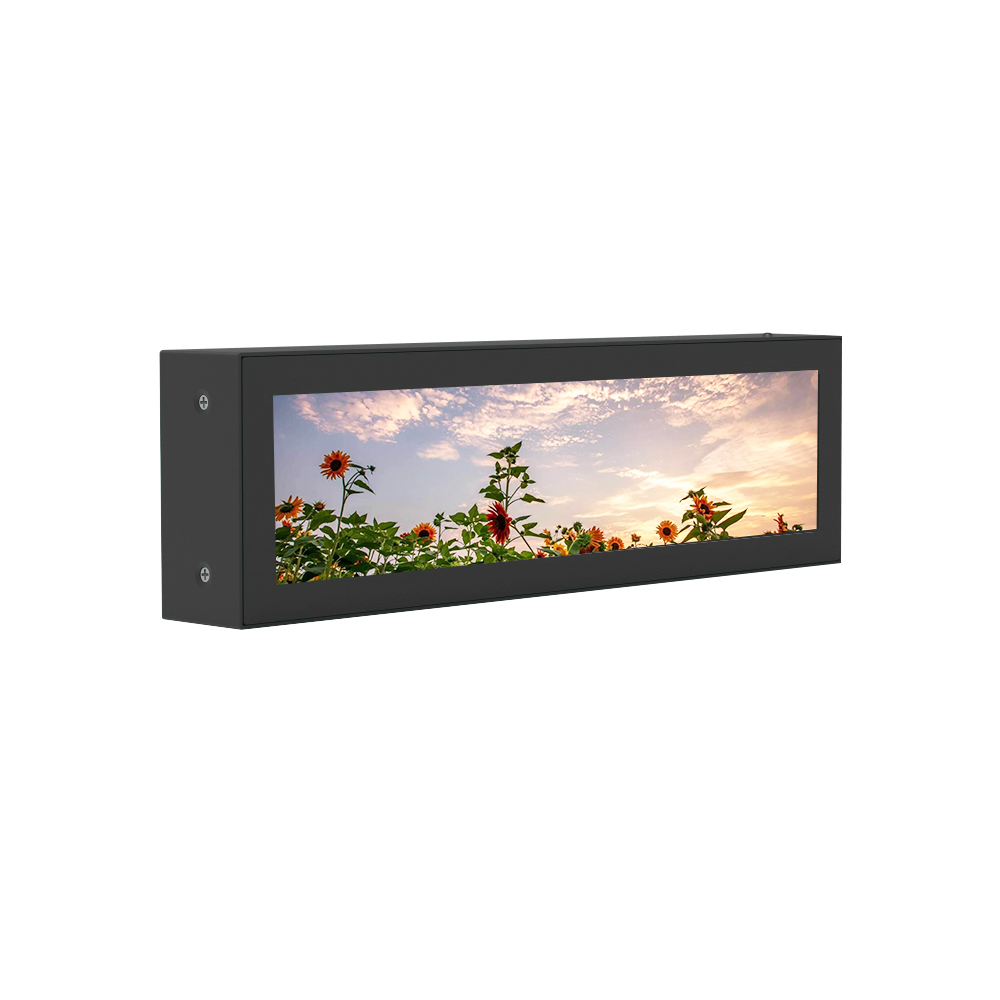

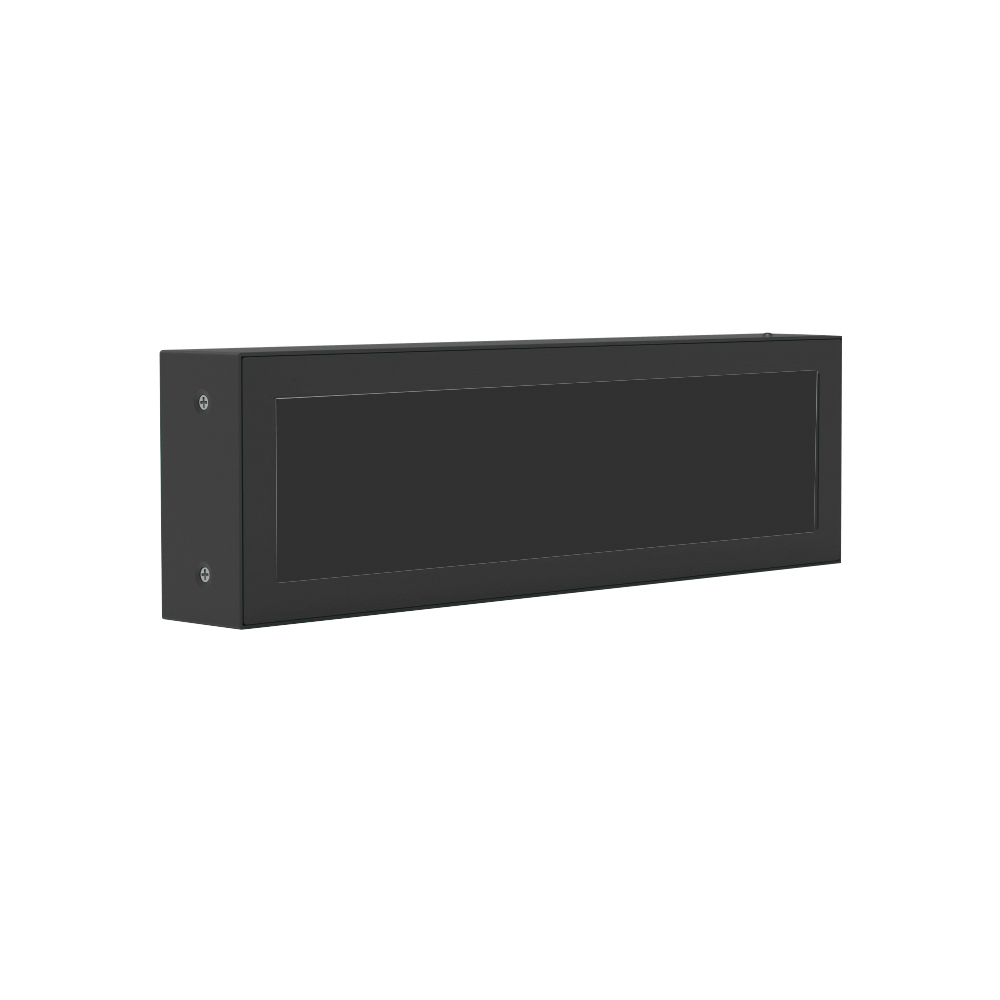

      8.8 Inch Bar LCD Display
      B站不支持收货地址
      B站不支持库存规格
      Backlight
      LED
      Surface Luminance
      500 Cd/m²
      Operating Temp
      0-50 ℃
      Resolution
      1920*480 Pixel
      Size (inch)
      8.8"
      LCD Mall Model No
      LMM088001
      参数暂无数据
      多属性暂无数据
      B站不支持优惠卷
      暂无分享
      B站不支持产品保障






      8.8”

      10.T.T08800S48001-1

      Specifications

      Units/Number

      Notes

      Overall size
      240.6(L)*69.6(V)*16（W）
      MM

      shell material
      Black fine sand texture


      Weight
      /
      kg





      Screen parameters
      Display area
      218.8(L)*54.72(V)
      MM

      resolution
      1920*480
      Pixel

      Brightness
      500
      Cd/m²

      Contrast ratio
      800:1
      -

      Display scale
      16:4
      -

      Viewing angle
      85/85/85/85
      -

      Pixel pitch
      /
      MM

      Display color
      16.7
      B


      Electrical parameters
      Maximum power
      ≤35
      W

      Standby power
      ≤1
      W

      Supply Voltage
      5V
      V

      Horn
      /
      -



      working storage
      Operating temperature
      0-50
      ℃

      Working humidity
      10％～80％
      %hr

      Storage Humidity
      -20-50
      ℃

      Storage humidity
      10％～80％
      %hr

      Power interface
      DC 12V 5A
