(LCD screen parameters) | （Panel size） | （23.8 inches） | ||||||||||||||
| (Resolution) | 1920(RGB)×1080, FHD | |||||||||||||||
| (Point spacing) | 0.0915×0.2745(H×V)mm | |||||||||||||||
| (Display Brightness) | 300 cd/m² （Spport ODM 300-1500cd/m2) | |||||||||||||||
| (viewing angle) | 89/89/89/89 (Typ.)(CR≥10) | |||||||||||||||
| (Color Quantity) | 16.7M , 70% NTSC | |||||||||||||||
| （Refresh rate） | 75Hz | |||||||||||||||
| (Contrast ratio) | 1200:1 | |||||||||||||||
| (Screen ratio) | 16:9 | |||||||||||||||
| (Response time) | 14 (Typ.)(G to G) ms | |||||||||||||||
| (Panel Type) | IPS | |||||||||||||||
| (Operation temperature) | 0 ~ 50 °C | |||||||||||||||
| (Storage temperature) | -20 ~ 60 °C | |||||||||||||||
| （Power consumption） | ＜40W | |||||||||||||||

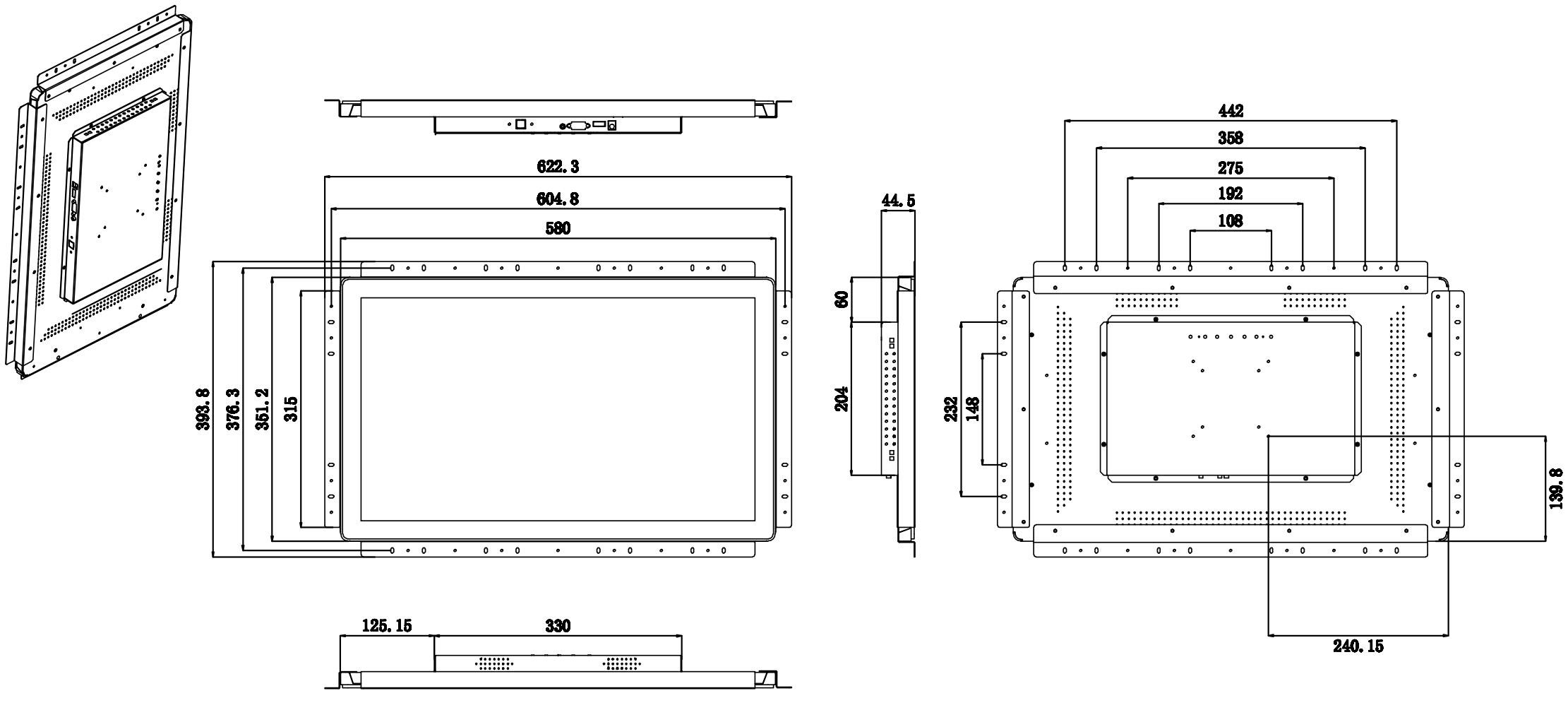

| （Other） | （Installation method） | （Wall mounted, embedded, and ear mounted） | ||||||||||||||
| (Reference System) | (Windows system, Raspberry Pi, Android system, Linux system) | |||||||||||||||
| （Touch screen parameters） | (Touch type) | (G+G capacitor ten point touch screen) | ||||||||||||||
| (Input method） | (Use fingers or touch pens to make contact with conductors for operation) | |||||||||||||||
| （Service life） | (>50 million times) | |||||||||||||||
| (transmittance) | ＞86% | |||||||||||||||
| (Surface hardness) | ＞6H | |||||||||||||||
| (Working voltage ) | 5.0V | |||||||||||||||

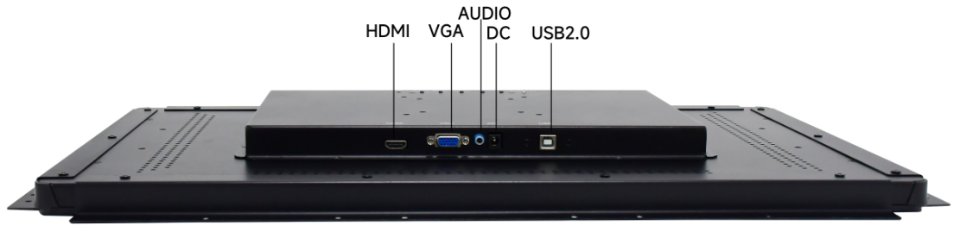

Product interface | （HDMI interface） | 1（HDMI 2.0） | ||||||||||||||
| VGA interface） | 1 | |||||||||||||||
| （Audio Interface） | 1 | |||||||||||||||
| (Power socket） | 1 DC5.5*2.1 | |||||||||||||||
| （USB interface） | 1（USB 2.0) | |||||||||||||||
