1.69-inch NFC E-Ink Phone Case, Model LME017HV002R

Product Introduction

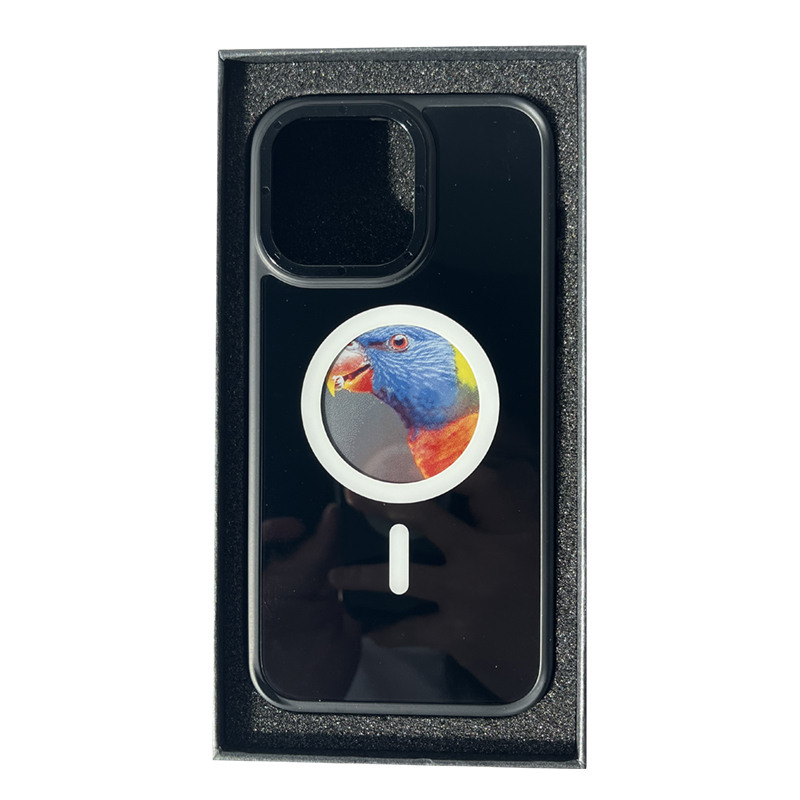

Model LME017HV002R is a passive NFC electronic ink screen phone case specially designed for the entire iPhone 15 lineup, including iPhone 15, 15 Plus, 15 Pro and 15 Pro Max. Equipped with a 1.69-inch six-color EPD screen (black, white, red, yellow, blue, green) at 400*400 resolution and 236 DPI, this case requires no built-in battery. It obtains power through 13.56MHz passive NFC RF induction and supports contact-type NFC data transfer.

Product Specifications

Appearance& Structure
Adaptive Model	Iphone15/ 15 Plus/ 15 Pro / 15 Pro Max
Outer dimension	Iphone 15: *76.2152.313.2mm* Iphone 15 *Pro: 75.3151.3*13.7mm Iphone 15 Pro Max: 80.5163.714.5mm**
Weight	57.5g（Iphone 15 Pro Max）

Case color	Black 、white、pink(different color shells can be customized according to needs)
Material	TPU+PC
Hardware parameters
Displayscreen	1.69inch , black/white/red/yello/blue/green EPD
Resolution	*400400**
DPI	236
Power Supply	NFC RF induction power supply
NFC	Passive NFC, 13.56MHz；
Transmission range	Contact-type
Working temperature	0℃~40℃
Storage temperature	-25℃~60℃
Working/Stor age humidity	45%~70%
Software function
Updating Mode	Transmitting images using mobile phones, handheld devices, and card readers via NFC communication
APP support language	The APP currently supports the following languages: Simplified Chinese, Traditional Chinese, English, French, Spanish, Portuguese Russian， German, Arabic, Japanese, Korean and Italian
Support mobile phone system version	IOS
Image transmission time	3-6s
Response time	5-8s
Adapt to APP	InkCute

Appearance & Construction

Made of combined TPU and PC materials, the case comes in standard black, white and pink, with custom color options available. It has precise tailored dimensions for each iPhone 15 variant, and the version for iPhone 15 Pro Max weighs only 57.5g, lightweight and comfortable to hold. It operates stably at 0°C to 40°C, and can be stored safely within -25°C to 60°C, with applicable working and storage humidity ranging from 45% to 70%.

Core Functional Features

NFC Contact Image Refresh
Users can upload and update custom patterns via NFC with iOS smartphones, handheld terminals or card readers. The image transmission takes 3–6 seconds, and the screen response time is 5–8 seconds.
Multilingual iOS APP Support
The matching iOS application supports 12 global mainstream languages: Simplified Chinese, Traditional Chinese, English, French, Spanish, Portuguese, Russian, German, Arabic, Japanese, Korean and Italian, catering to global users.
Battery-Free Passive Design
No charging or battery replacement is needed. The e-paper screen can retain displayed images permanently after power cut, with zero power consumption in standby state.

Main Application Scenarios

Personal customizable phone accessories, brand promotional gifts, corporate customized merchandise, creative digital decorative phone cases, personalized identity display shells and retail customized electronic peripheral products.
