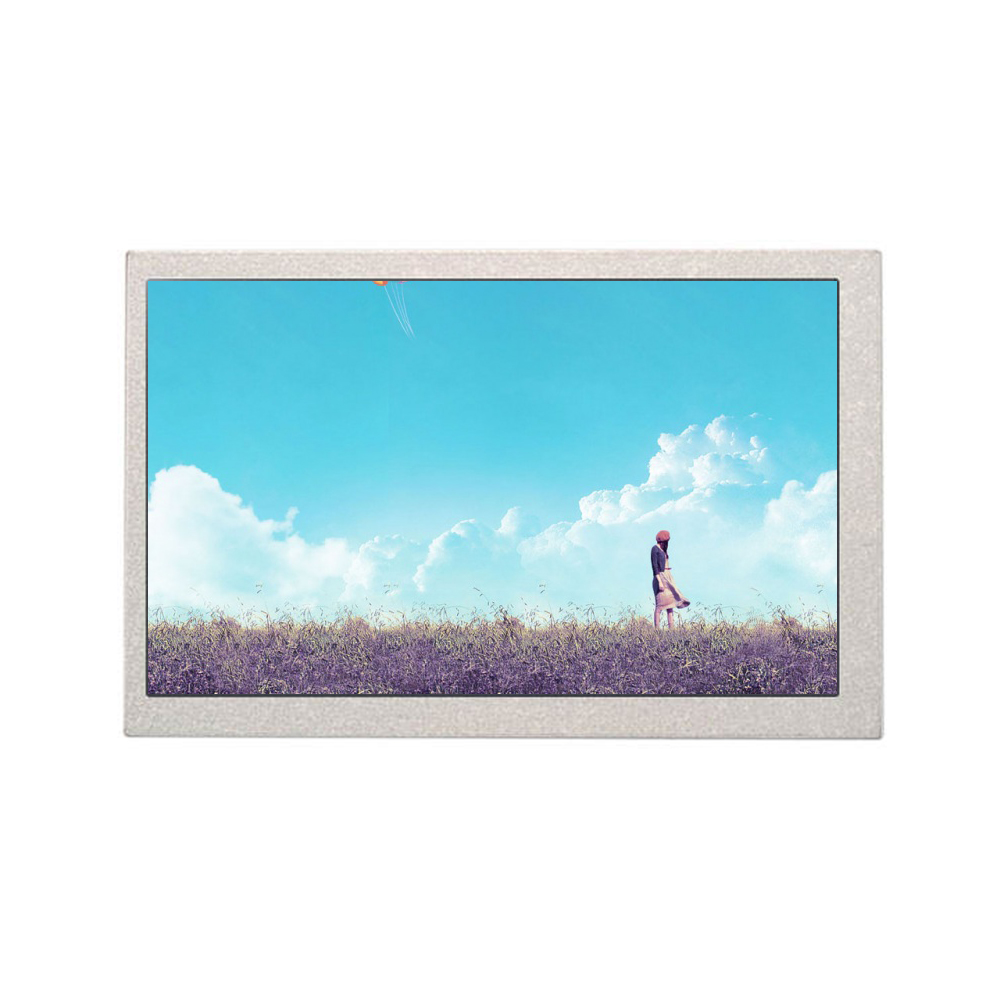

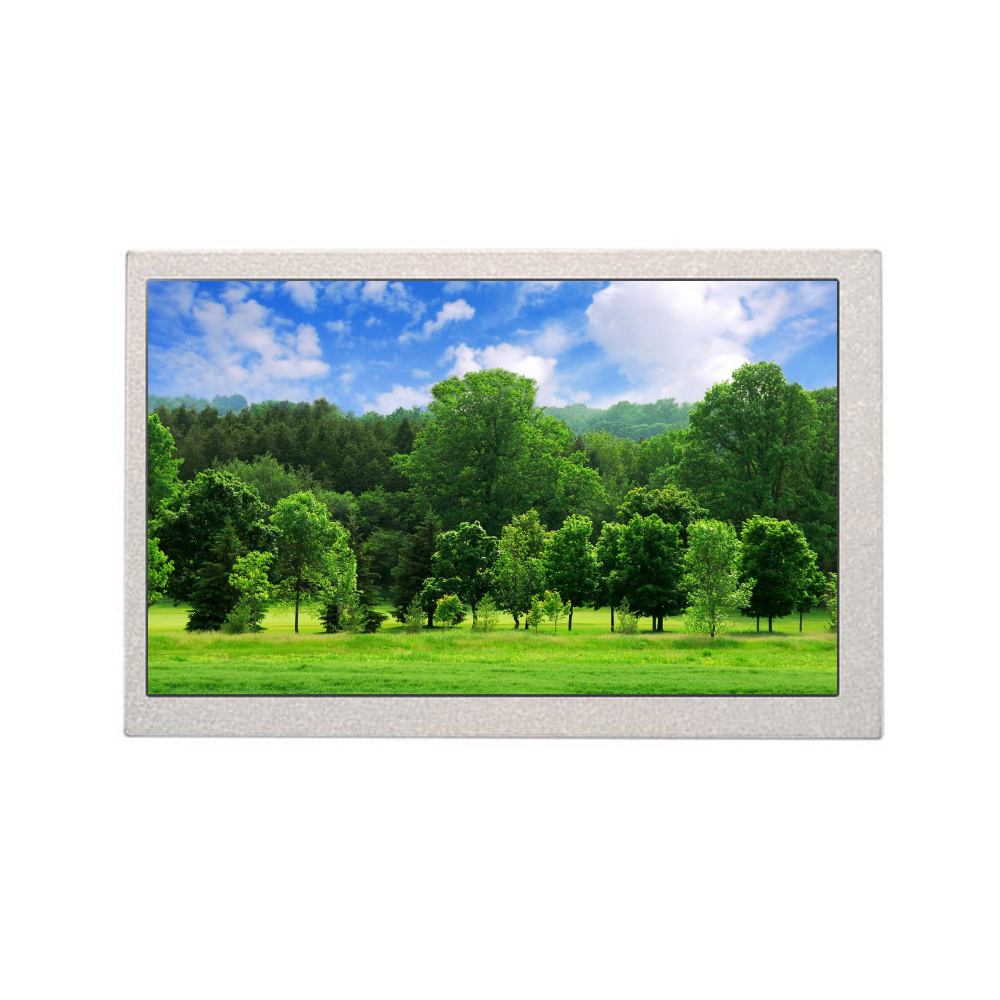

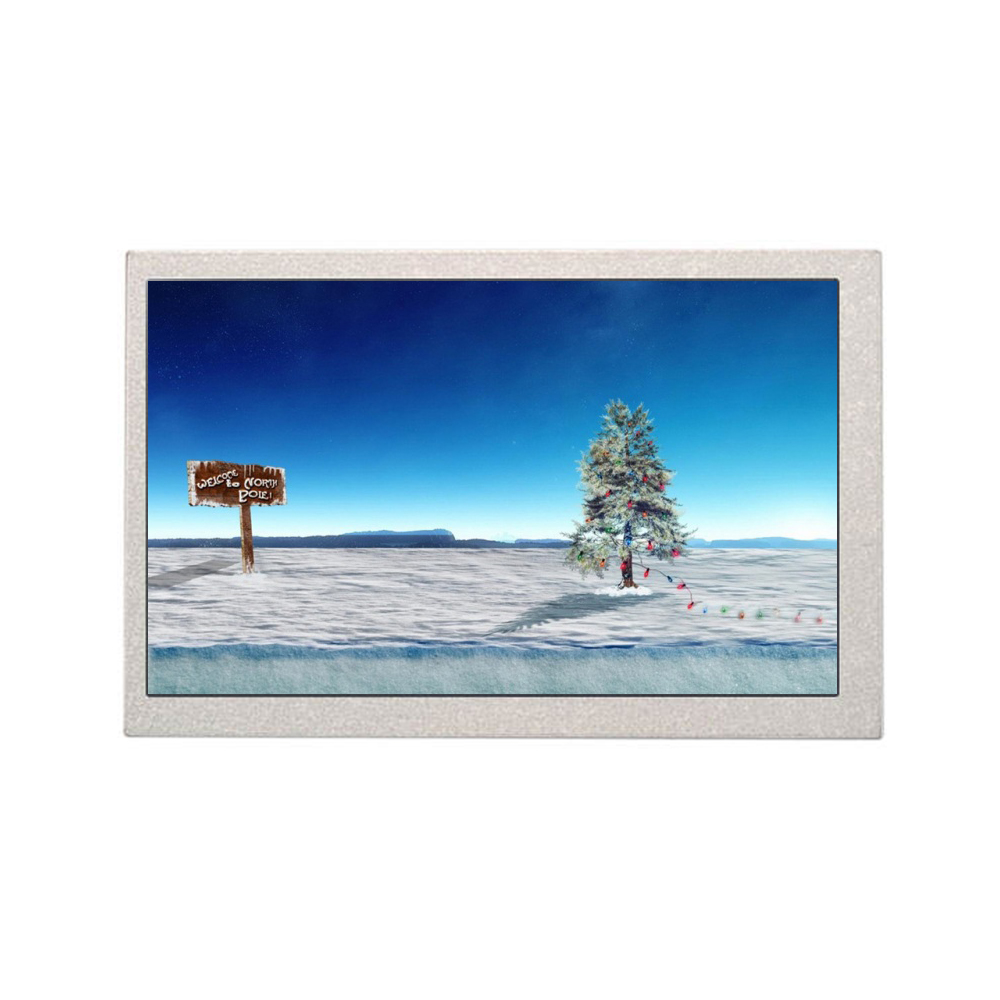

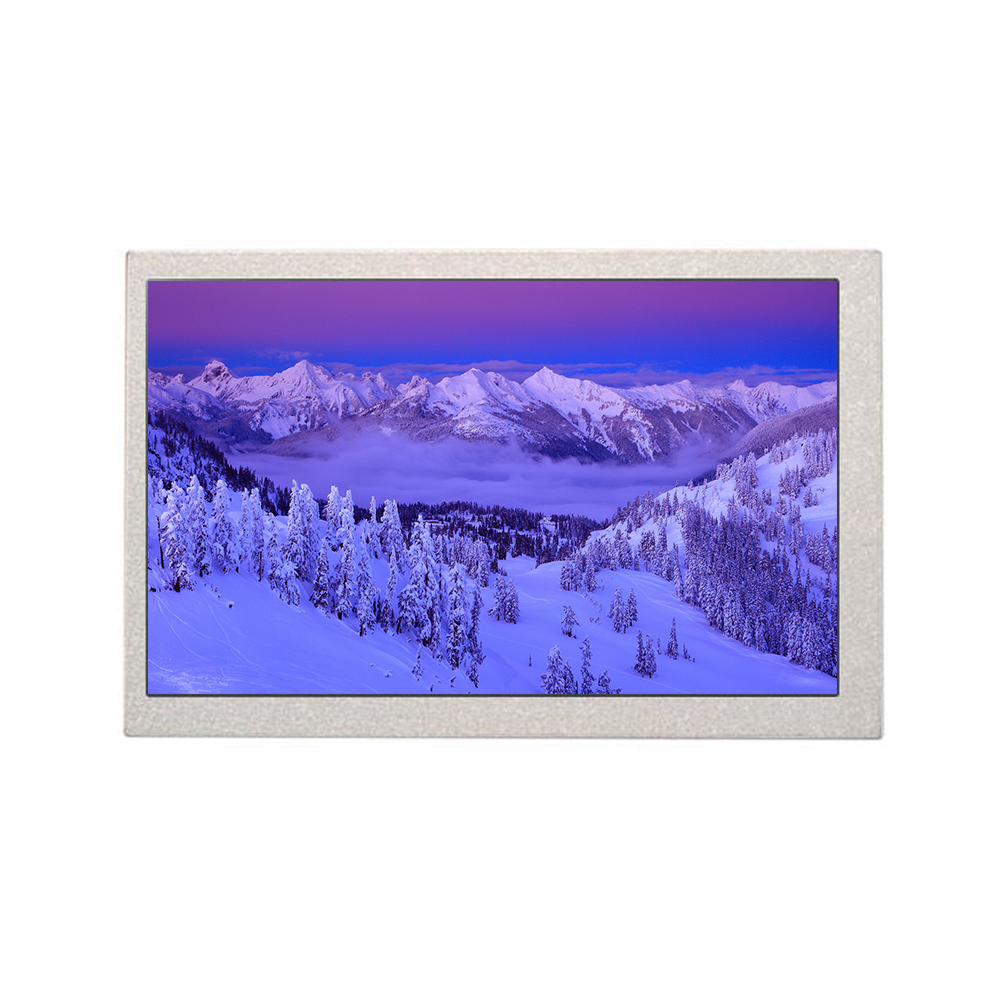

      TIANMA SFT 10.1 Inch 1000 Cd/m² LVDS Interface LCD Screen 1200*800 Display Panel TFT LCD Module
      B站不支持收货地址
      B站不支持库存规格
      Surface Luminance
      1000 cd/m² (Typ.)
      Operating Temp
      -20℃ ~ 70 °C
      Resolution
      1280(RGB)*800
      Size (inch)
      10.1 inch TFT
      LCD TYPE
      a-Si TFT-LCD, LCD Module
      LCM OD sizes
      229.8(W)*149(H)*9.61(D) mm
      Viewing Direction
      ALL/IPS
      LCM Interface
      LVDS
      LCD Mall Model No
      TM101JDHG32-00
      参数暂无数据
      多属性暂无数据
      B站不支持优惠卷
      暂无分享
      B站不支持产品保障
      Product Name
      TIANMA 10.1 Inch SFT LCD Screen 1200*800 Display Panel 1000 Cd/m² LVDS Interface TFT LCD Module
      Size
      10.1 inch
      Pixel
      1200*800
      Interface
      LVDS
      Display Type
      TFT
      Screen Size
      10.1 inch
      Communication interface
      LVDS
      Model Number
      TM101JDHG32-00
      Panel Size
      10.1"
      Panel Type
      a-Si TFT-LCD, LCD Module
      Resolution
      1280(RGB)*800, WXGA, 149PPI
      Pixel Layout
      RGB vertical stripe
      DISPLAY AREA
      216.96(W)*135.6(H) mm

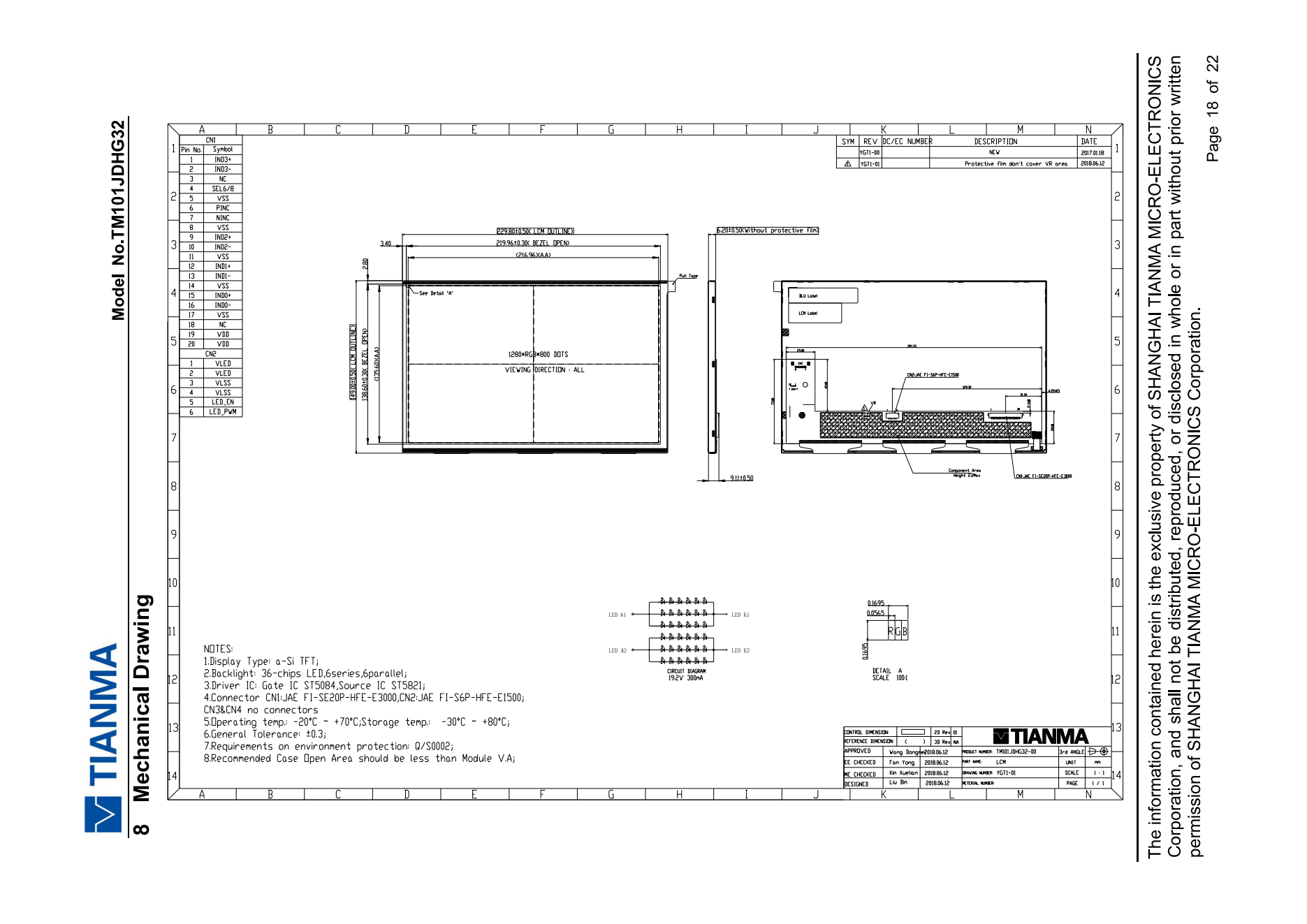

      Outline Dimension
      229.8(W)*149(H)*9.61(D) mm
      Display Luminance
      1000 cd/m² (Typ.)
      Contrast Ratio
      700:1 (Typ.) (Transmission)
      Recommended Perspective
      Full Viewing
