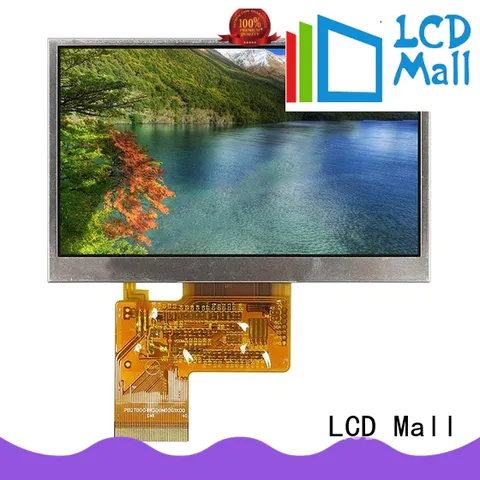

| Pin No. | Symbol | Description |
| 1 | LED- | Cathode of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Red data bus |
| 13~20 | G0~G7 | Green data bus |
| 21~28 | B0~B7 | Blue data bus |
| 29 | GND | Power ground |
| 30 | PCLK | Clock pin of serial interface |
| 31 | DISP | Display on/off mode control |
| 32 | HSYNC | Horizontal sync signal; negative polarity |
| 33 | VSYNC | Vertical sync signal; negative polarity |
| 34 | DE | Data enable signal for RGB interface operation |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37 | NC(XR) | No connect |
| 38 | NC(YD) | No connect |
| 39 | NC(XL) | No connect |
| 40 | NC(YU) | No connect |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -30 | 85 | ℃ | ||
| Storage Temperature | TST | -40 | 85 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VCC | -0.3 | 4.5 | V | ||
| Supply current (One LED) | ILED | 30 | mA |
