Display
parameters | Data | Instructions |
Display size | 7 inch | 16 ：9 |
Resolution | 1024*600 |
|
Colors | 16.7M | - |
Display size | 154.4(H)*86.2(W) mm | - |
Backlight
brightness | 300-1000 n it | The brightness can be adjusted by software |
Backlight lifetime
(Hrs) | 50000Hrs | LED backlight |
Viewing
direction(CR>10) | All view direction |
|
Touch type | Capacitive touch panel | Support single or 5 point touch |
Working life | Single point can affordable≥50 million times |
|
Response time | 8ms |
|

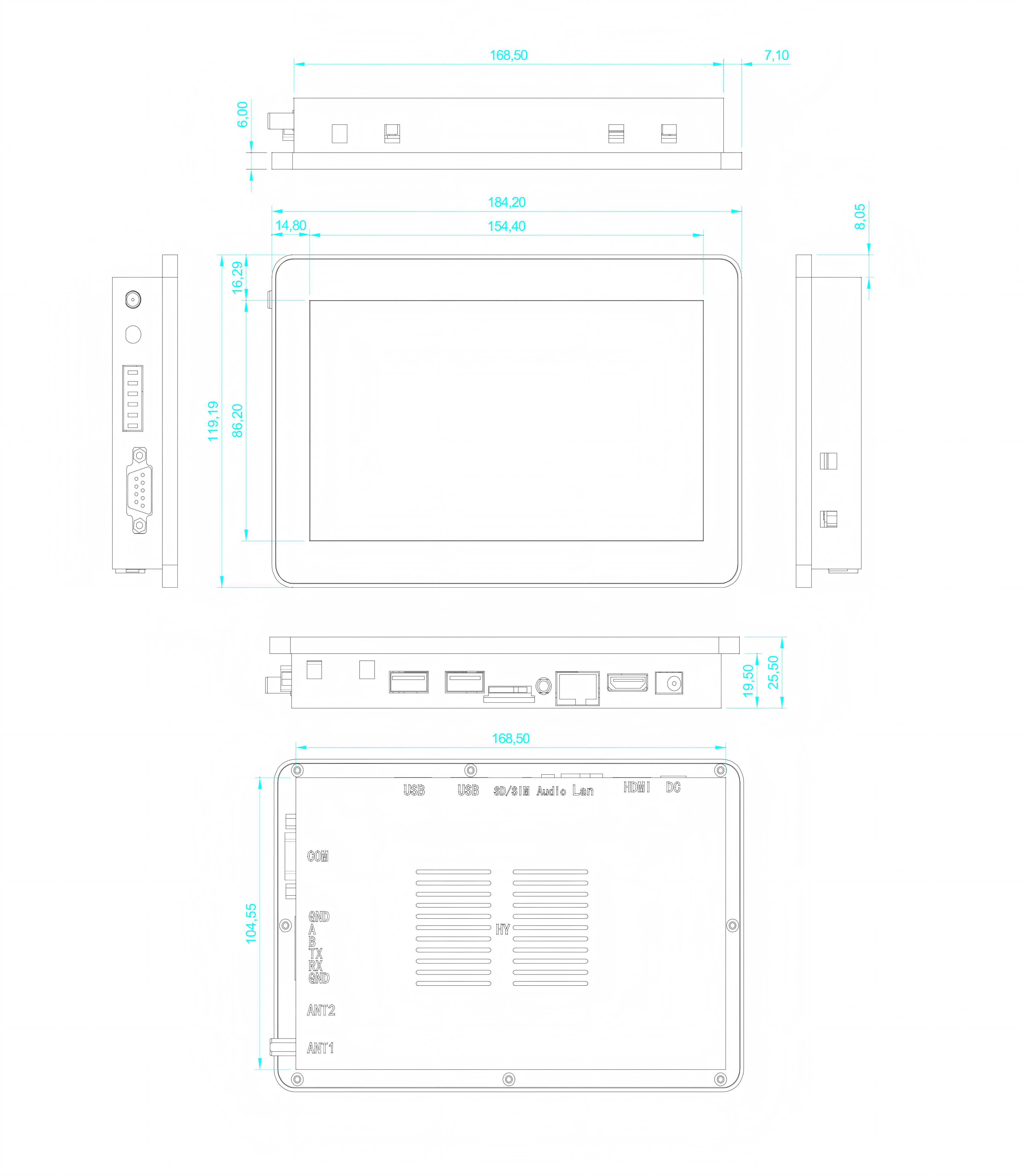

Case size | 184.2*119. 19*25.5 mm |
|
Hardware Specs | Main Hardware Indicators |
|
CPU | A40I ，Cortex-A7, main frequency 1.2G |
|
Memory | DDR3 1G |
|
Storage | EMMC FLASH 16G (the maximum can be extended to 32G) |
|
GPU | / |
|
WI FI | Built-in WI FI or WI FI/BT mode（ can choice one of the two）， 802.11b/g/n, default single WI FI mode. |
|
Bluetooth | / |
|
Operation system | Android 7.1.1 |
|
Others | Support RTC real-time clock, 、timing switch |
|
Language | Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages. |
|

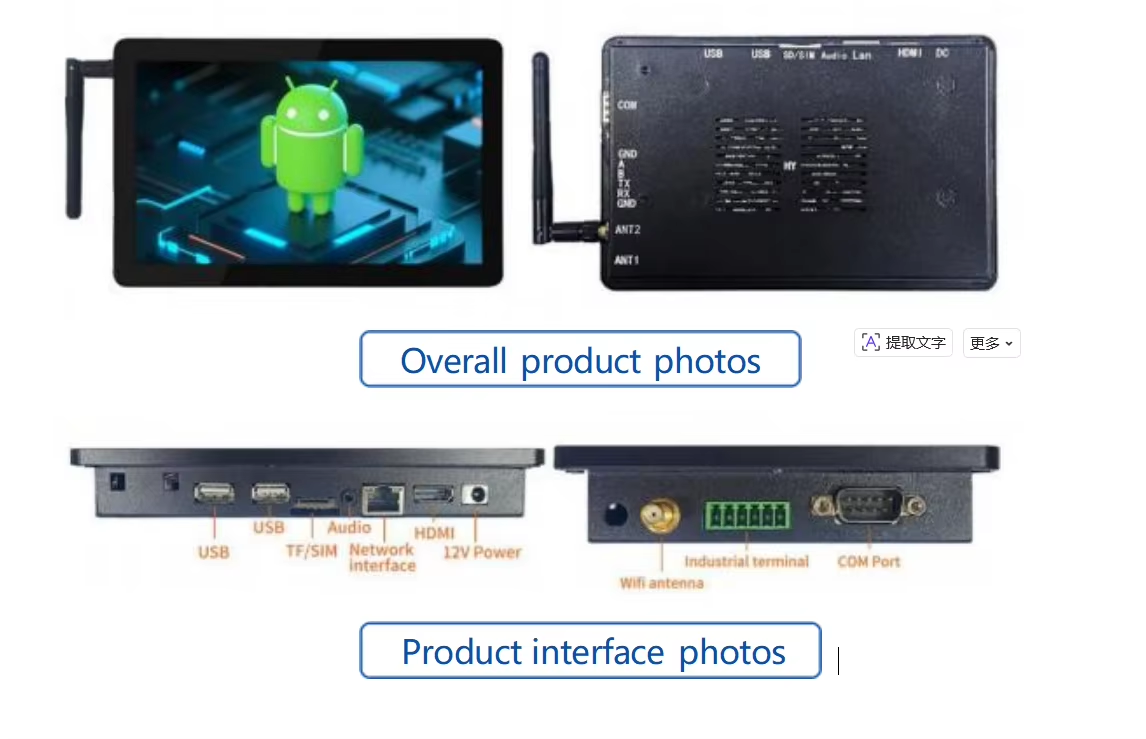

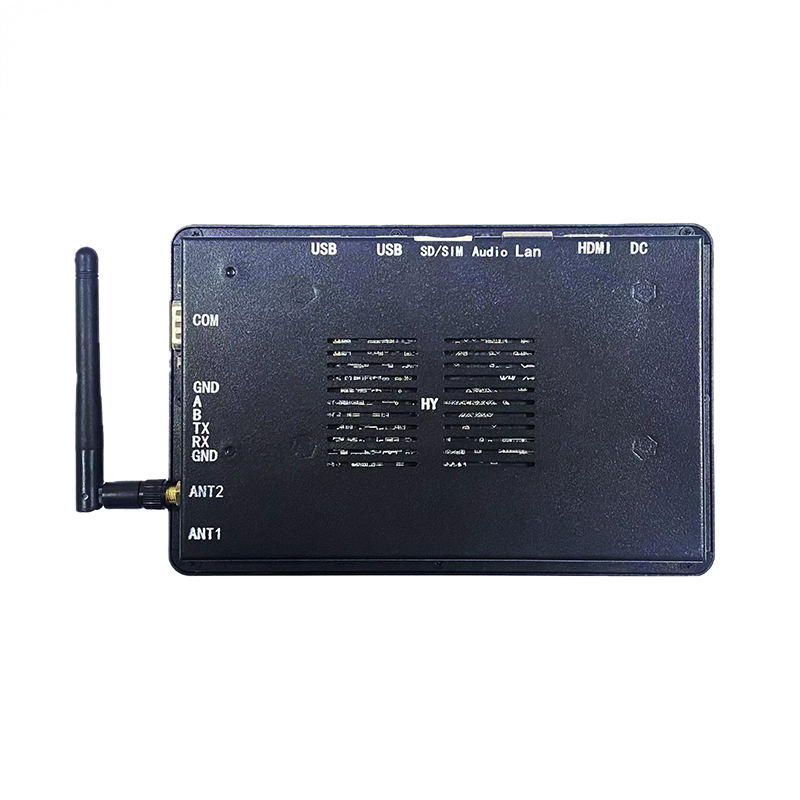

Interface parameters |
|
Power interface | 1 external DC12V input socket and one built-in 6P input socket(including external power STANDBY function) |
|
USB | 6*USB HOST (two external ，four built-in) |
|
TF card | 1*TF card standard interface |
|
SIM Card | / |
|
HDMI | 1*HDMI A type standard interface output |
|
Net interface | One standard external RJ45 interface. |
|
Audio/video
output | Support left and right channel output, built-in dual 8R/5 power amplifier |
|
Reset key | Support（1*UBOOT） |
|
COM | 2*RS232(Optional RS485,TTL) |
|
WI FI Antenna | 1*Wi Fi antenna |
|
Reliability parameters |
|
Working
temperature | -20°C~70°C |
|
Storage
temperature | - 30°C~80°C |
|
Relative humidity | Humidity: 90%, Temperature： 50℃ |
|
Vibration
protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X、Y、Z each 3H |
|
Product
certification | CCC/CE/FCC/EMC/CB/ROHS |
|
Front waterproof rating | The front panel can reach IP65 protected rating |
|
