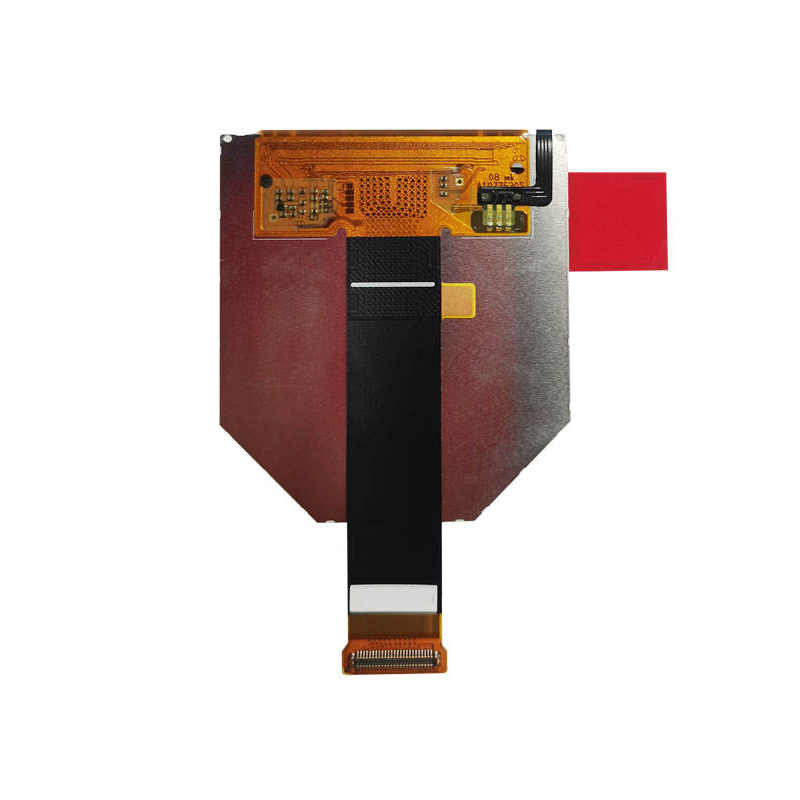

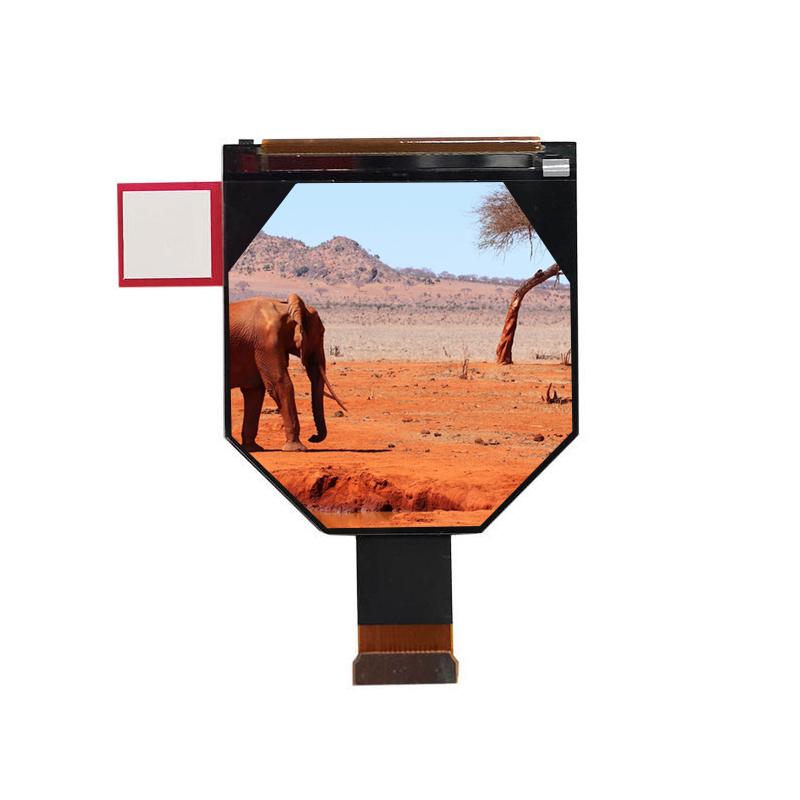

The LPM021M528C is a 2.1-inch ultra-high-resolution TFT LCD module designed for applications demanding exceptional pixel density and clarity. With an impressive 1600×1600 resolution and 1058 PPI, this module delivers razor-sharp images and vibrant colors. Built with In-Plane Switching (IPS) technology, it offers wide viewing angles and consistent color performance across all directions. The module features a compact form factor, making it ideal for space-constrained devices requiring premium display quality.
✅ Ultra-High Resolution: 1600×1600 pixels (2.1-inch) with 1058 PPI
✅ IPS Technology: Wide viewing angles and excellent color consistency
✅ High Color Depth: 16.77 million colors for rich, accurate color reproduction
✅ Dual Interface Support: MIPI-DSI Video mode (4-Lane × 2-Port) with/without data compression
✅ Compact & Lightweight: Module dimensions 41.2×45.3×1.65 mm, weighing only 5.9g
✅ High-Brightness LED Backlight: 8 LEDs (2-in-1) configuration with 4 series 2 strings design
✅ Low Power Design: Separate power domains for efficient operation
✅ Advanced Driver IC: R63455 controller with column inversion for reduced visual artifacts
| Parameter | Specification |
|---|---|
| Model Number | LPM021M528C |
| Display Size | 2.1 inches |
| Resolution | 1600 × 3(RGB) × 1600 dots |
| Pixel Density | 1058 PPI |
| Active Area | 38.4 × 38.4 mm (with C-cut) |
| Pixel Pitch | 0.024 × 0.024 mm |
| Display Mode | Transmissive, Normally Black, In-Plane Switching |
| Color Support | 16,777,216 colors |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Direction | All directions |
| Interface | MIPI-DSI (4-Lane × 2-Port / 4-Lane × 1-Port with compression) |
| Driver IC | R63455 |
| Inversion Method | Column Inversion |
| Backlight Type | LED (8 pcs, 2-in-1; 4 series 2 strings) |
| Power Supply | VSP = 5.7V±0.1V, VSN = -5.7V±0.1V |
| I/O Voltage | IOVCC = 1.8V±0.1V |
| Module Dimensions | 41.2(W) × 45.3(H) × 1.65(t) mm (excl. FPC/film) |
| Weight | 5.9g (typical) |
With 1058 pixels per inch, the LPM021M528C delivers exceptional detail and text clarity, making it perfect for applications requiring fine detail representation.
IPS technology ensures consistent colors and excellent viewing angles from all directions, maintaining image integrity regardless of viewing position.
Supports both uncompressed (4-Lane × 2-Port) and compressed (4-Lane × 1-Port) MIPI-DSI video modes, providing flexibility for different system architectures.
Separate analog (VSP/VSN) and digital (IOVCC) power domains allow for optimized power management and reduced electromagnetic interference.
The slim profile (1.65mm thickness) and lightweight construction make this module ideal for portable and embedded applications where space is at a premium.
Medical imaging devices (endoscopes, surgical displays)
Industrial inspection equipment
High-resolution viewfinders (professional cameras, VR/AR)
Portable diagnostic instruments
Scientific and measurement instruments
Premium wearable devices requiring high pixel density
Operating Voltage:
Analog: VSP = +5.7V ±0.1V, VSN = -5.7V ±0.1V
Digital: IOVCC = 1.8V ±0.1V (must match host interface voltage)
Backlight Configuration: 8 LEDs (2-in-1 package), 4 series × 2 strings
Interface Standard: MIPI DSI compliant
1 × LPM021M528C LCD Module
Technical datasheet (available upon request)
For samples, volume pricing, or custom configuration inquiries, please contact our sales team.
Model: LPM021M528C
