DESCRIPTION

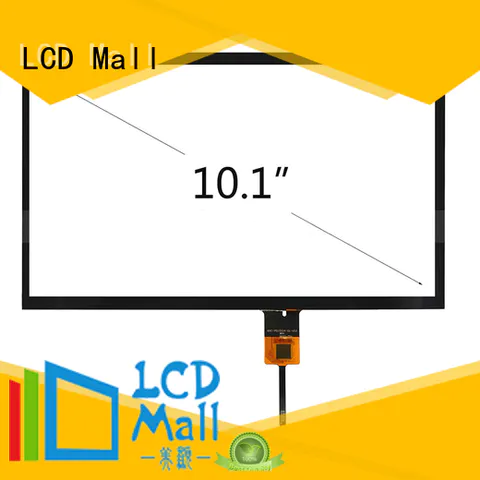

P-cap Touch is also knowed as capacitive touch, CTP, is most popular touch solution in the world. Our touch sizes cover 3.5inch, 4.3inch, 5.0 inch, 7.0inch, 10.1inch, 10.4inch, 12.1inch, 15inch, 15.6inch, 17inch, 19inch, 21.5inch, 23inch, 26inch, 32inch etc, resolution can reach HD (720*1280) and FHD (1920*1080), support customer design coverglass, surface AG (anti-glare), AR (anti-reflection), AF (Anti-fingerprint) treatment, P-cap touch with IIC (I2C) or USB interface; we have special touch controller solution can support 7-8mm coverglass workable, water-proof workable, support gloves workable, and operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Please kindly contact us now for more information!
DRAWING
LCM Mechanical Diagram
Item | Dimension | Unit | ||||||
Size | inch | |||||||
Dot Matrix | dots | |||||||
Module dimension | mm | |||||||
Active area | mm | |||||||
Dot pitch | mm | |||||||
LCD type | ||||||||
View Direction | ||||||||
Backlight Type | ||||||||
LCD Controller IC | ||||||||
LCD Interface | ||||||||
Touch Panel | ||||||||
Surface |
Item | Symbol | Min | Typ | Max | Unit | |
Operating Temperature | TOP | -20 | 70 | ℃ | ||
Storage Temperature | TST | -30 | 80 | ℃ |
Item | Symbol | Condition | Min | Typ | Max | Unit |
System Power Supply Voltage | VDD | |||||
LCD Driver Supply Voltage | VOUTIN |
