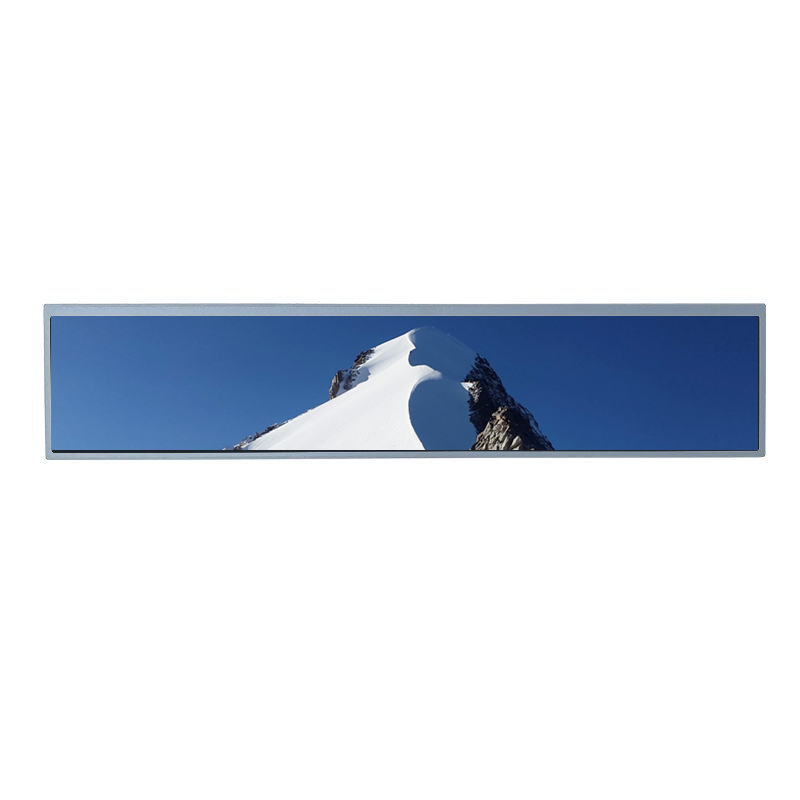

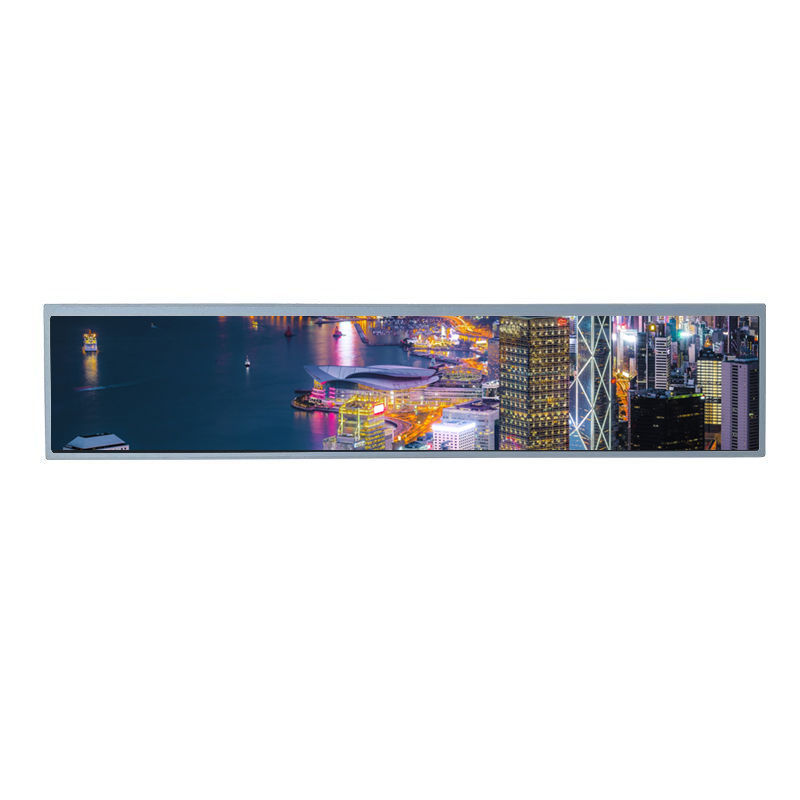

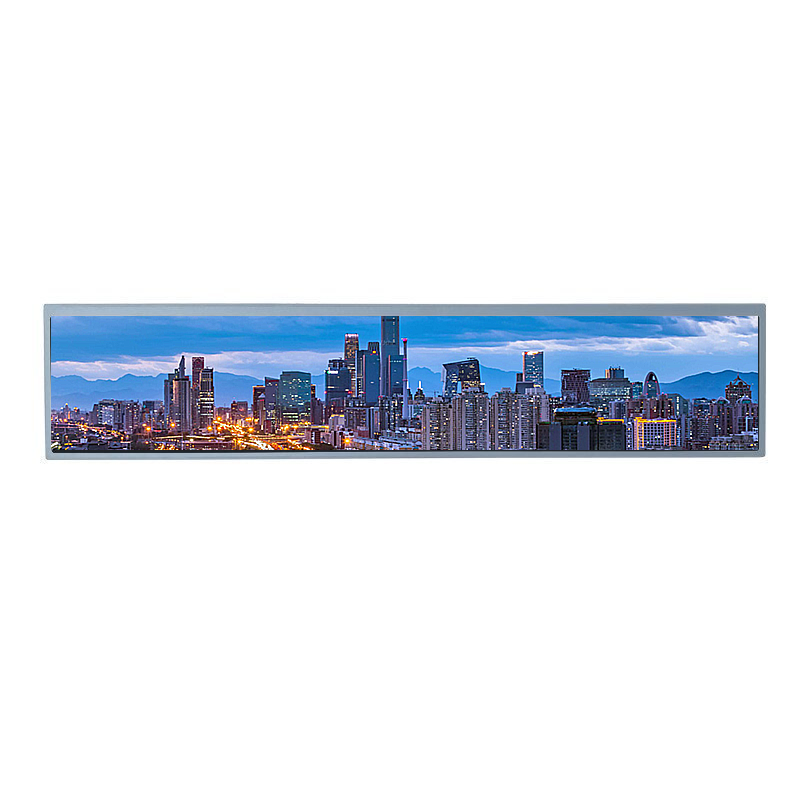

The LMT240FH001C is a 24.0-inch stretched bar type TFT-LCD module (1/3 cut of 27.0"), specifically engineered for commercial and industrial display applications. Featuring a high resolution of 1920(RGB)×360 with a wide aspect ratio (>3:1), this module delivers crisp and detailed visual performance. It utilizes an ADS, Normally Black, Transmissive display mode, offering excellent symmetry with a wide viewing angle of 89/89/89/89 and a high contrast ratio of 1200:1.
With a brightness of 300 cd/m² and support for 16.7M colors (72% NTSC), it ensures vivid and accurate color reproduction. The module is equipped with an LVDS (2 ch, 8-bit) 30-pin interface and operates on a 5.0V input voltage, ensuring seamless integration. Its compact outline size of 612.7(W)×132.1(H)×13.3(D) mm and lightweight design (1.35Kgs) make it ideal for space-constrained installations. Designed for reliable indoor performance, it operates within a temperature range of 0 ~ 50 °C.
Key Applications:
Perfect for digital signage, shelf-edge displays, transportation information systems, and industrial control panels requiring a wide-format, high-resolution display solution.
| Display Size | Panel Type |
|---|---|
| 24.0" (1/3 cut of 27.0") | a-Si TFT-LCD, LCM |
| Resolution | Pixel Format |
| 1920(RGB)×360, >3:1 | RGB Vertical Stripe |
| Display Area | Panel Weight |
| 597.888(W)×112.104(H) mm | 1.35Kgs (Typ.) |
| Outline Size | Surface |
| 612.7(W)×132.1(H)×13.3(D) mm | Antiglare (Haze 25%) |
| Brightness | Contrast Ratio |
| 300 cd/m² (Typ.) | 1200:1 (Typ.) (TM) |
| Viewing Angle | Display Mode |
| 89/89/89/89 (Typ.)(CR≥10) | ADS, Normally Black, Transmissive |
| View Direction | Response Time |
| Symmetry | 30 (Typ.)(Tr+Td) mm |
| Display Colors | Application |
| 16.7M, 72% NTSC | |
| Frequency | Touch Screen |
| 60Hz | Without |
| Panel Weight | Light Source |
| 11.1/15.2W (Typ./Max.) | WLED, 30K hrs, Without Driver |
| Interface | |
| LVDS (2 ch, 8-bit), 30 pins Connector | |
| Input Voltage | |
| 5.0V (Typ.) | |
| Environment | |
| Operating Temp. 0 ~ 50 °C, Storage Temp. -20 ~ 60 °C |
