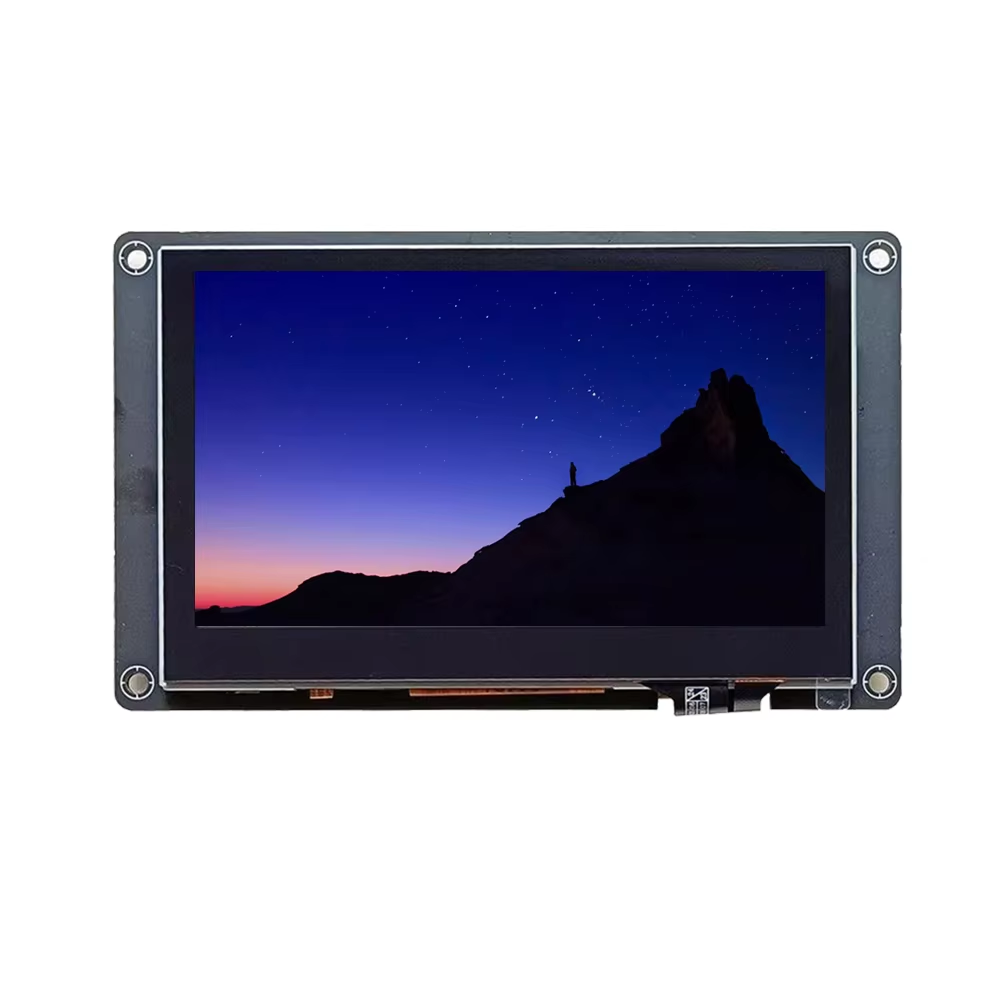

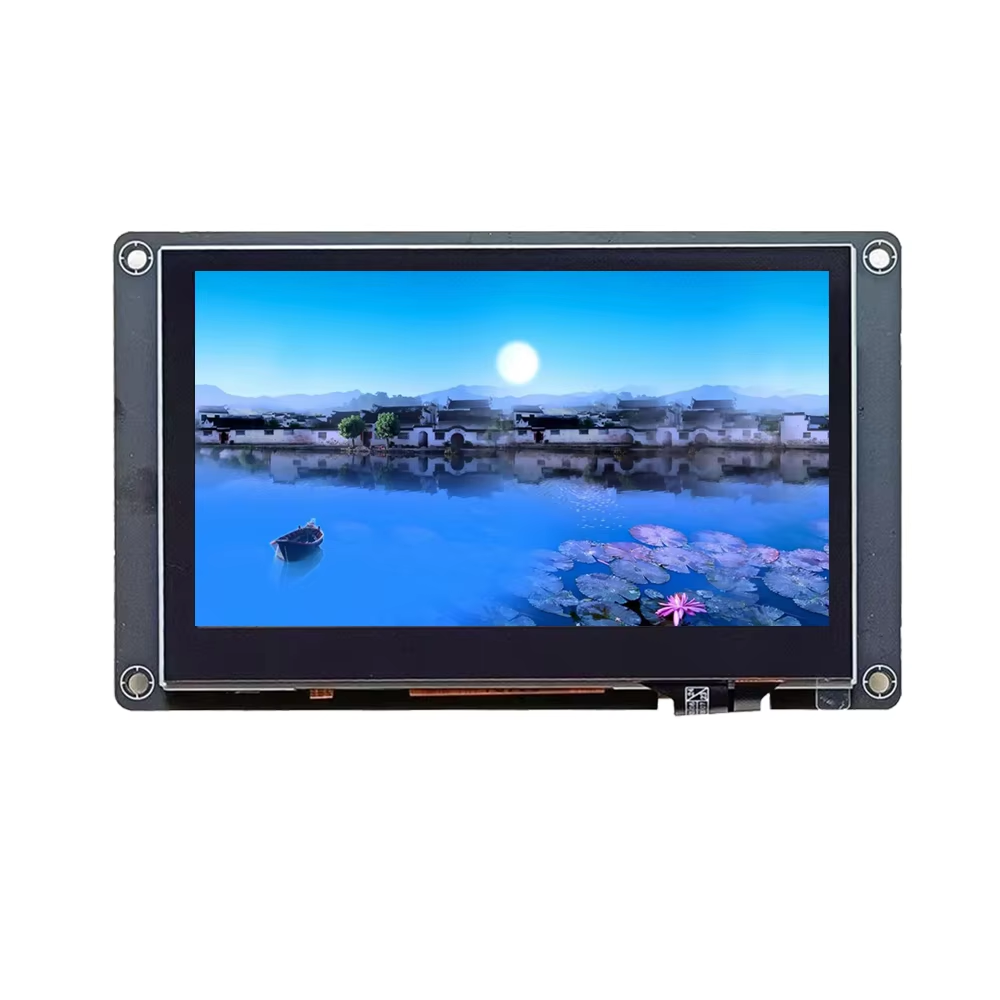

      4.3 Inch 480*272 Resolution LCD Module RS232 Interface 300 Cd/m2 Touch Screen Panel Capacitive Touch Display
      B站不支持收货地址
      B站不支持库存规格
      Resolution
      Capacitive Touch Display
      Size (inch)
      4.3"
      LCD Mall Model No
      LMM040002
      参数暂无数据
      多属性暂无数据
      B站不支持优惠卷
      暂无分享
      B站不支持产品保障
      Type
      Lcm
      Display Size
      4.3 inch
      Supplier Type
      supplier
      Place of Origin
      China
      Brand Name
      LCD Mall
      Backlight Type
      LED
      Resolution
      480*272
      Brightness
      300cd/m2 (CTP)
      Operating Temperature
      -20°C~+70°C
      Screen Size
      4.3"
      Communication interface
      RS232
      Size
      4.3 inch
      Resolution
      480 *272
      Active view area
      95.04 mm * 53.86 mm
      View display area
      98.5 mm * 57.3 mm
      Module size
      121.9 mm * 74.7 mm
      Display color
      RGB565
      Brightness
      300 cd/m2
      View angle L/R/U/D
      70°/70°/50°/60°
      Operate temperature
      -10℃~+60℃
      Storage temperature
      -20℃~+70℃
      Product name
      4.3 Inch Capacitive Touch Display 480*272 Resolution LCD Module RS232 Interface 300 Cd/m2 Touch Screen Panel
      Real time color RTC
      Support
      TF card port
      Support
      Touch panel
      support 4 wire resistive or capacitive touch panel
      Character library
      Support 16*16,24*24,32*32,48*48,64*64 dot-matrix
      support BMP,JPG,PNG,TGA
