The LMM150005 is a 15-inch industrial-grade touch all-in-one machine from the PT Series, designed for reliable performance in demanding environments. Featuring a versatile mounting design with embedded and clip-on installation options, this unit delivers exceptional flexibility for a wide range of industrial, commercial, and self-service applications.
Industrial-Grade Design – Built for durability and continuous operation in demanding environments.

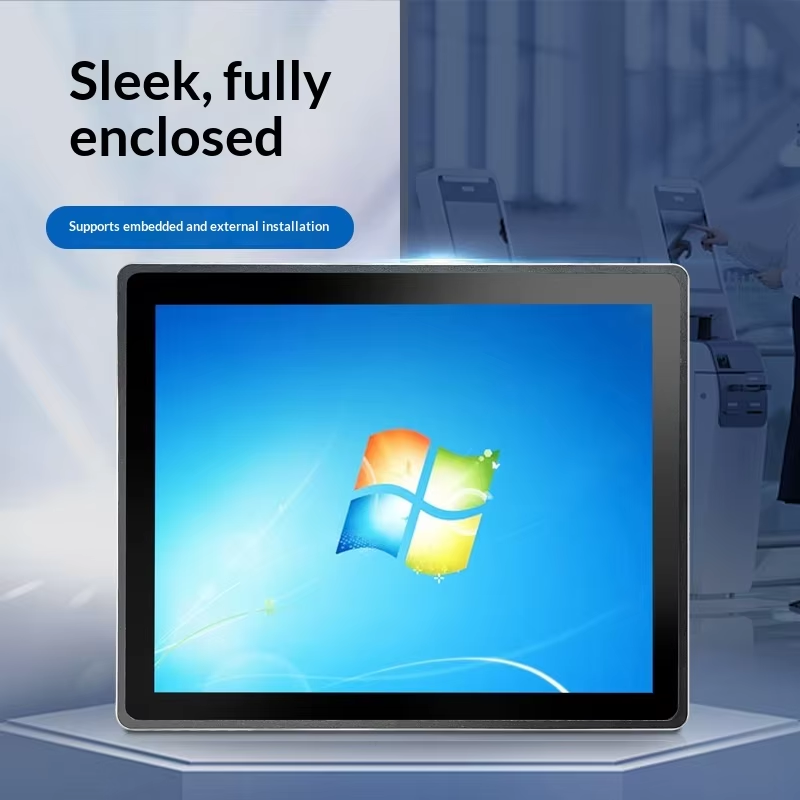

Flexible Mounting Options – Supports both embedded installation and clip-on mounting for easy integration into various setups.
Durable Touch Display – 15-inch LED backlit screen with 1024 × 768 resolution, 300 cd/m² brightness, 1000:1 contrast ratio, and ≥7H surface hardness for enhanced scratch resistance.
Reliable Performance – Powered by an Intel Celeron J1800 processor, 2GB DDR3 memory, and 32GB SSD for stable and efficient operation.
Expandable Functionality – Optional speaker and WiFi module can be added to meet specific application needs.
Wide Viewing Angle – 160° horizontal / 150° vertical viewing angle ensures clear visibility from various positions.
Stable Power Supply – Operates with a 100–240V 50/60Hz input and a dedicated 12V power adapter.
| Mounting Type | Dimensions |
|---|---|
| Embedded Installation Cutout | 360mm × 308.5mm |
| Clip-On Installation | 400mm × 372.5mm |
Please refer to the dimensional diagram for precise installation details.
| Category | Details |
|---|---|
| Model | LMM150005 |
| Series | PT Series |
| Screen Size | 15 inches |
| Screen Type | LED Backlit |
| Resolution | 1024 × 768 |
| Touchscreen | Capacitive / Resistive (optional) |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | (H) 160° / (V) 150° |
| Display Colors | 16.7M |
| Surface Hardness | ≥7H |
| Dot Pitch | 0.297 mm |
| CPU | Intel Celeron J1800 |
| Memory | 2GB DDR3 |
| Storage | 32GB SSD |
| Operating System | Supports Windows |
| Graphics | Intel HD Graphics |
| Audio | Integrated audio chip (speaker optional) |
| LAN | Integrated Gigabit Ethernet |
| Wireless | Optional WiFi module |
| Power Supply | 100–240V 50/60Hz, 12V dedicated adapter |
The LMM150005 is ideal for:
Industrial control terminals
Human-Machine Interface (HMI) systems
Point-of-Sale (POS) terminals
Interactive kiosks
Self-service stations
Factory automation interfaces
The LMM150005 combines industrial-grade construction with flexible mounting options, making it a versatile solution for system integrators and businesses seeking a reliable touch-enabled all-in-one computer. Its compact footprint, durable display, and optional expansion features ensure it adapts seamlessly to a variety of applications—from factory floors to retail environments.
| Installation Type | Dimensions (Width × Height) |
|---|---|
| Embedded Cutout | 360mm × 308.5mm |
| Clip-On Mounting | 400mm × 372.5mm |
