LME040WV002R is a reflective electrophoretic display module on an active matrix TFT substrate. The diagonal length of the active area is 3.97" and contains 480 x 800 pixels. The panel is capable of displaying 1-bit black, white images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and border settings.
Ultra low power consumption
Particle Colors: Black/White
Ultra wide viewing angle
On chip display RAM
Interface: 4-Wire SPI or 3-Wire SPI
Wide range of operating temperature: 0°C to 50°C
Wide range of Storage temperature: -25°C to 60°C
High reflectance and contrast TFT electrophoretic

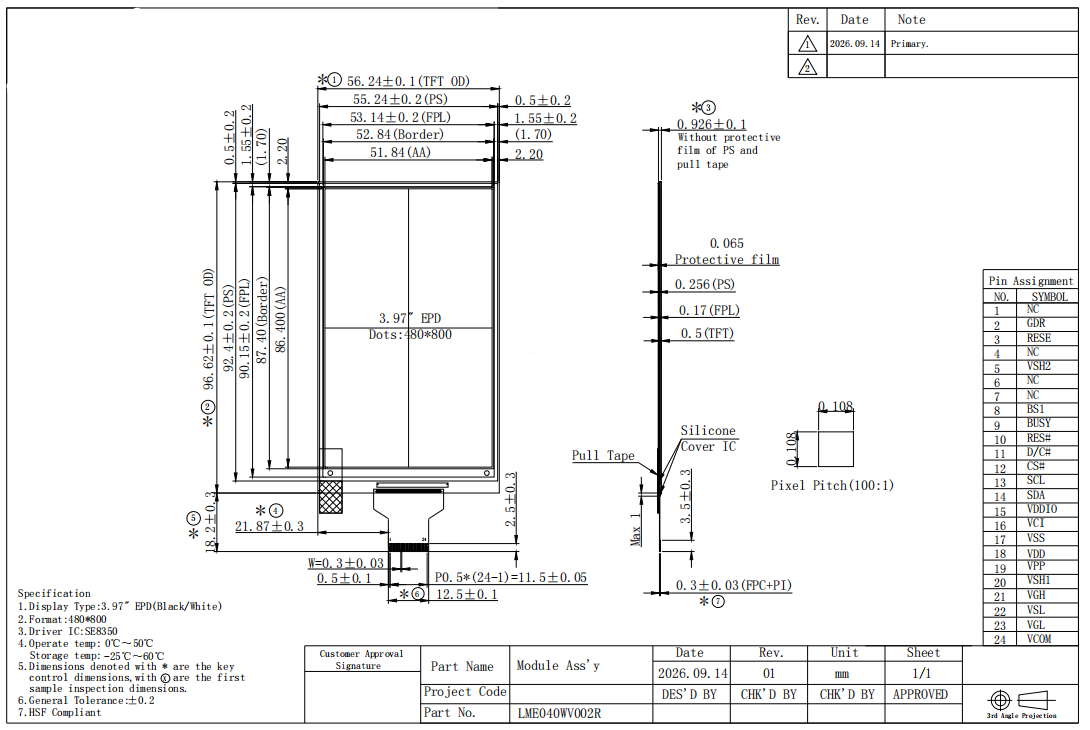

. Mechanical Data| NO. | ITEM | SPECIFICATION | UNIT |
|---|---|---|---|
| 1 | Dot Matrix | 480(H)×800(V) | - |
| 2 | Screen Size | 3.97 | Inch |
| 3 | Active Area | 51.84(H)×86.4(V) | mm² |
| 4 | Pixel Pitch | 0.108×0.108 | mm² |
| 5 | Pixels Per Inch | 235 | - |
| 6 | TFT Area | 56.24(H)×96.62 (V) | mm² |
| 7 | Outline Dimension | 56.24(H)×114.82(V) ×0.926(D) | mm³ |
| 8 | Pixel Configuration | Square | - |
| 9 | Driver IC | SE8350 | - |
| 10 | Module Weight | 10.45±10% | g |
