The LMD12864-020 is a high-contrast, graphic monochrome LCD module designed for applications that require crisp, readable characters in low-light or dark environments. With a blue background and bright white text (negative mode), this display delivers a modern, high-end visual effect similar to OLED, but with the durability and cost-effectiveness of traditional LCD technology.

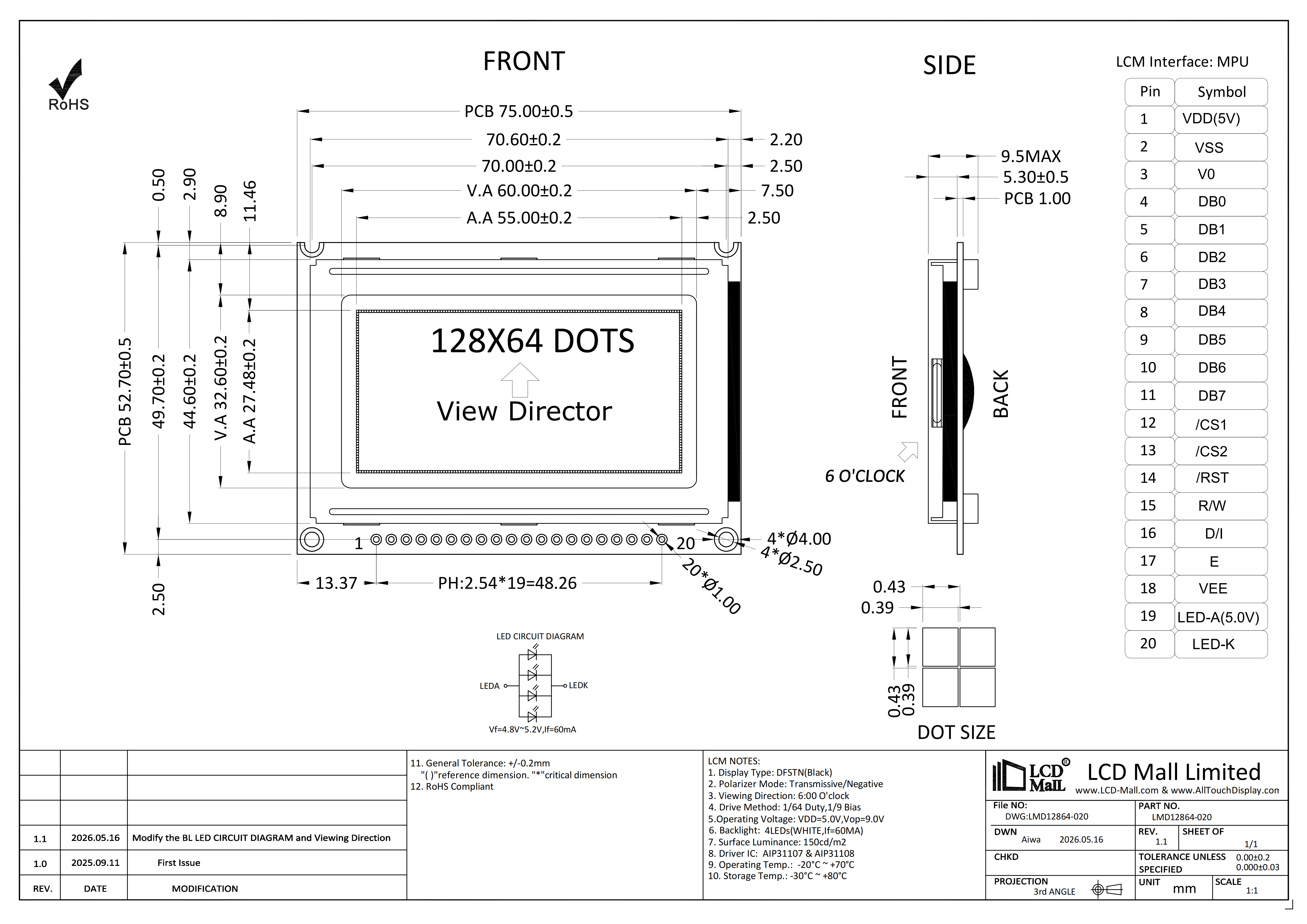

Key Technical Specifications:

• Display Type: Graphic Monochrome LCD

• Resolution: 128 x 64 Pixels

• LCD Mode: DFSTN (Double Film Super Twisted Nematic) – Negative, Transmissive

• Polarizer Mode: Negative (Blue Background / White Text)

• Construction: COB (Chip on Board)

• Backlight: LED (typically white or matching wavelength for optimal blue/white contrast)

• Viewing Direction: 6 o'clock (adjustable per design)

Key Features & Advantages:

1. High-Contrast DFSTN Technology: DFSTN provides a sharper image, wider viewing angle, and better temperature stability compared to standard STN LCDs. The negative mode ensures the iconic dark blue background with glowing white text for excellent readability.

2. Distinctive Visual Appeal: The blue-white color scheme is preferred in medical devices, test instruments, and automotive aftermarket products because it reduces eye strain in dark rooms while looking professional and modern.

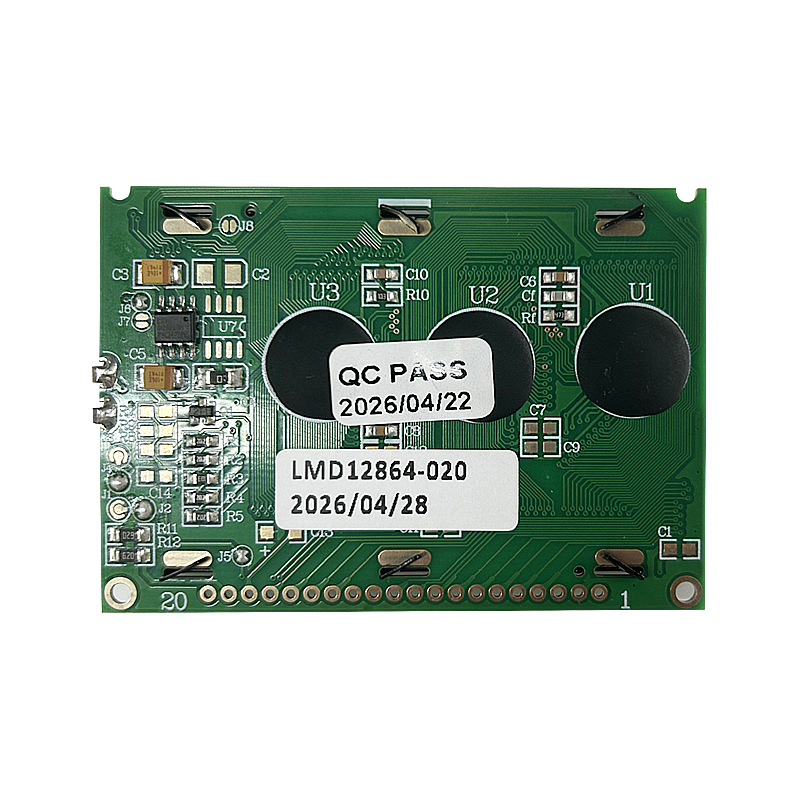

3. COB (Chip on Board) Construction: COB offers the most cost-effective solution for prototyping and medium-to-high volume production. The controller IC is directly bonded to the PCB, providing a compact, reliable mechanical structure without needing a flexible connector.

4. Transmissive Mode for Dark Environments: Unlike reflective or transflective displays, this transmissive module relies entirely on its backlight, making it perfectly suited for indoor equipment, nighttime use, or any scenario where ambient light is low.

Application Examples:

• Laboratory and medical monitoring equipment (infusion pumps, analyzers)

• Industrial control HMIs (factory data terminals)

• Automotive dashboards and diagnostic tools

• Home automation controllers (thermostats, security panels)

• Electronic test and measurement devices (multimeters, oscilloscopes)

• Retro gaming and hobbyist embedded projects

Why Choose LMD12864-020?

This module bridges the gap between standard character LCDs and expensive OLEDs. You get the striking visual effect of blue-on-white (or more precisely, white-on-blue) negative display, combined with the mechanical robustness of COB assembly and mature DFSTN technology. It remains readable under direct indoor lighting while providing its own illumination for dark environments. For engineers seeking a drop-in, high-impact graphic display without redesigning their interface logic, the LMD12864-020 is a proven, reliable solution.
