7inch Linux All-in-one Touch Machine 1024x600 Resolution Industrial Embedded...

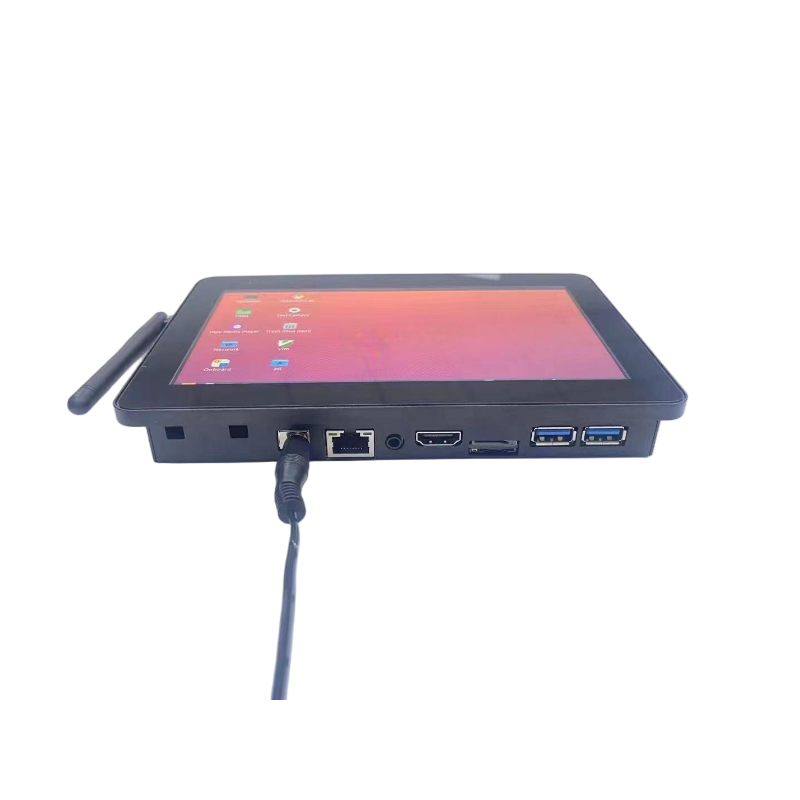

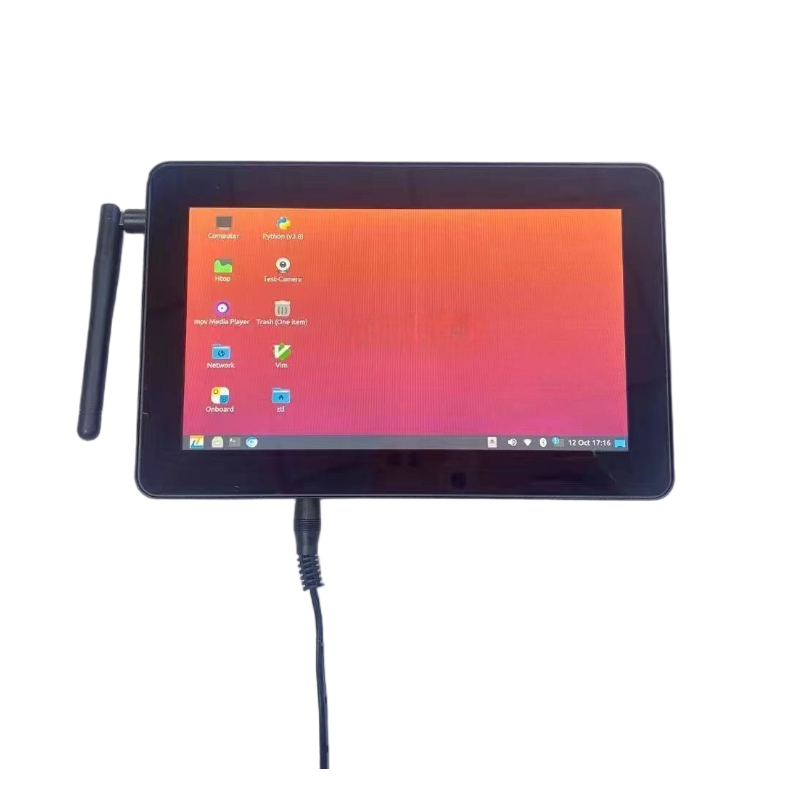

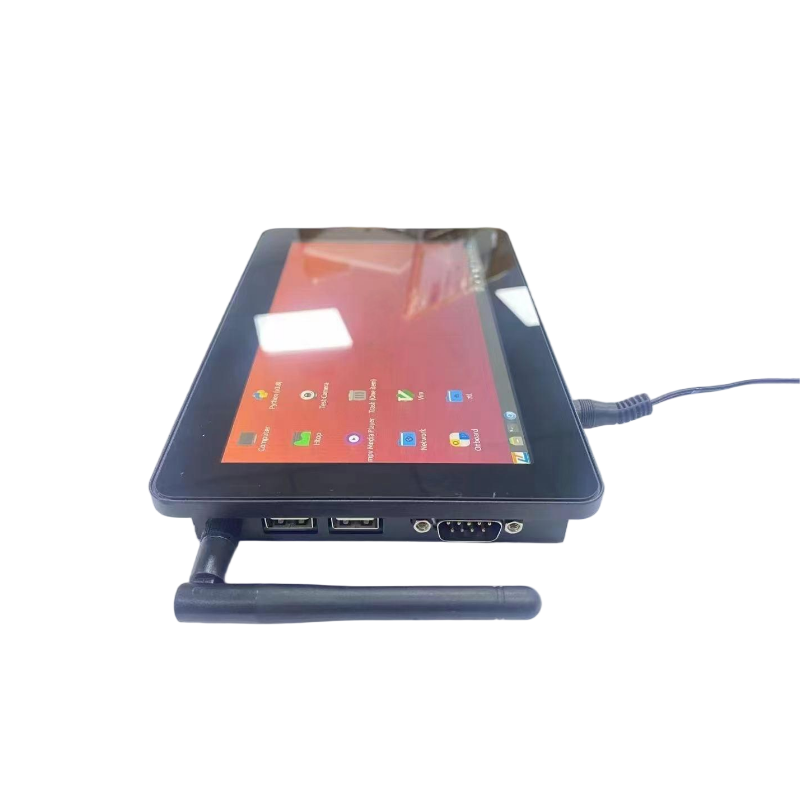

7Inch Linux All-In-One Touch Machine HYL070-A01 adapts RK3568 mainboard，resolution is 1024X600，supports LCD display driver interface，supports TF card，Ethernet，USB3.0， RS485，RS232 COM port，BT\WIFI and others.Meanwhile， various interfaces are customizable, meeting the needs of customers in various environments. Mainly used in industrial automation, medical equipment, smart home, commercial equipment, buildings, transportation fields, etc.

LCD parameters	Data	Description
Screen size	7 Inch	Ratio: 16 ：9
Resolution	1024*600
Color	16.7M	-
Display size	154.4(L)*86.2(W) mm	-
Overall dimensions	184.20(L)*119.20(W)mm	-
Backlight brightness	500cd/m2	Adjusted by PWM
Backlight life(Hour)	50000Hrs	LED Backlight
Viewing angle(CR>10)	Wide viewing angle	Panel type： IPS
Touching type	Capacitive touch	Single-point touch/ Multi-point touch
Service life	Touching times≥50 million times
Response time	8ms

CPU	RK3568 quad-core 64-bit Cortex-A55 with a maximum frequency of 2.0Ghz	Allwinner T113-S3 dual-core Cortex-A7
GPU	ARM G52 2EE ，supports OpenGL ES 1.1/2.0/3.2， OpenCL 2.0 ，Vulkan 1.1， Embedded high-performance 2D
Memory	LPDDR4X 1GB/2GB（Standard） / 8GB	Chip integration 128M SDRAM
Built-in memory	EMMC 8G（ Standard） /16G/32G/64G/128G (optional)	128M Nand Flash or 8GB eMMC

Display interface
HDMI OUT interface	HDMI2.0 Maximum supporting 3840x2160 output （inner supporting LVDS、 EDP、 MI PI）
Audio interface
Headphone holder interface	1 microphone mono input (analog signal input), 1 audio two-channel output (analog signal input)(microphone input) supported)
Power amplifier interface	Left and right dual channel output, support 8Ω 10W dual speaker
Network support
Ethernet	1 standard RJ45 interface, (built-in 1 x 2.0mm-4P socket), 10/100M Ethernet adaptable
WI FI/BT	On-board WI FI/BT module, support Wi Fi 2.4GHz/5GHz dual-band Wi Fi6 (optional), support 802.11a/b/g/n/ac protocol, support Bluetooth 4.0 (support BLE)
Mobile networks	1 internal MINI PCIE cradle slot for extended connectivity to 3G/4G modules
Basic interface
USB 2.0/3.0	2 USB Host ports, 1 external standard USB 3.0 cradle, for external HD USB camera, USB flash drive, keyboard and mouse and other devices
USB OTG	1 USB OTG port for debugging the system, updating firmware, and can also be set as Host mode
Serial Port	1-way serial port, (optional RS232 serial port,RS485 serial port)
GPIO Port	Built-in 5 IO ports, supporting input and output
On-board RTC	Built-in RTC: supports real-time clock, 1220 coin cell battery powered
Reliability parameters
Operating temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 95% Non-Condensing
Vibration protection	IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Product certification	CCC/EMC/CB/ROHS
Front waterproof rating	The front panel is IP65 rated
