DESCRIPTION

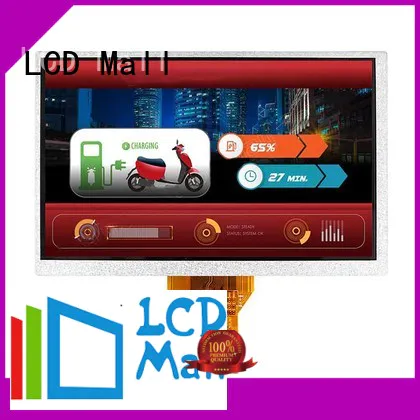

LM070SWV07ES is a sunlight readable TFT LCD module with high brightness of 1000 cd/m2 (typical value). LM070SWV07ES is a color TFT LCD with WVGA 800x480 resolution, diagonal size 7.0 inch. This TFT model is built in with EK9713+EK73002 driver IC.LM070SWV07ES supports 24-bit RGB interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional.
The supply voltage for logic (VCC) of LM070SWV07ES is from 3.0V to 3.6V, typical value 3.3V. It is featured with Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9.. It can be operating at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. LCD-Mall’s sunlight readable TFT LCD is perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments, etc.
DRAWING
LCM Mechanical Diagram
