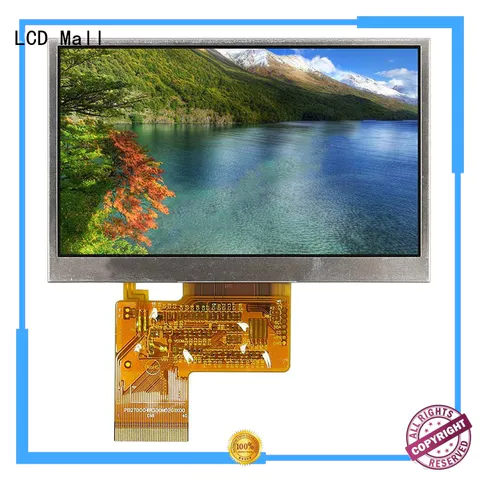

      LCD Mall transflective tft panel bespoke for expo

      Storage Temp
      LM043HWQ12HS
      LCD Shape
      480*272
      Backlight
      550
      Surface Luminance
      4.3inch
      Viewing Direction
      All
      LCM Interface
      LVDS
      Price
      Get Latest Price
      Get the latest price
      Quantity Needed：
      Pieces
      E-mail：
      Captcha

      Loading verification code...

      Please complete verification first

      这里可以自定义设置
      More
      More
      Pin No.SymbolDescription
      1LED-Cathode of LED backlight
      2LED+Anode of LED backlight
      3GNDPower ground
      4VDDPower supply
      5~12R0~R7Red data bus
      13~20G0~G7Green data bus
      21~28B0~B7Blue data bus
      29GNDPower ground
      30PCLKClock pin of serial interface
      31DISPDisplay on/off mode control
      32HSYNCHorizontal sync signal; negative polarity
      33VSYNCVertical sync signal; negative polarity
      34DEData enable signal for RGB interface operation
      35NCNo connect
      36GNDPower ground
      37NC(XR)No connect
      38NC(YD)No connect
      39NC(XL)No connect
      40NC(YU)No connect

      Item

      Symbol

      Min

      Typ

      Max

      Unit

      Operating Temperature TOP-30
      		85℃
      Storage TemperatureTST-40
      		85℃

      Item

      Symbol

      Condition

      Min

      Typ

      Max

      Unit

      Input PowerVCC
      		-0.3
      		4.5
      		V
      Supply current (One LED)ILED


      		30mA
