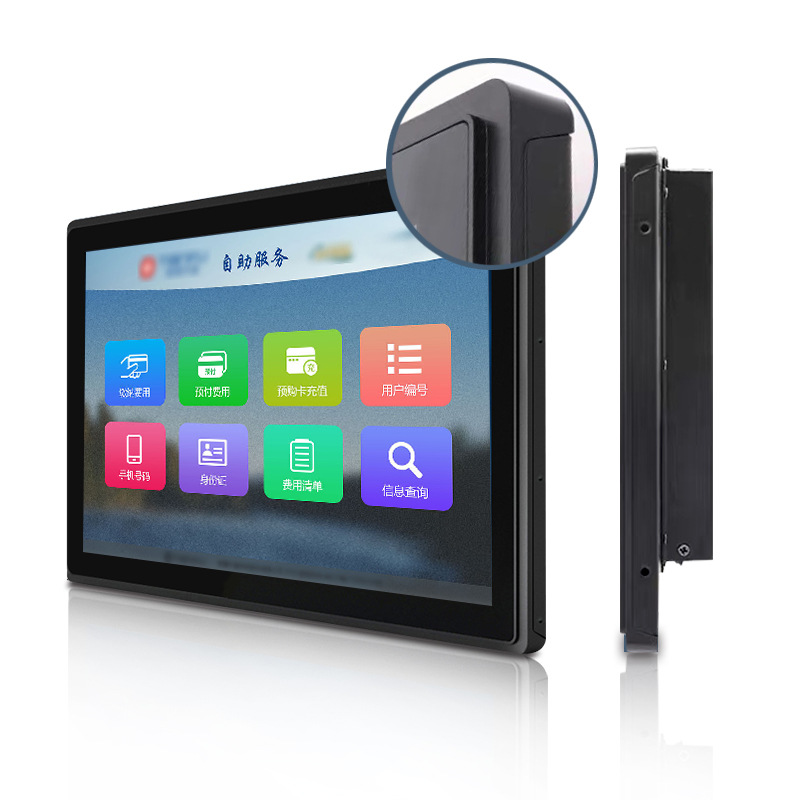

Engineered for industrial control, HMI, and embedded applications, this 15.6-inch Touch All-In-One Computer combines a reliable computing platform with a high-clarity touch display. Whether you need a cost-effective solution for basic automation or a high-resolution panel for detailed monitoring, this industrial PC delivers stable 24/7 performance in a compact, space-saving design.
Choose from resistive or capacitive touch screens, and upgrade to Full HD 1920×1080 resolution if your application demands sharper visuals.
15.6" LED-Backlit Touch Screen – 1366×768 native resolution (upgradeable to 1920×1080)
Intel Celeron J1800 Processor – Low power, fanless-ready design for industrial reliability
2GB DDR3 Memory + 32GB SSD (upgradeable options available)
Optional Capacitive or Resistive Touch – Surface hardness ≥7H, 16.7M display colors
Industrial-Grade Visual Performance – 1000:1 contrast ratio, 300 cd/m² brightness, wide viewing angles (160°/150°)
Rich I/O & Expansion – Gigabit Ethernet, optional WiFi module, optional speaker
Wide Voltage Power Input – 100–240V 50/60Hz with 12V dedicated adapter
| Parameter | Details |
|---|---|
| Screen Size | 15.6 inch LED-backlit |
| Base Resolution | 1366 × 768 (HD) |
| Upgraded Resolution | 1920 × 1080 (Full HD, optional) |
| Touch Type | Capacitive touch / Resistive touch (optional) |
| Surface Hardness | ≥7H |
| Display Colors | 16.7M |
| Pixel Pitch | 0.297 mm |
| Contrast Ratio | 1000 : 1 |
| Brightness | 300 cd/m² |
| Viewing Angle | (H) 160° / (V) 150° |
| CPU | Intel Celeron J1800 |
| Graphics | Intel HD Graphics |
| Memory | 2 GB DDR3 |
| Storage | 32 GB SSD |
| Audio | Integrated audio chip (speaker optional) |
| LAN | Gigabit Ethernet |
| Wireless | None (WiFi module optional) |
| Power | 100–240V 50/60Hz, 12V adapter included |
| Supported OS | Windows (various versions) |
