DESCRIPTION

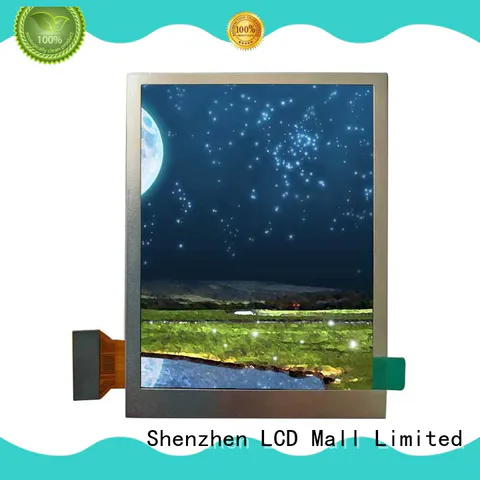

LM035NV08NS is a 3.5 inch portrait mode Transflective TFT-LCD display module, made of resolution 480x640 pixels. LM035NV08NS module built in with HX8363-A driver IC, it supports SPI+18BIT RGB interface; View Direction 9 o'clock, Gray Scale Inversion Direction 3 o'clock, Aspect Ratio 3:4, brightness 150 nits (typical value), Glare surface panel. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
LM035NV08NS is a Transflective TFT-LCD display; it is characterized by very good readability in bright environments and direct sunlight. Transflective TFT display featured a transparent reflector in front of the backlight. The incoming light is reflected and used to illuminate the TFT display. Therefore, the readability of the content in very bright light is perfect even without any backlight. Customers using a transflective TFT module can save power by reducing or turning off the display's backlight during bright environments.
DRAWING
LCM Mechanical Diagram
