DESCRIPTION

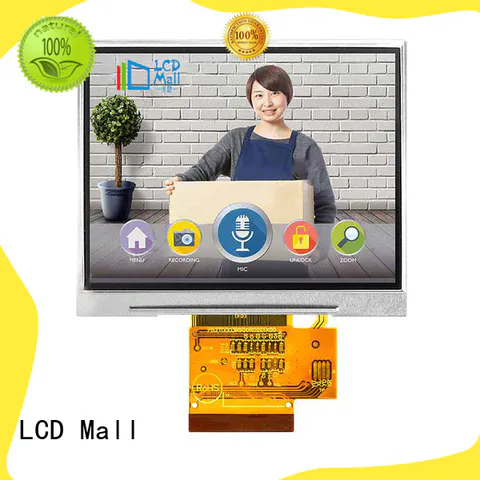

LM035HQ10HS is a 3.5 inch IPS great angle-visibility. This IPS TFT display is featured with 320x240 resolution and built in with ST7272A IC; it supports 24 BIT-RGB+SPI interface, with brightness 550 nits (typical value).
This 3.5 inch TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). LM035HQ10HS module can be operating at temperatures from -30℃ to 85℃; its storage temperatures range from -30℃ to 85℃.
| Pin No. | Symbol | Description |
| 1~2 | LEDK | Cathode of LED backlight |
| 3~4 | LEDA | Anode of LED backlight |
| 5~7 | NC | No connect |
| 8 | RESET | RESET PIN |
| 9 | SPENA | Chip select of serial interface |
| 10 | SPCLK | Clock pin of serial interface |
| 11 | SPDAT | Data input pin of serial interface |
| 12~19 | B0~B7 | Blue data bus |
| 20~27 | G0~G7 | Green data bus |
| 28~35 | R1~R7 | Red data bus |
| 36 | HSYNC | Horizontal sync signal; negative polarity |
| 37 | VSYNC | Vertical sync signal; negative polarity |
| 38 | DCLK | Clock signal; latching data at the falling edge |
| 39 | NC | No connect |
| 40 | NC | No connect |
| 41 | VDD | Power supply |
| 42 | VDD | Power supply |
| 43~51 | NC | No connect |
| 52 | DEN | Display enable pin from controller |
| 53 | GND | Power ground |
| 54 | GND | Power ground |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -30 | 85 | ℃ | ||
| Storage Temperature | TST | -30 | 85 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For LCM | VDD | -0.3 | 4.5 | V | ||
| Supply Current For LCM | IDD | 30 | mA |
