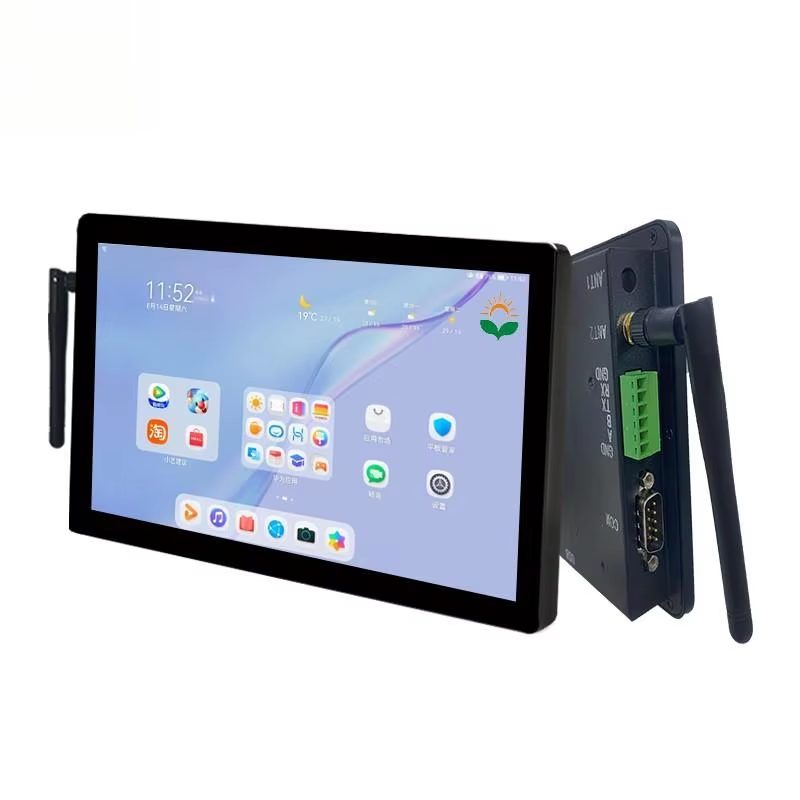

Display
parameters | Data | Instructions |
Display size | 7 inch | 16 ：9 |
Resolution | 1024*600 |
|
Colors | 16.7M | - |
Display size | 154.4(H)*86.2(W) mm | - |
Backlight
brightness | 300-1000 n it | The brightness can be adjusted by software |
Backlight lifetime
(Hrs) | 50000Hrs | LED backlight |
Viewing
direction(CR>10) | All view direction |
|
Touch type | Capacitive touch panel | Support single or 5 point touch |
Working life | Single point can affordable≥50 million times |
|
Response time | 8ms |
|
Case size | 184.2*119. 19*25.5 mm |
|
Hardware Specs | Main Hardware Indicators |
|
CPU | RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz. |
|
Memory | Standard 2G |
|
Storage | EMMC standard 16G |
|
GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2、OpenCL 2.0， Vulkan 1.1 |
|
WI FI | 2.4GHz |
|
Bluetooth | BT 4.0 |
|
Operation system | Android 11 |
|
Others | Support RTC real-time clock, 、timing switch |
|
Language | Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages. |
|

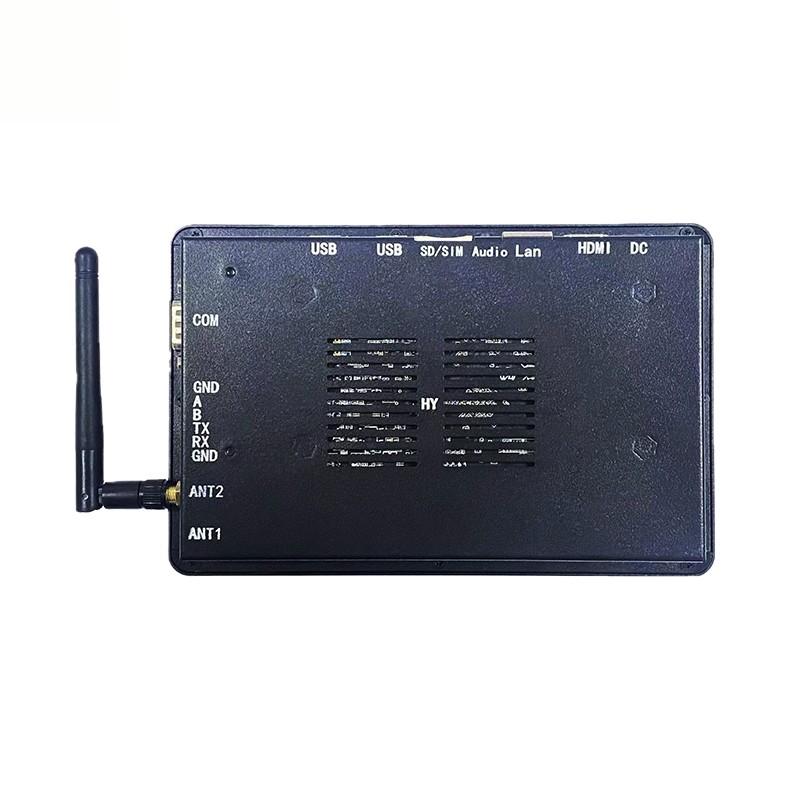

Interface parameters |
|

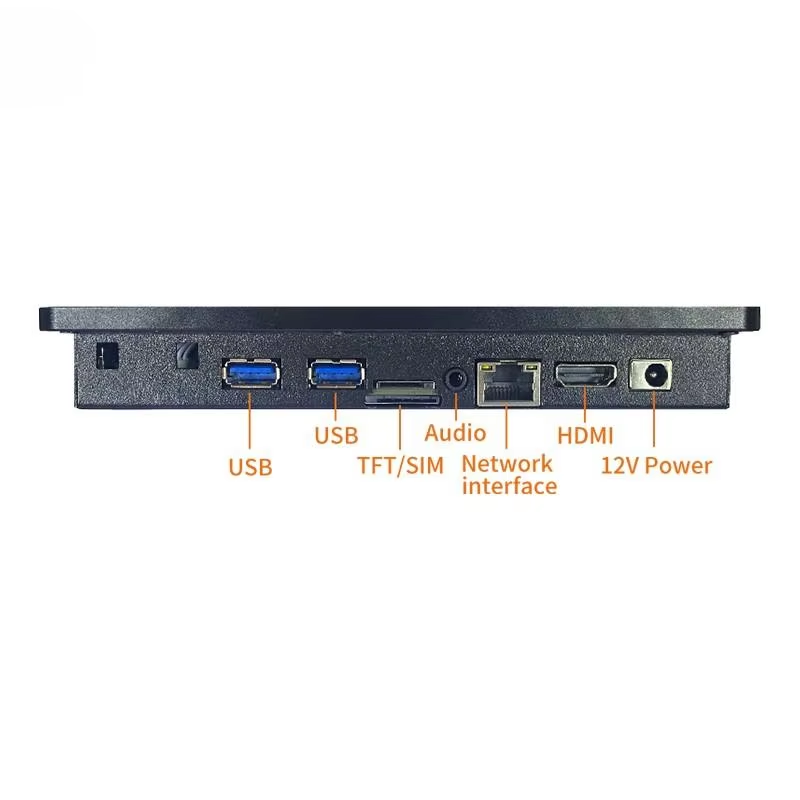

Power interface | 1*DC2.1,support width voltage 12V-36V power supply |
|
USB | 1*USB 3.0/ 1*USB2.0; 4* built-in USB socket. |
|
TF card | 1*TF card with standard interface |
|
SIM Card | 1*SIM card standard interface,support a variety of standards （Depend on 3G/4G module） |
|
HDMI | 1*HDMI, support HDMI data transfer,the maximum support 4K |
|
Net interface | 1*LAN,10M/100M adaptive ether |
|
Audio/video
output | Support left and right channel output, built-in dual 8R/5 power amplifier |
|
Reset key | Support（1*UBOOT） |
|

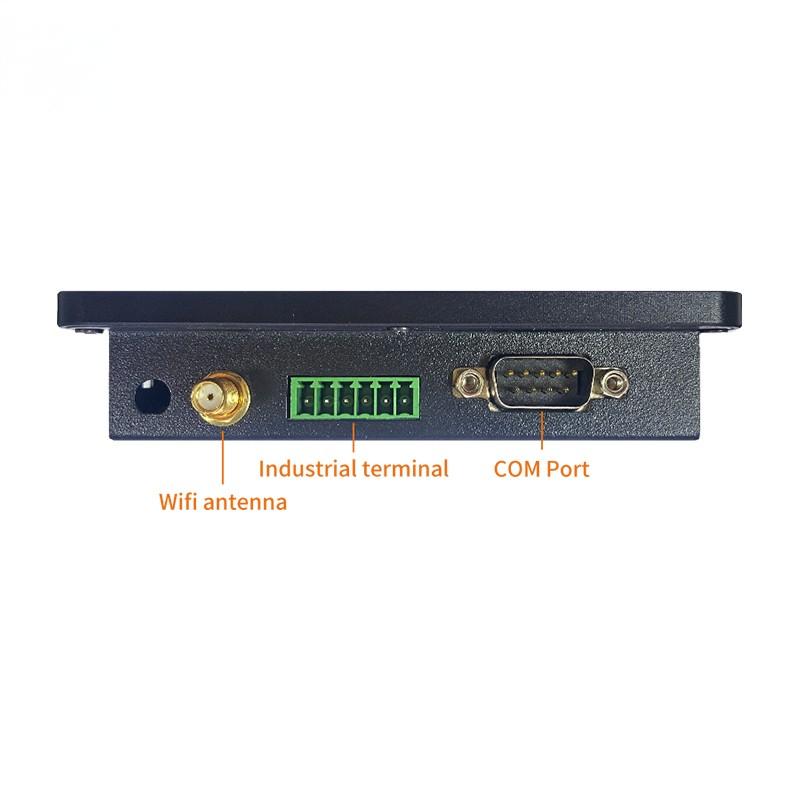

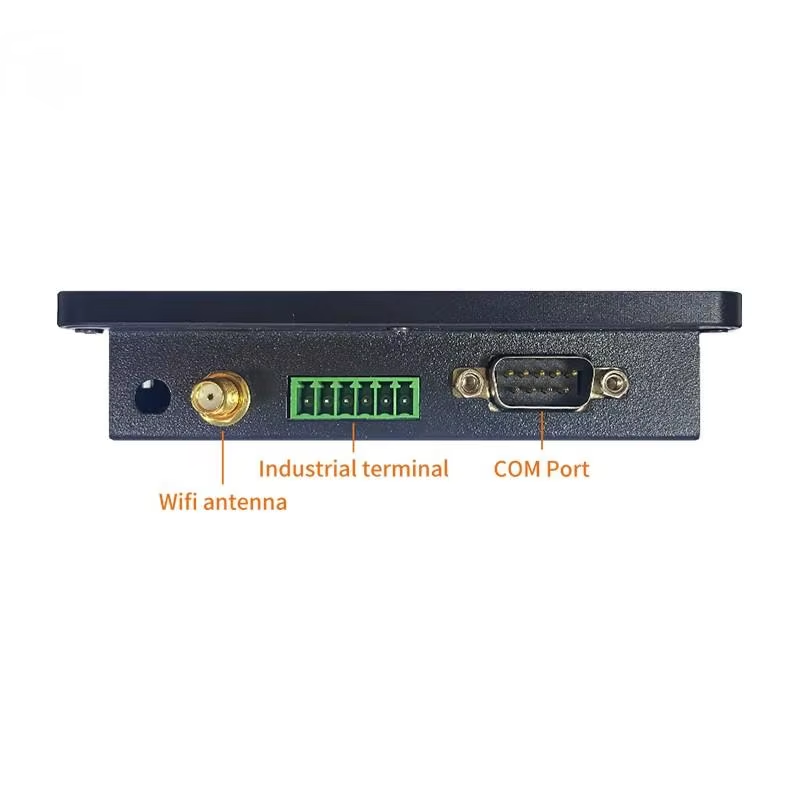

COM | 2*RS232(Optional RS485,TTL) |
|
WI FI Antenna | 1*Wi Fi antenna |
|
Reliability parameters |
|
Working
temperature | -20°C~70°C |
|
Storage
temperature | - 30°C~80°C |
|
Relative humidity | Humidity: 90%, Temperature： 50℃ |
|
Vibration
protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X、Y、Z each 3H |
|
Product
certification | CCC/CE/FCC/EMC/CB/ROHS |
|
Front waterproof rating | The front panel can reach IP65 protected rating |
|
