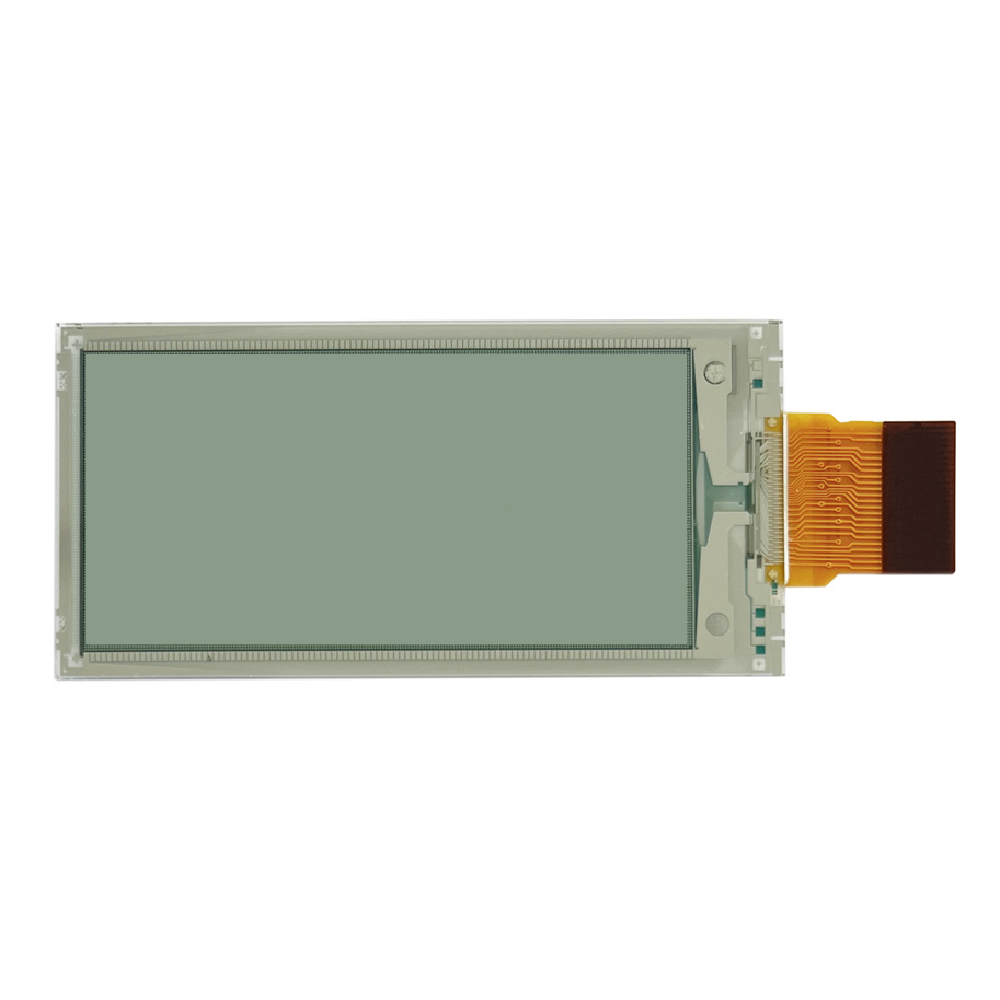

LME021QV001R is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white and black full display capabilities. The 2.13 inch active area contains 122×250 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.
122×250 pixels display
High contrast High reflectance
Ultra wide viewing angle Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Waveform can stored in On-chip OTP or written by MCU
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
I²C signal master interface to read external temperature sensor
Built-in temperature sensor
| Parameter | Specifications | Unit | Remark |
|---|---|---|---|

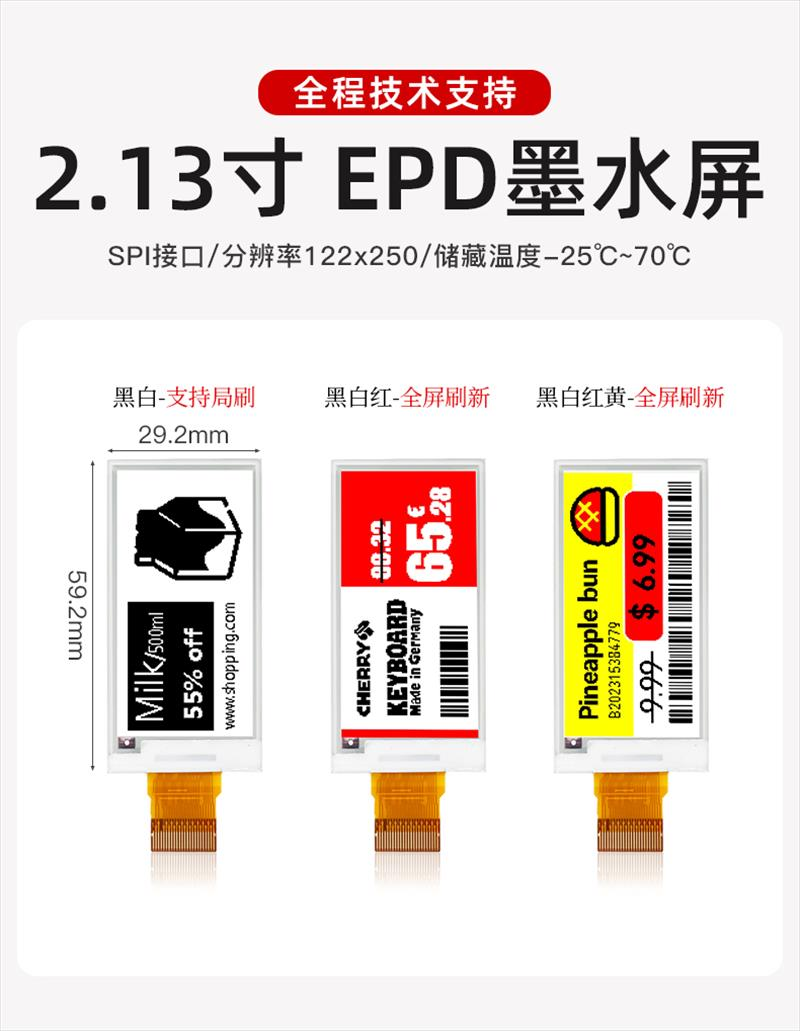

| Screen Size | 2.13 | Inch | |
| Display Resolution | 122(H)×250(V) | Pixel | DPI:130 |
| Active Area | 23.70×48.55 | mm | |
| Pixel Pitch | 0.194×0.194 | mm | |
| Pixel Configuration | Rectangle | ||
| Outline Dimension | 29.20(H)×59.20 (V) ×1.14(D) | mm | |
| Weight | 5±0.5 | g |
