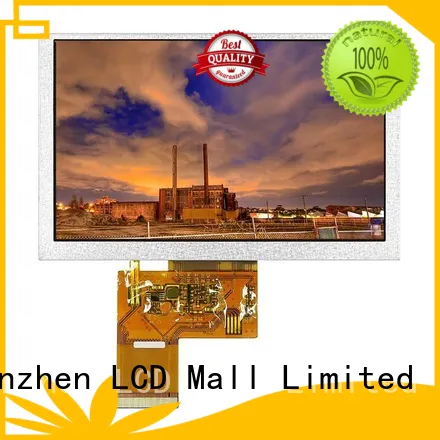

| Pin No. | Symbol | Description |
| 1 | LED- | Cathode of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Red data bus |
| 13~20 | G0~G7 | Green data bus |
| 21~28 | B0~B7 | Blue data bus |
| 29 | GND | Power ground |
| 30 | DCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal; negative polarity |
| 33 | VSYNC | Vertical sync signal; negative polarity |
| 34 | DE | Data enable signal for RGB interface operation |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37 | NC(XR) | No connect |
| 38 | NC(YD) | No connect |
| 39 | NC(XL) | No connect |
| 40 | NC(YU) | No connect |
Item | Dimension | Unit | ||||||
| Size | 5.0inch | inch | ||||||
| Dot Matrix | 480*RGB*272(TFT) | dots | ||||||
| Module dimension | 120.70*75.80*2.9 | mm | ||||||
| Active area | 110.88*62.83 | mm | ||||||
| Dot pitch | 0.231*0.231 | mm | ||||||
| LCD type | TFT/TRANSMISSIVE | |||||||
| View Direction | 12 O’CLOCK | |||||||
| Gray Scale Inversion Direction | 6 O’CLOCK | |||||||
| Backlight Type | LED, Normally White | |||||||
| LCD Controller IC | ILI6480BQ | |||||||
| Pcap Controller IC | ||||||||
| LCD Interface | 24BIT RGB | |||||||
| Pcap Interface | ||||||||
| Touch Panel | ||||||||
| Surface | ANTI-GLARE | |||||||
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VCC | 3.0 | 3.3 | 3.6 | V | |
| Supply current (One LED) | ILED | 40 | mA |
