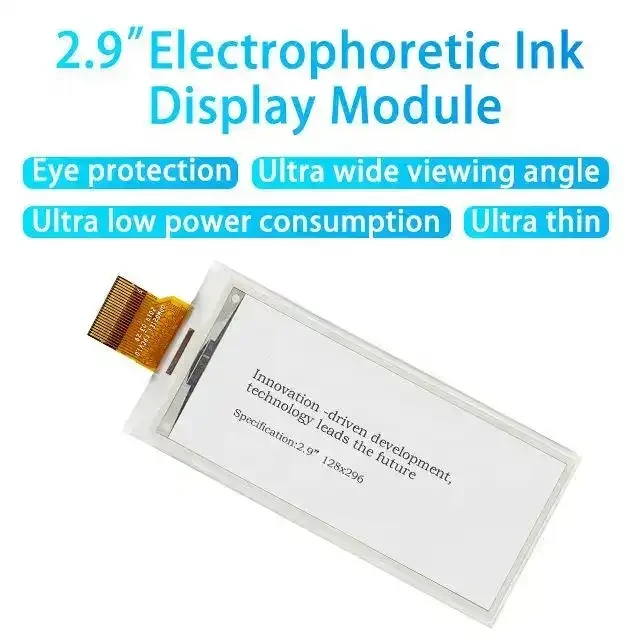

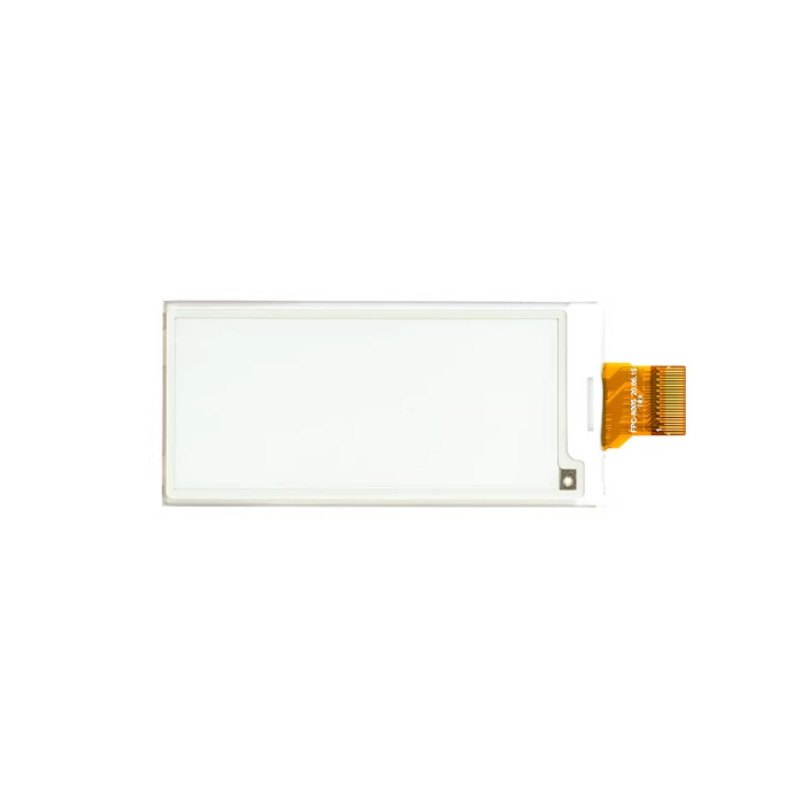

LME029QV002R – 2.9 Inch E-Paper Display Module | 128x296 | SPI

1. Over View

LME029QV002R is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white and black full display capabilities. The 2.9 inch active area contains 128×296 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

2. Features

• 128×296 pixels display

• High contrast High reflectance

• Ultra wide viewing angle Ultra low power consumption

• Pure reflective mode

• Bi-stable display

• Commercial temperature range

• Landscape portrait modes

• Hard-coat antiglare display surface

• Ultra Low current deep sleep mode

• On chip display RAM

• Waveform can stored in On-chip OTP or written by MCU

• Serial peripheral interface available

• On-chip oscillator

• On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

• I²C signal master interface to read external temperature sensor

• Built-in temperature sensor

3. Mechanical and Optical Specification

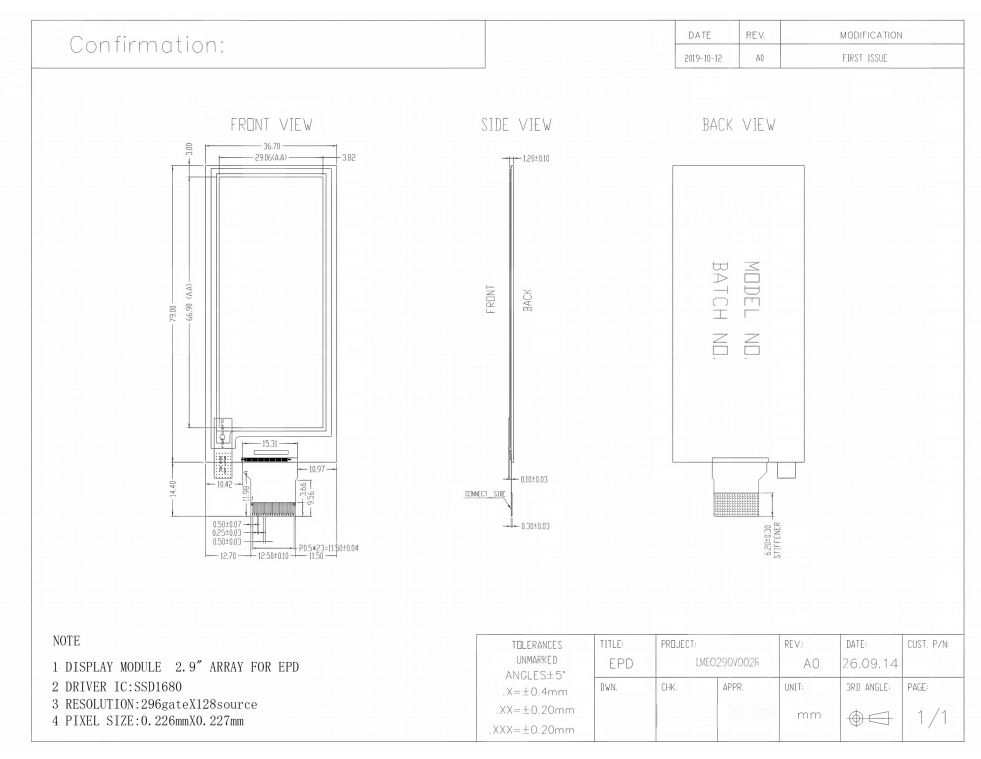

Table 1: Mechanical Specifications

Table 2: Optical Specifications
