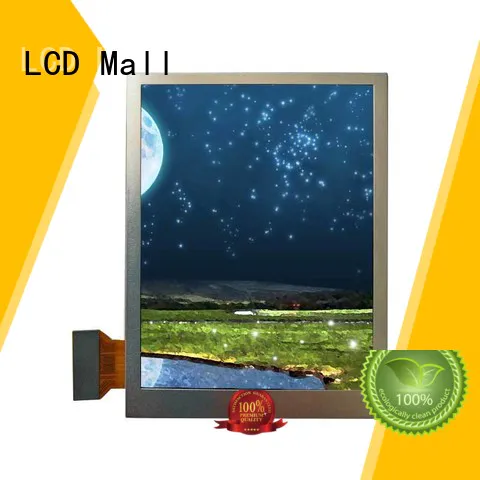

custom tft panel wholesale for elevator

Storage Temp
LM035NV08NS
LCD Shape
480*640
Backlight
150nits
Surface Luminance
3.5inch
LCD TYPE
TFT/TRANSFLECTIVE
Viewing Direction
All
LCM Interface
SPI+18BIT RGB
LCD Driver IC
HX8363-A
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

这里可以自定义设置
Pin No.SymbolDescription
1DEData input enable
2~4GNDPower Ground
5NCNo connect
6~11R0~R5Red data
12~17G0~G5Green data
18~23B0~B5Blue data
24SCLSerial clock input
25SDAData output pin in serial interface
26/CSChip select pin
27DOTCLKDot-clock signal and oscillator source
28/RESETSystem reset pin
29HSYNCHorizontal sync signal
3VSYNCVertical sync signal
31~32VCCPower supply
33GNDPower Ground
34LED_AAnode of LED backlight
35LED_KCathode of LED backlight
36GNDPower Ground
37~40NCNo connect

Item

Dimension

Unit

Size3.5inchinch
Dot Matrix480*RGB*640(TFT)dots
Module dimension64*85*3mm
Active area53.57*71.42mm
Dot pitch0.1116*0.1116mm
LCD typeTFT/TRANSMISSIVE
View DirectionAll
Gray Scale Inversion Direction
Backlight TypeLED, Normally White
LCD Controller ICHX8363-A
Pcap Controller IC
LCD InterfaceSPI+18BIT RGB
Pcap Interface
Touch Panel
SurfaceANTI-GLARE

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature TOP-20
70
Storage TemperatureTST-30
80

Item

Symbol

Condition

Min

Typ

Max

Unit

Input PowerVCC
2.5 2.83.3V
Supply current (One LED)ILED


20mA
