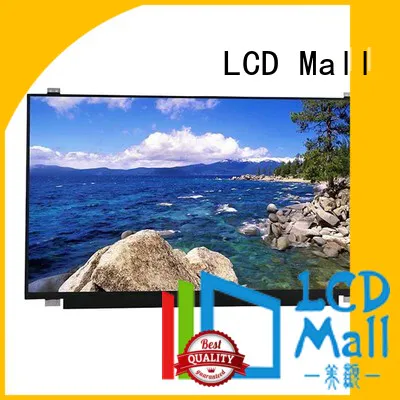

thermostat small tft lcd display wholesale for expo

Storage Temp
LM116NWU02NS
LCD Shape
1920 x 1080
Backlight
330
Surface Luminance
11.6inch
Viewing Direction
All
LCM Interface
EDP
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

这里可以自定义设置
No.SymbolDescription
1NCNo connect
2H-GNDHigh Speed Ground
3LANEI-NComplement Signal Link Lane 1
4LANEI-PTrue Signal Link Lane 1
5H-GNDHigh Speed Ground
6LAENO-NComplement Signal Link Lane 0
7LAENO-PTrue Signal Link Lane 0
8H-GNDHigh Speed Ground
9AUX-CH-NTrue Signal Auxiliary Channel
10AUX-CH-PComplement Signal Auxiliary Channel
11H-GNDHigh Speed Ground
12LCD-VDDLCD logic and driver power(3.3V)
13LCD-VDDLCD logic and driver power(3.3V)
14NCNo connect
15LCD-GNDLCD logic and driver ground
16LCD-GNDLCD logic and driver ground
17HPDHPD signal pin
18BL-GNDBacklight ground
19BL-GNDBacklight ground
20BL-GNDBacklight ground
21BL-GNDBacklight ground
22BL-ENABLEBacklight ON/OFF
23BL-PWM-DIMSystem PWM
24NCNo connect
25NCNo connect
26BL-PWRBacklight power
27BL-PWRBacklight power
28BL-PWRBacklight power
29BL-PWRBacklight power
30NCNo connect
ItemCONTENTSUNIT
Size 11.6 inchINCH
LCM (W x H x D) (mm) 263.40*157.22*2.80mm
Active Area(mm) 256.32*144.18mm
Pixel pitch (mm) 0.1335*0.1335mm
Resolution 1920(horizontal)*1080(Vertical)DOTS
Interface EDP
LCD type TFT/TRANSMISSIVE
Display colorNormally Black
Viewing DirectionALL
LCD Driver ICTBD
With /Without TSP Without TSP
LED Numbers 40 LEDs
Weight (g) TBD

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature TOP-10
60
Storage TemperatureTST-20
70

Item

Symbol

Condition

Min

Typ

Max

Unit

Input PowerVDD
3.0 3.33.6V
Current for LED BacklightIL


100mA
