DESCRIPTION

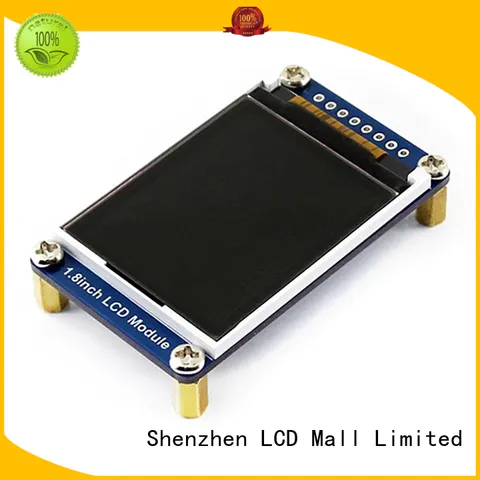

LM018PQQ01EN is a sunlight readable TFT LCD module with high brightness of 1000 cd/m2 (typical value). LM018PQQ01EN is a color TFT LCD with 128x160 resolution, diagonal size 1.77 inch. This TFT model is built in with ST7735S driver IC.LM018PQQ01EN supports 8-BIT MCU interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional.
The supply voltage for logic (VCC) of LM018PQQ01EN is from 2.5V to 4.8V, typical value 2.75V. It is featured with Glare surface panel, View Direction 6 o'clock, Gray scale inversion 12 o'clock, It can be operating at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. LCD-Mall’s sunlight readable TFT LCD is perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments, etc.
