DESCRIPTION

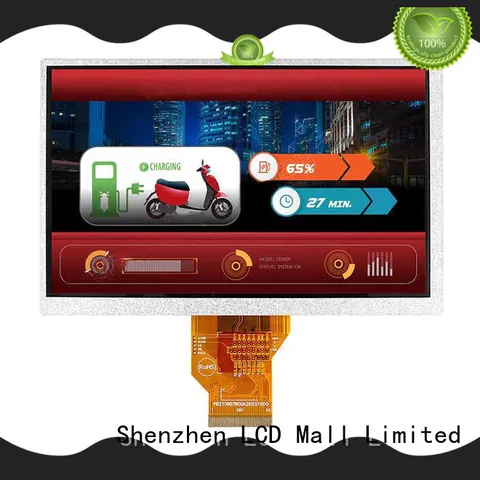

LM070SWV07ES is a sunlight readable TFT LCD module with high brightness of 1000 cd/m2 (typical value). LM070SWV07ES is a color TFT LCD with WVGA 800x480 resolution, diagonal size 7.0 inch. This TFT model is built in with EK9713+EK73002 driver IC.LM070SWV07ES supports 24-bit RGB interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional.

The supply voltage for logic (VCC) of LM070SWV07ES is from 3.0V to 3.6V, typical value 3.3V. It is featured with Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9.. It can be operating at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. LCD-Mall’s sunlight readable TFT LCD is perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments, etc.

DRAWING

LCM Mechanical Diagram

SPECIFICATIONS

No.	Symbol	Description
1-2	LED+	Anode of LED backlight
3-4	LED-	Cathode of LED backlight
5	GND	Power ground
6	VCOM	Common voltage
7	DVDD	Power for digital circuit
8	MODE	DE/SYNC mode select
9	DE	Data input enable
10	VS	Vertical sync input
11	HS	Horizontal sync input
12-19	B7-B0	Blue data
20-27	G7-G0	Green data
28-35	R7-R0	Red data
36	GND	Power Ground
37	DCLK	Sample clock
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20		70	℃
Storage Temperature	TST	-30		80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Input Power	VDD		3.0	3.3	3.6	V
Supply Current For LCM	IDD				30	mA
