TFT LCM is TFT LCD module, TFT means Thin Film Transistor, colorful display, it is the most popular and widely application display technology. TFT LCM structure is TFT LCD glass with polarizer, FOG assembly with LED backlight, bezel frame together.
Techopedia explains Thin-Film Transistor Liquid Crystal Display (TFT LCD)
Thin-film transistor liquid crystal display technology uses "field-effect" transistors, which are built by layering thin films (color filter) on a glass substrate, hence the name. This technique is commonly used for creating microprocessors. The TFT in the LCD controls individual pixels in the display by setting the level of the electric field across the three liquid crystal capacitors (one for each sub-pixel of red, green and blue) in the pixel in order to control the polarization of the crystal material. The amount of polarization in the crystal determines the amount of light that reaches the color filter from the backlight. Because of this ability to directly and quickly control each pixel, TFT is also called active-matrix LCD technology.
TFT: is a type of LCD with a thin film transistor attached to each pixel. All computer LCD screens are TFT since early 2000s; older ones had slower response times and poorer colour. Cost is now very good; power consumption is fairly good but dominated by the backlight. Has to be manufactured out of glass.
TFT LCD glass can be TN (normally white), IPS (normally black), LPTS, a-si technology. LCD Mall has many special TFT LCD like transflective TFT LCD, round TFT LCD, square TFT LCD, bar TFT LCD, Super wide Operation temperature -30C~+85C. We can do customer design to tooling TFT LCD glass, tooling TFT lcd mask as per project needing.
-
21.6 Inch 3840(RGB)×2160 40PIN EDP Interface AM-OLED panel module -

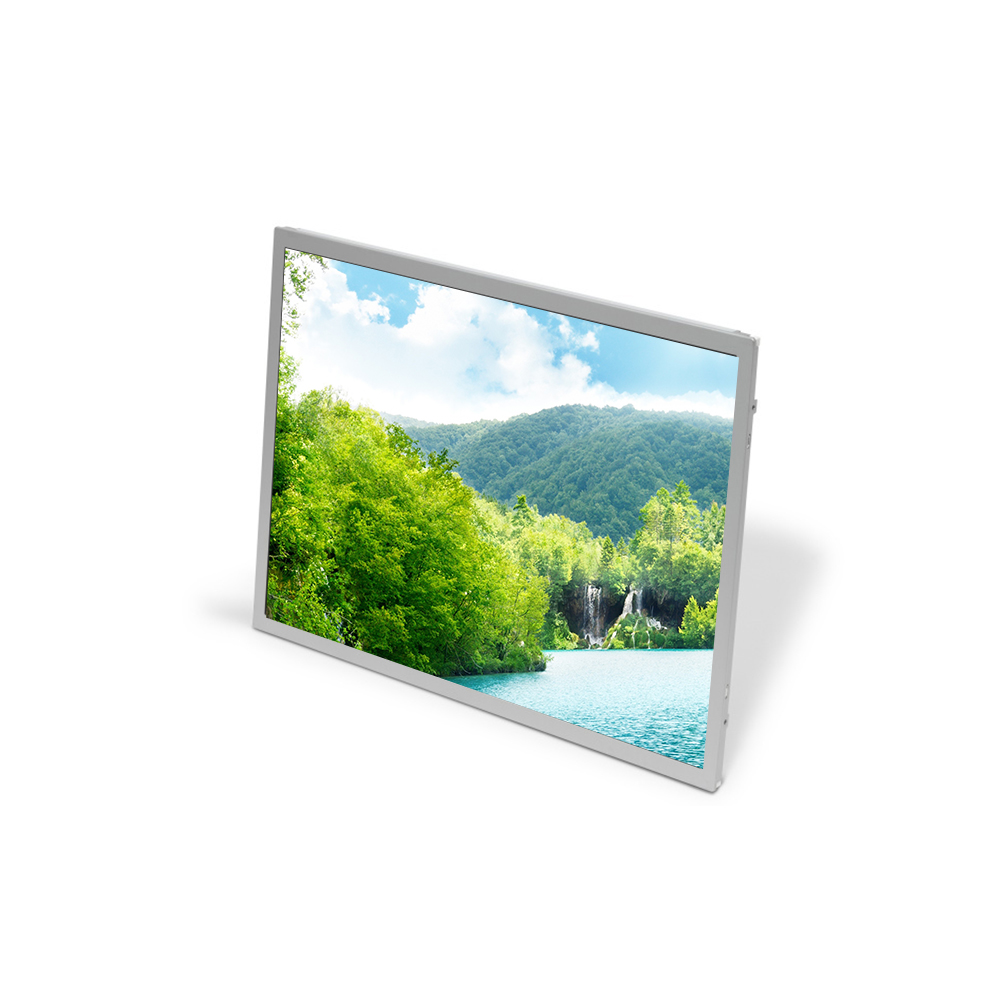

SHARP 15 Inch TFT LCD Display Screen 1024(RGB)×768 TFT LCD paneI -
7 Inch TFT LCD Module 1024*600 40pin RGB Interface LCD Screen Display with CTP UV/AG -
9.99 Inch 720*1600 LCD Display 30pin MIPI Interface Ultra-high Brightness Backlight LCD Screen with Positioning Nut -
7 Inch TFT LCD Module 1024*600 40pin RGB Interface LCD Screen Display with CTP UV/AG -
1.54 Inch TFT LCD Module 240*RGB*240 4Line-SPI Interface LCD Screen Display with CTP -
4.3 Inch Portrait TFT LCD Module 480*800 MIPI+RGB Interface LCD Screen Display with CTP -
SPI/MPU/MIPI/RGB Multi Interface Display LCD Screen 3.5 Inch 320*480 ultra Bright Backlit TFT LCD Module with CTP -
15.6 Inch TFT Panel 1920*1080 Resolution 550nits LVDS 40pin Interface TFT LCD Module -
15.6 Inch 1920*1080 Resolution 450nits EDP Interface TFT LCD Display -
7 Inch 1024*600 High Brightness Backlight 40pin LVDS+GT911 TFT LCD Module With CTP -
7 Inch 1024*600 High Resolution 40pin LVDS+GT911 TFT LCD Module With CTP -
7 Inch 1024*600 High Resolution 30pin MIPI+GT911 TFT LCD Module With CTP -
7.0 Inch 1024*600 40pin LVDS TFT LCD Module -
1.46 Inch Round 360*360 SPI Interface TFT LCD Module -
5 Inch 800*480 RGB Interface TFT LCD Module -
10.4 inch TFT LCD Display Full Viewing 1024*768 High Resolution 500nits 30pin LVDS Interface TFT LCD ModuleThis 10.4-inch TFT LCD display module offers a high-resolution 1024x768 pixels screen, delivering clear and sharp images. With a brightness of 500 nits, the display ensures excellent visibility even in bright environments. The module supports a full viewing angle, enhancing the user experience from various perspectives. Equipped with a 30-pin LVDS interface, this LCD module is ideal for industrial and commercial applications where high-performance visual displays are required. -
3.5 inch TN TFT LCD Module 320*240 300nits 40pin 24bit RGB+SPI Interface TFT LCD Display For Smart HomeThis compact and high-performance 3.5-inch TFT LCD display features a resolution of 320x240, providing clear visuals in a compact form factor, making it perfect for space-constrained smart home applications. With a brightness of 300 nits, it ensures vivid and clear image quality in a wide range of lighting conditions. The display uses a 40-pin interface with support for both 24-bit RGB and SPI communication, allowing easy integration with various microcontrollers or embedded systems. -
2.4 inch Portrait TFT LCD Display 240*320 Resolution 400nits Brightness 45pin RGB Interface TFT LCD Module For SmartwatchThe 2.4 inch Portrait TFT LCD display offers a 240x320 resolution, providing clear and crisp visuals for compact devices like smartwatches. With a brightness of 400nits, it ensures good visibility in various lighting conditions, enhancing user experience. This display features a 45 pin RGB interface, ensuring seamless connection and reliable data transmission between the screen and the device. Its small form factor makes it an ideal choice for wearable technology, offering both efficient power consumption and high-quality graphics. Whether for notifications, fitness tracking, or timekeeping, this display module is designed for optimal performance in modern smartwatches. -
7.0 inch Landscape TFT LCD Module 800*480 Resolution 300nits 50pin RGB 24bit Interface TFT LCD Display For Car DsipalyDiscover high-definition clarity and vivid color with our 7.0 inch TFT LCD Module designedspecifically for automotive displays. This 800x480 resolution screen delivers crisp, sharpvisuals, while its 300-nit brightness ensures visibility in a wide range of lighting conditionsEquipped with a 50-pin RGB 24-bit interface, this display offers smooth integration withvarious vehicle systems and industrial applications. Built for durability and reliability, this TFTLCD module provides an ideal solution for car displays, GPS navigation systems, and otherembedded applications requiring robust, high-performance visuals. -
1.3 inch Square TFT Display Module 350nits 240*240 Driver IC ST7789 SPl interface LCD Display Panle For Wearable DevicesDiscover the 1.3-inch Square TFT Display Module, designed for high-performance wearable devices. With a resolution of 240x240 pixels and 350 nits brightness, it delivers clear and vibrant visuals. Equipped with the ST7789 driver IC and SPI interface, this module ensures seamless integration and exceptional display quality
